Description

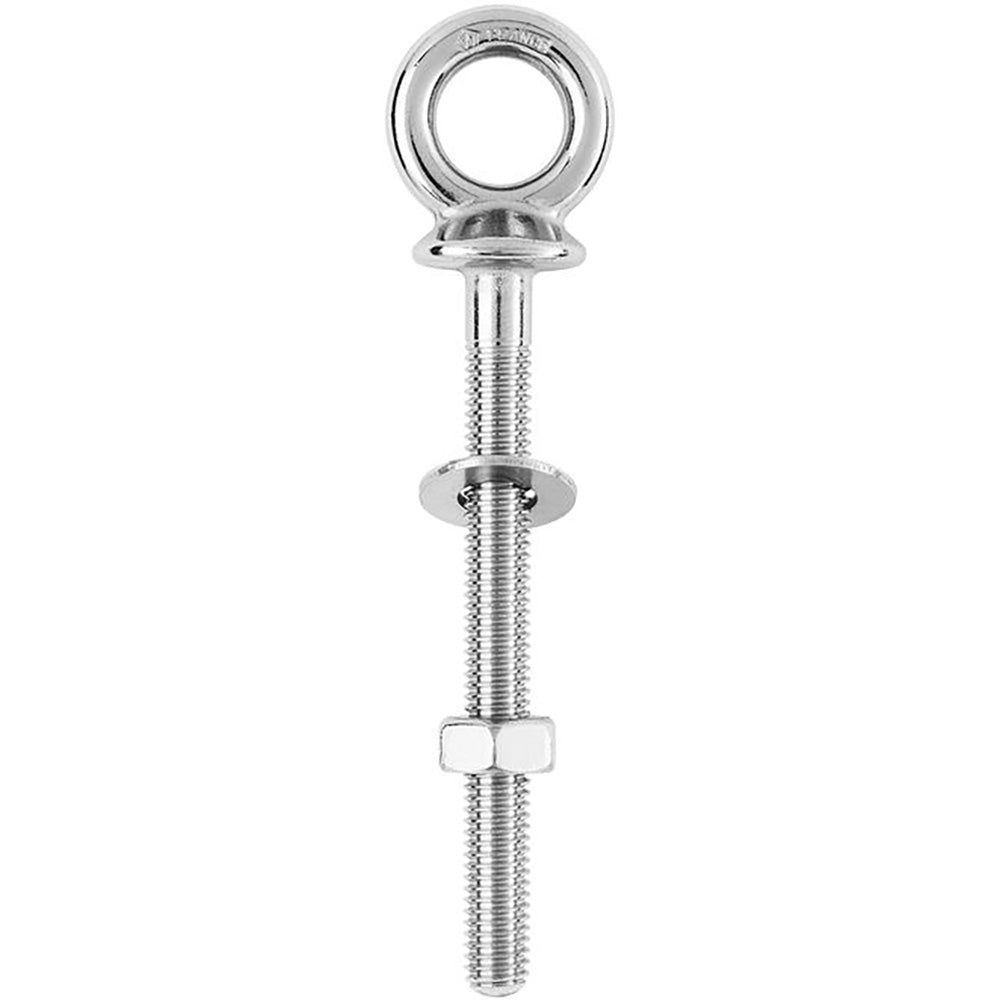

Eye Bolt - M12 x 175mm - Length 120mm

Features:

A complete range of single piece forged products for fastenings applications
Outstanding working and breaking loads
Available in different sizes
Max tightening torque: 60 Nm

Applications:

Various fastening applications
Towing application
Waterskiing lines attachment

Specifications:

Materials: 316L stainless steel grade
Working load: (lb) 5290 / (kg) 2400
Breaking load: (lb) 7710 / (kg) 3500
Weight: (lb) 0.359 / (g) 163

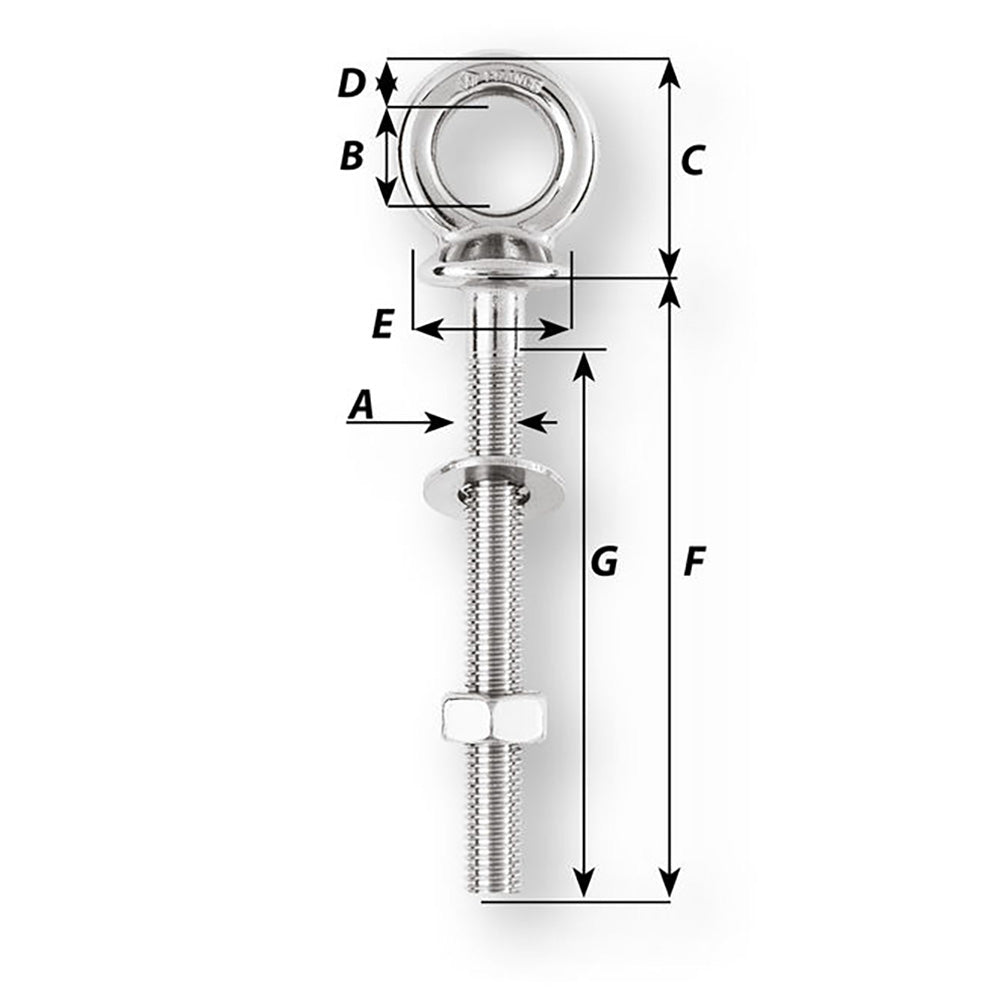

Dimensions:

A: (mm) M12 x 175
B: (inch) 45/64" / (mm) 18
C: (inch) 1 39/64" / (mm) 41
D: (inch) 5/16" / (mm) 8
E: (inch) 1 7/64" / (mm) 28
F: (inch) 4 23/32" / (mm) 120
G: (inch) 4 9/64" / (mm) 105

Caption:

Working Load (WL): For nautical applications
Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual
