Wichard Eye Strap - 4mm Diameter - 5/32" - 30mm Spacing - 1-17/64 [9201W]

Name: Wichard Eye Strap - 4mm Diameter - 5/32" - 30mm Spacing - 1-17/64 [9201W]
Brand: Wichard Marine
SKU: EM-97698
Price: 11.27 USD
Availability: InStock

$11.27 $13.26

Refund & Return Policy

Returns are accepted within 30 days after shipment. To be eligible for a return, items must be unused, uninstalled, and in their original packaging, and proof of purchase is required. Installed or used products, clearance or final-sale items are not eligible for return. Return Merchandise Authorization (RMA) numbers are required for all returns. Learn more.

Shipping Policy

Egret Marine ships marine parts and accessories within the continental United States only. Orders are processed same day if placed before 3pm CST. or within 1 business days if placed after 3pm CST, excluding weekends and holidays. Learn more.

Description

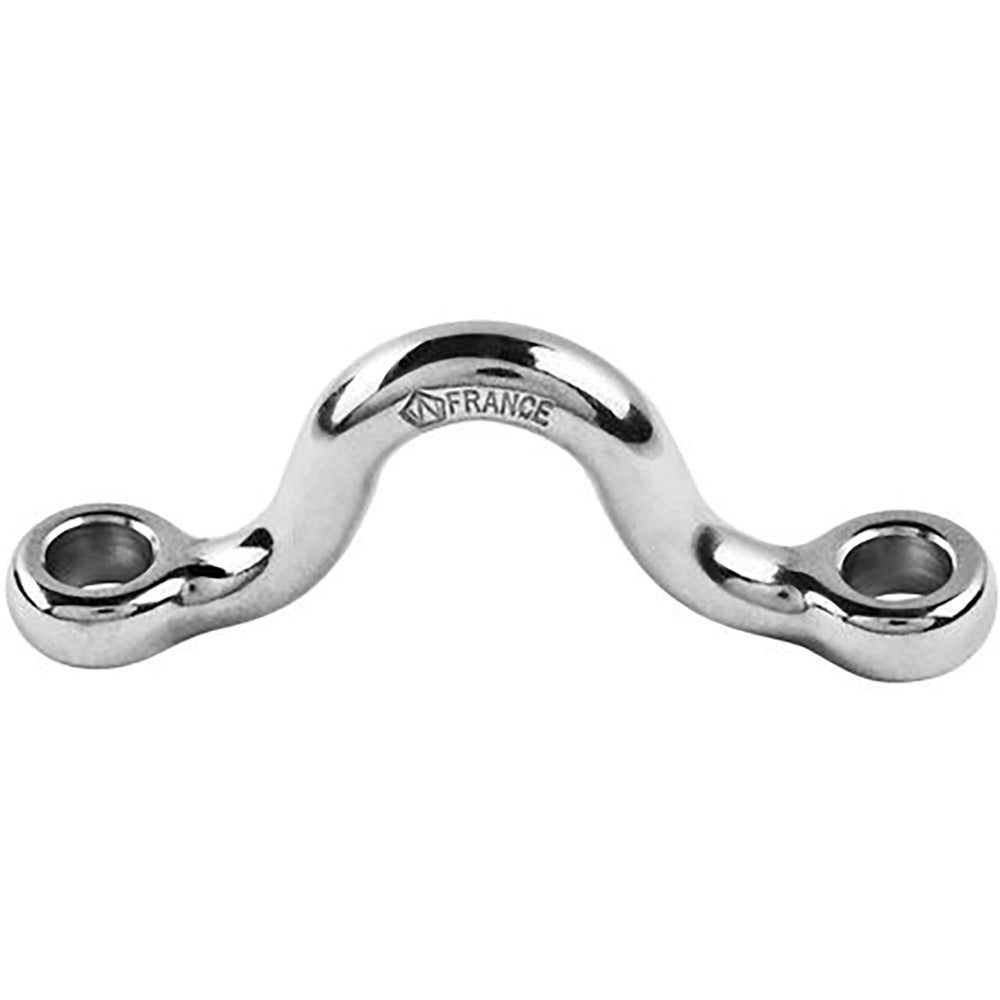

Eye Strap - 4mm Diameter - 5/32" - 30mm Spacing - 1-17/64"

Features:

Complete range of drop-forged saddles with high-quality stainless steel (316L)
Outstanding strength
The round shape reduces the wear of the components connected to them (straps, ropes...)

Applications:

Fastening applications
Attachment of straps & cordage

Specifications:

Materials: 316L stainless steel grade
Breaking load: (lb) 1430 / (kg) 650
Weight: (lb) 0.009 / (g) 4

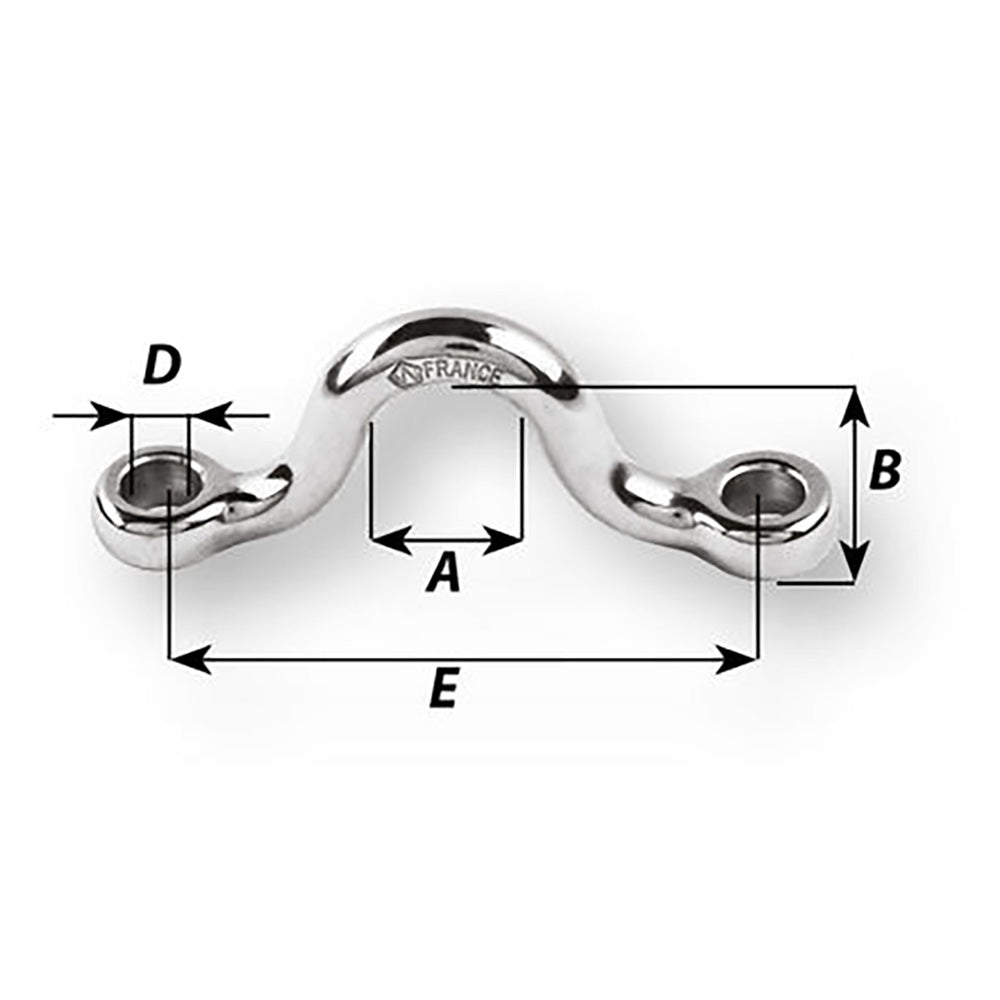

Dimensions:

A: (inch) 5/16" / (mm) 8
B: (inch) 7/16" / (mm) 11
D diameter: (inch) 5/32" / (mm) 4
E: (inch) 1 17/64" / (mm) 32

Caption:

Working Load (WL): For nautical applications
Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

Quick Guide (pdf)
