Wichard HR Bow Shackle - 20mm Diameter - 25/32" [11248W]

Name: Wichard HR Bow Shackle - 20mm Diameter - 25/32" [11248W]
Brand: Wichard Marine
SKU: EM-97715
Price: 727.05 USD
Availability: InStock

$727.05 $855.35

Refund & Return Policy

Returns are accepted within 30 days after shipment. To be eligible for a return, items must be unused, uninstalled, and in their original packaging, and proof of purchase is required. Installed or used products, clearance or final-sale items are not eligible for return. Return Merchandise Authorization (RMA) numbers are required for all returns. Learn more.

Shipping Policy

Egret Marine ships marine parts and accessories within the continental United States only. Orders are processed same day if placed before 3pm CST. or within 1 business days if placed after 3pm CST, excluding weekends and holidays. Learn more.

Description

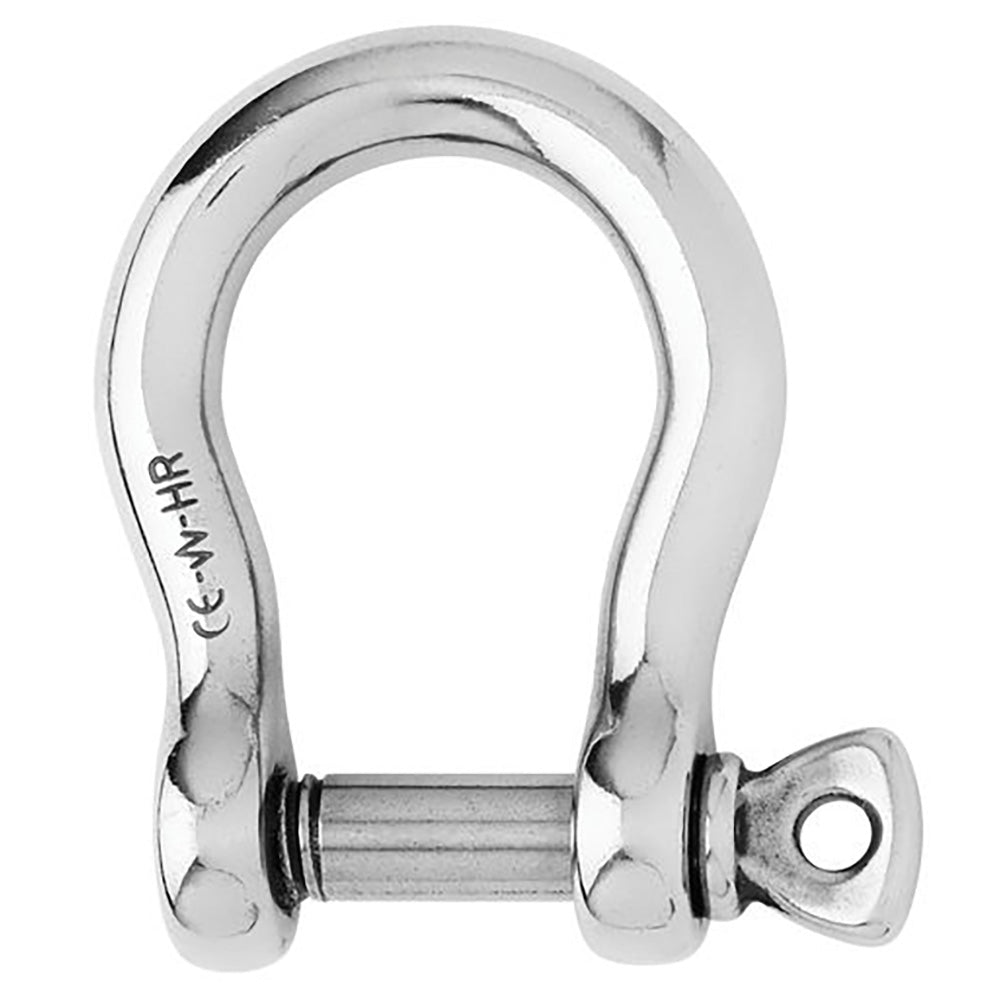

HR Bow Shackle - 20mm Diameter - 25/32"

Features:

Forged bow shackle in HR stainless steel grade (17,4 PH)
Outstanding working and breaking load
An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
WLL: only for industrial applications (lifting i.e…)
CE marking

Applications:

Applications requesting high loads
To be used when ample room is required
Possibility to attach several lines or cables
Do not use it for mooring applications

Specifications:

Materials: HR 17.4 PH stainless steel grade
Working load: (lb) 19400 / (kg) 8800
WLL: (lb) 12340 / (kg) 5600
Breaking load: (lb) 61720 / (kg) 28000
Weight: (lb) 2.229 / (kg) 1.011

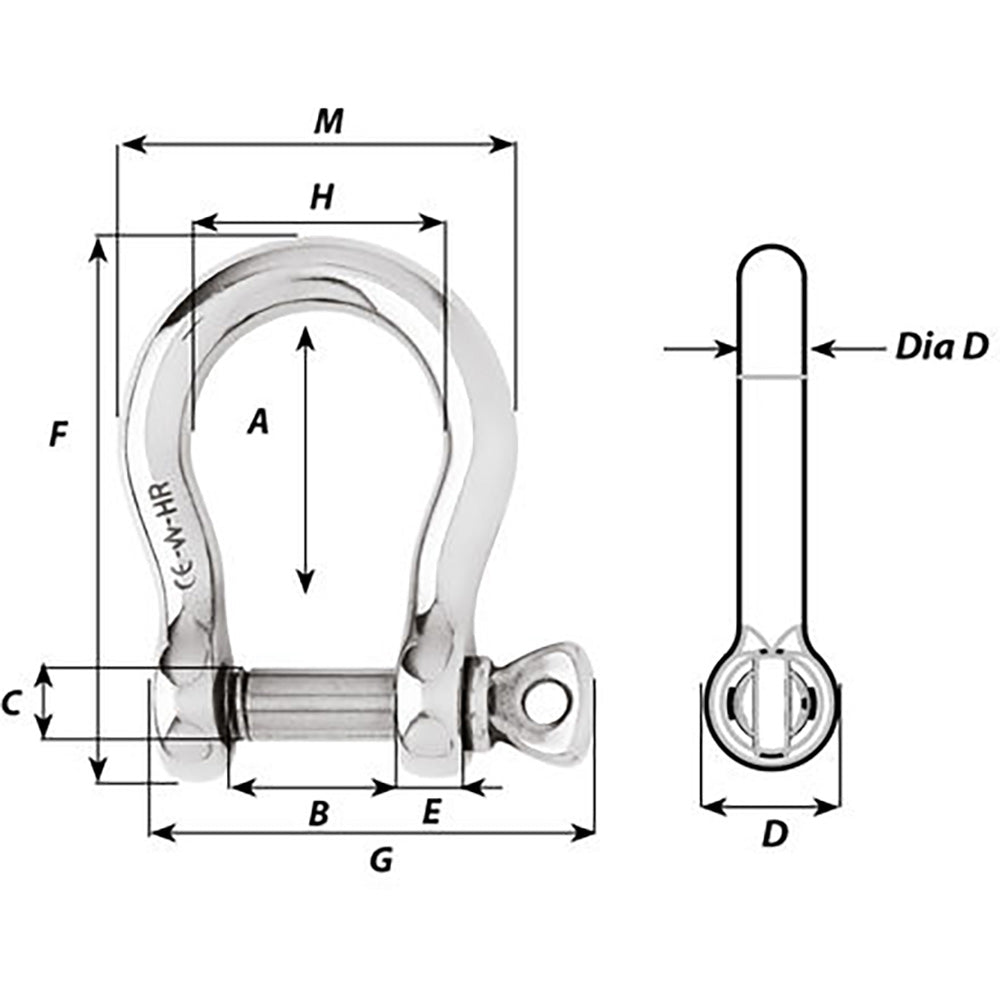

Dimensions:

A: (inch) 3 5/32" / (mm) 80
B: (inch) 1 37/64" / (mm) 40
C: (inch) 25/32" / (mm) 20
D: (inch) 1 37/64" / (mm) 40
D diameter: (inch) 25/32" / (mm) 20
E: (inch) 45/64" / (mm) 18
M: (inch) 3 15/16" / (mm) 100

Caption:

Working Load (WL): For nautical applications
Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
High Resistance (HR)

*Sold as an Individual

Quick Guide (pdf)
