Wichard HR D Shackle - 14mm Diameter - 35/64" [11207W]

Name: Wichard HR D Shackle - 14mm Diameter - 35/64" [11207W]
Brand: Wichard Marine
SKU: EM-97706
Price: 323.20 USD
Availability: InStock

$323.20 $380.23

Refund & Return Policy

Returns are accepted within 30 days after shipment. To be eligible for a return, items must be unused, uninstalled, and in their original packaging, and proof of purchase is required. Installed or used products, clearance or final-sale items are not eligible for return. Return Merchandise Authorization (RMA) numbers are required for all returns. Learn more.

Shipping Policy

Egret Marine ships marine parts and accessories within the continental United States only. Orders are processed same day if placed before 3pm CST. or within 1 business days if placed after 3pm CST, excluding weekends and holidays. Learn more.

Description

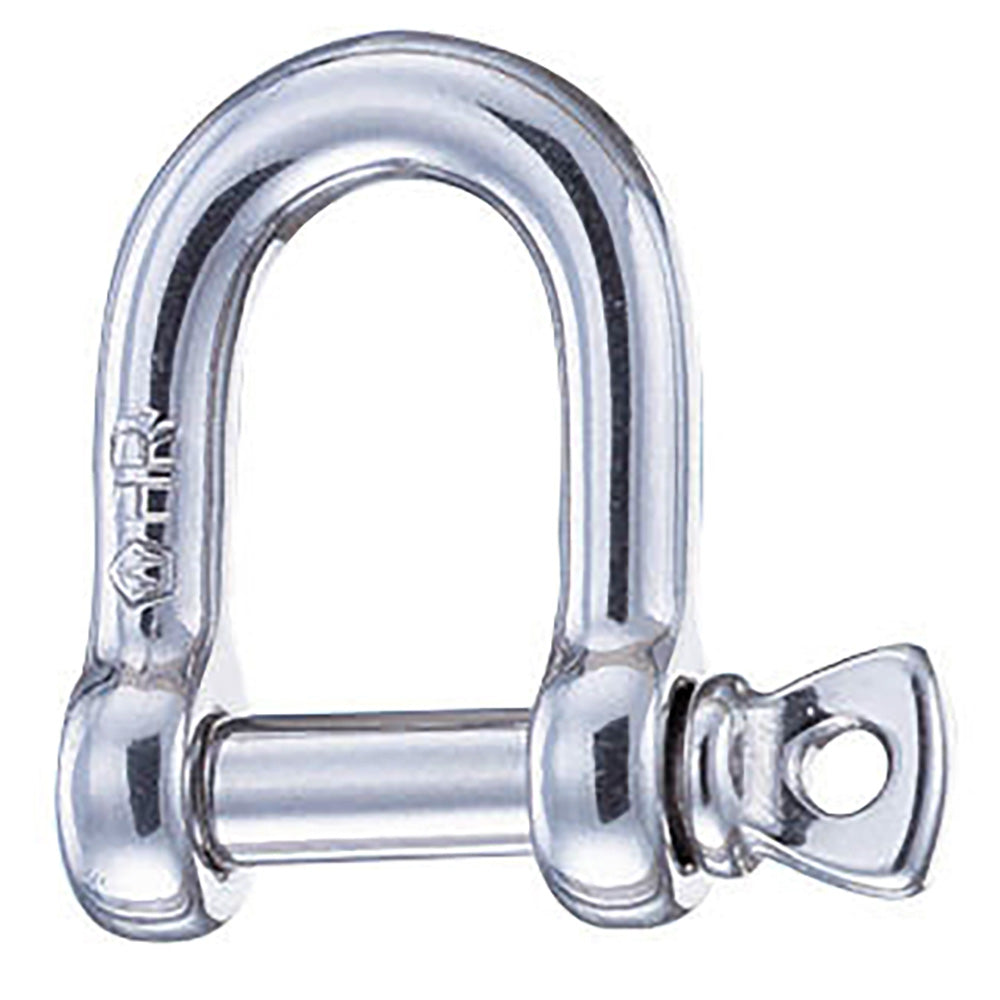

HR D Shackle - 14mm Diameter - 35/64"

Features:

Forged D shackle in HR stainless steel grade (17,4 PH)
Outstanding working and breaking load
An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
WLL: only for industrial applications (lifting i.e…)
CE marking

Applications:

Applications requesting high loads
Standard applications of the shackle
Attachment applications: blocks, head …
Do not use it for mooring applications

Specifications:

Materials: HR 17.4 PH stainless steel grade
Working load: (lb) 11280 / (kg) 5120
WLL: (lb) 5290 / (kg) 2400
Breaking load: (lb) 26450 / (kg) 12000
Weight: (lb) 0.67 / (g) 304

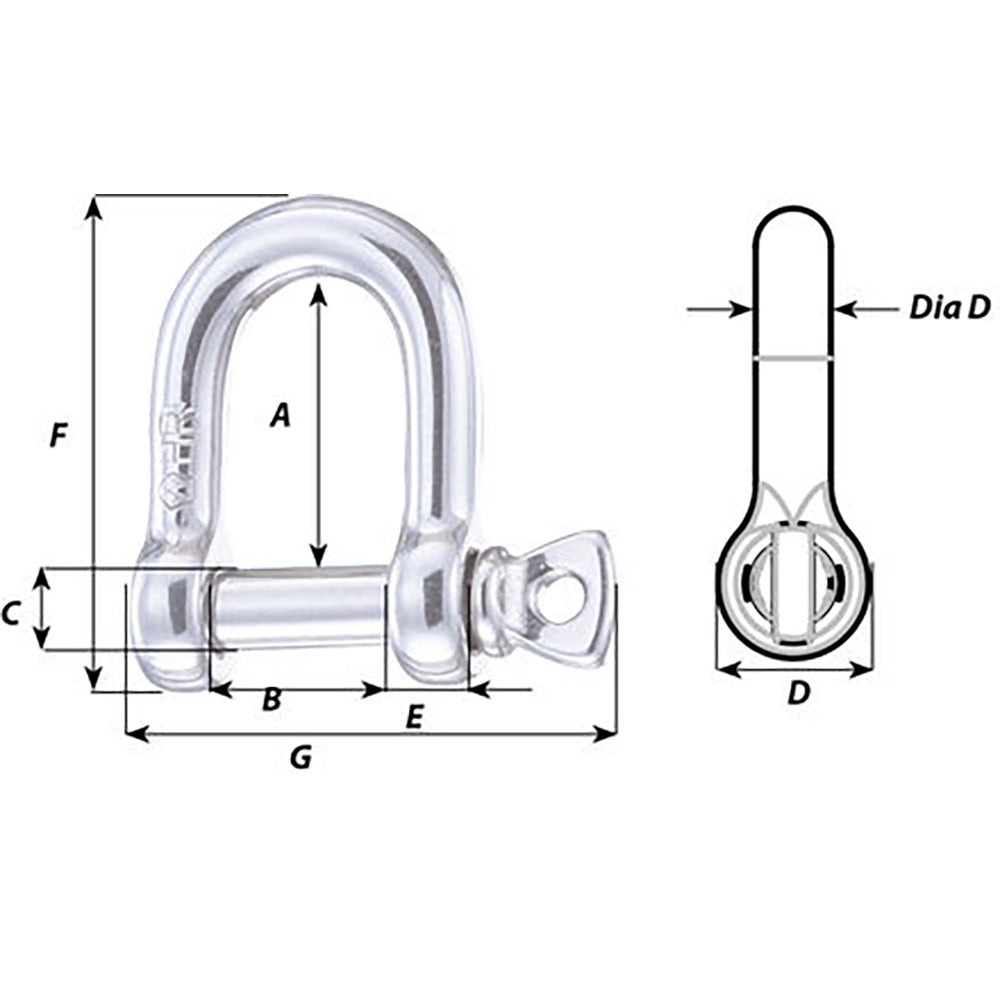

Dimensions:

A: (inch) 1 59/64" / (mm) 49
B: (inch) 1 7/64" / (mm) 28
D diameter: (inch) 35/64" / (mm) 14

Caption:

Working Load (WL): For nautical applications
Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
High Resistance (HR)

*Sold as an Individual

Quick Guide (pdf)
