Wichard HR Quick Release Snap Shackle With Large Bail -145mm Length - 5-45/64" [2777W]

Name: Wichard HR Quick Release Snap Shackle With Large Bail -145mm Length - 5-45/64" [2777W]
Brand: Wichard Marine
SKU: EM-97666
Price: 431.18 USD
Availability: InStock

$431.18 $507.27

Refund & Return Policy

Returns are accepted within 30 days after shipment. To be eligible for a return, items must be unused, uninstalled, and in their original packaging, and proof of purchase is required. Installed or used products, clearance or final-sale items are not eligible for return. Return Merchandise Authorization (RMA) numbers are required for all returns. Learn more.

Shipping Policy

Egret Marine ships marine parts and accessories within the continental United States only. Orders are processed same day if placed before 3pm CST. or within 1 business days if placed after 3pm CST, excluding weekends and holidays. Learn more.

Description

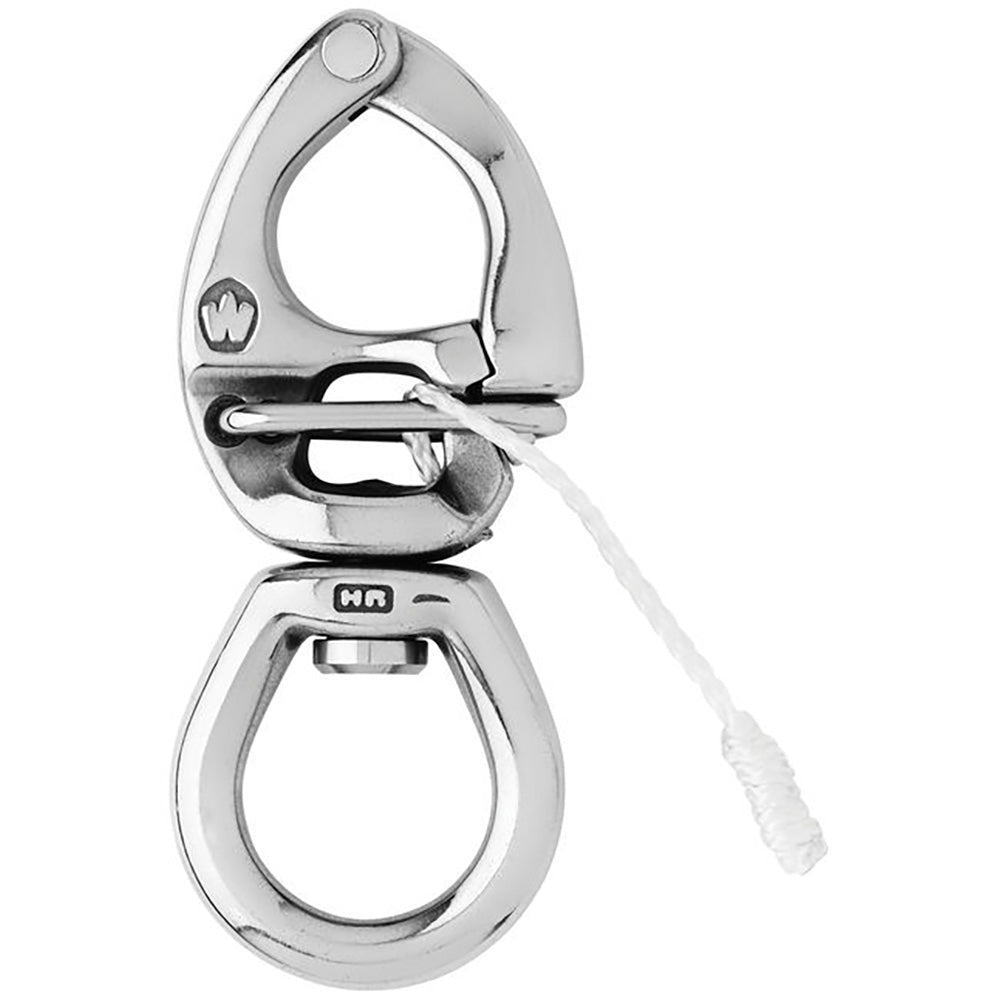

HR Quick Release Snap Shackle With Large Bail -145mm Length - 5-45/64"

Features:

HR forged (17.4 PH) quick-release snap shackle with large bail
The opening is made by pulling the lanyard
Perfect to attach several lines (spinnaker sheets...)
Outstanding working and breaking loads
Free rotation of the snap shackle thanks to the swivel

Applications:

For spinnaker operations
Perfect to attach several lines: spinnaker sheets...

Specifications:

Materials: HR 17.4 PH stainless steel grade
Working load: (lb) 6170 / (kg) 2800
Breaking load: (lb) 13880 / (kg) 6300
Weight: (lb) 0.873 / (g) 396

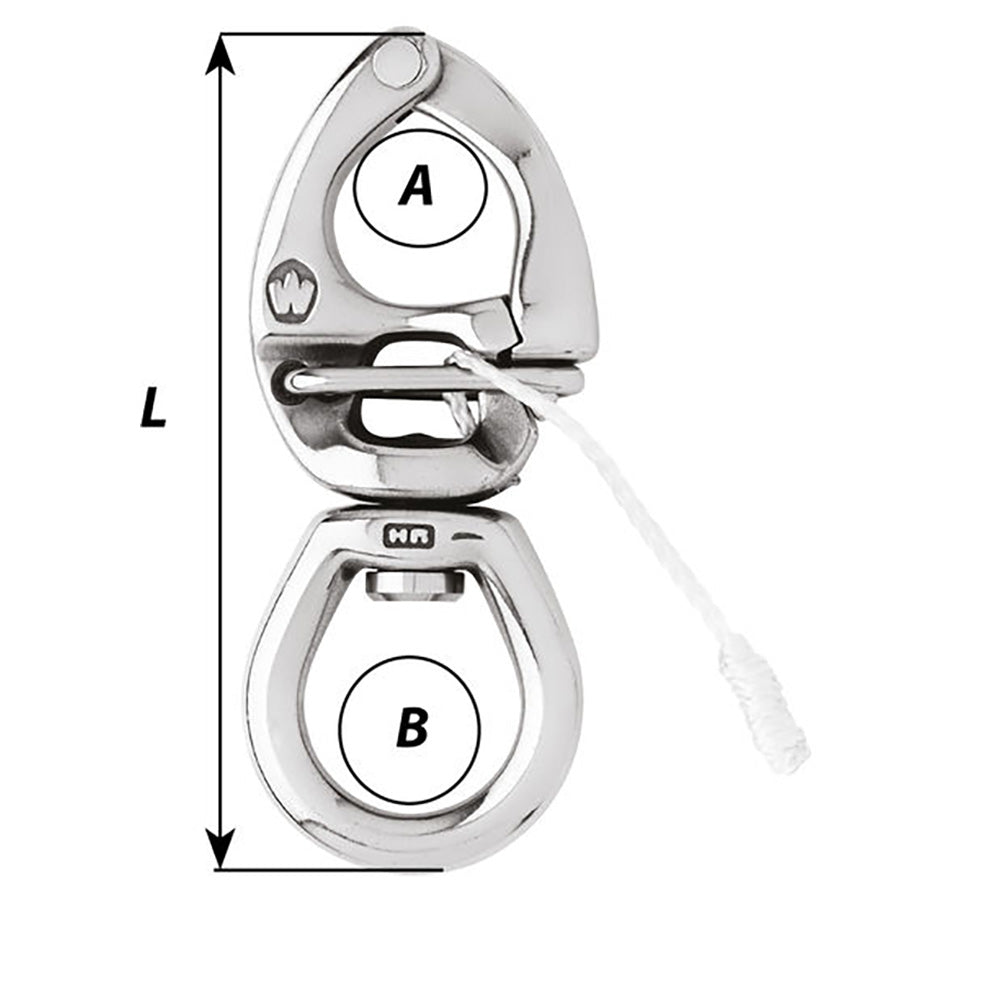

Dimensions:

A: (inch) 1 3/16" / (mm) 30
B: (inch) 1 25/64" / (mm) 35.5
Length: (inch) 5 45/64" / (mm) 145

Caption:

Working Load (WL): For nautical applications
Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
High Resistance (HR)

*Sold as an Individual

Quick Guide (pdf)
