Wichard HR Quick Release Snap Shackle With Swivel Eye -110mm Length- 4-21/64" [2676W]

Name: Wichard HR Quick Release Snap Shackle With Swivel Eye -110mm Length- 4-21/64" [2676W]
Brand: Wichard Marine
SKU: EM-97660
Price: 261.23 USD
Availability: InStock

$261.23 $307.33

Refund & Return Policy

Returns are accepted within 30 days after shipment. To be eligible for a return, items must be unused, uninstalled, and in their original packaging, and proof of purchase is required. Installed or used products, clearance or final-sale items are not eligible for return. Return Merchandise Authorization (RMA) numbers are required for all returns. Learn more.

Shipping Policy

Egret Marine ships marine parts and accessories within the continental United States only. Orders are processed same day if placed before 3pm CST. or within 1 business days if placed after 3pm CST, excluding weekends and holidays. Learn more.

Description

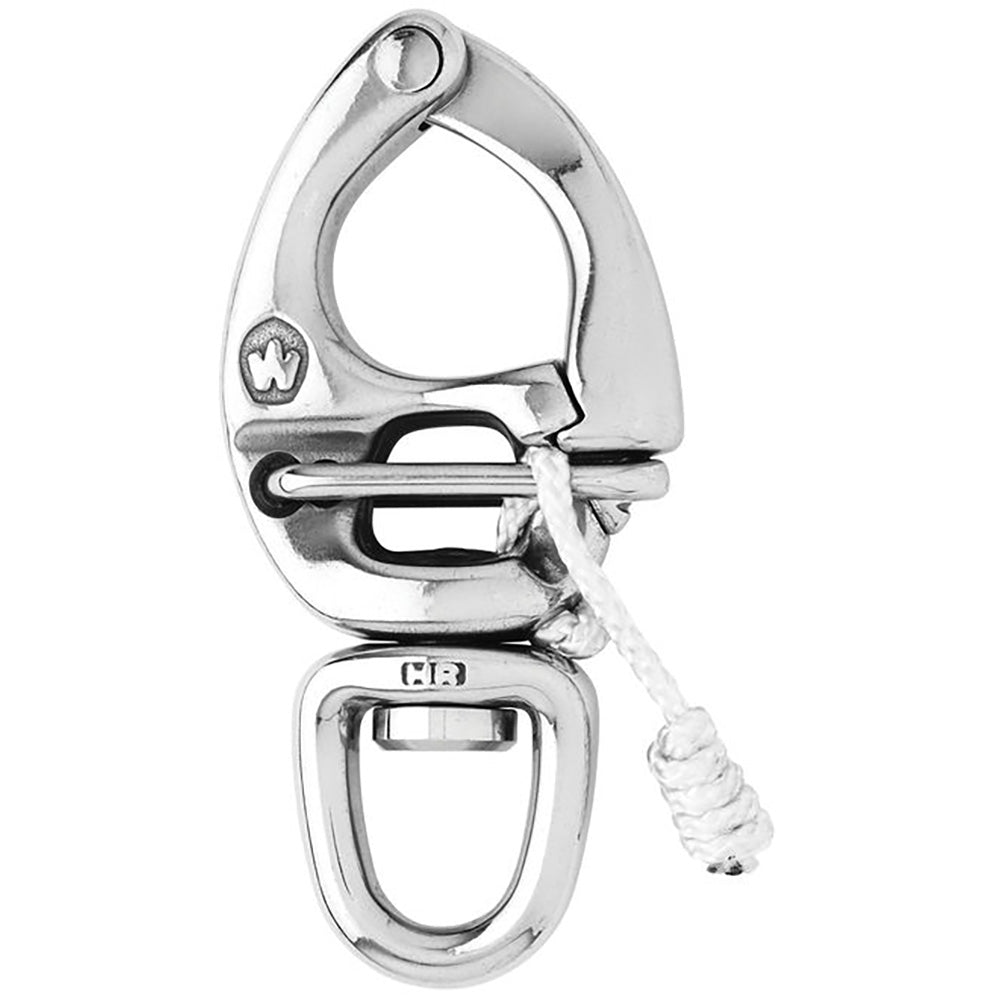

HR Quick Release Snap Shackle With Swivel Eye -110mm Length- 4-21/64"

Features:

HR forged (17.4 PH) quick-release snap shackle with swivel eye
The opening is made by pulling the lanyard
Perfect to attach one sheet or halyard
Outstanding working and breaking loads
Free rotation of the snap shackle thanks to the swivel

Applications:

For spinnaker operations
Perfect for spinnaker sheets and halyards

Specifications:

Materials: HR 17.4 PH stainless steel grade
Working load: (lb) 5290 / (kg) 2400
Breaking load: (lb) 9250 / (kg) 4200
Weight: (lb) 0.514 / (g) 233

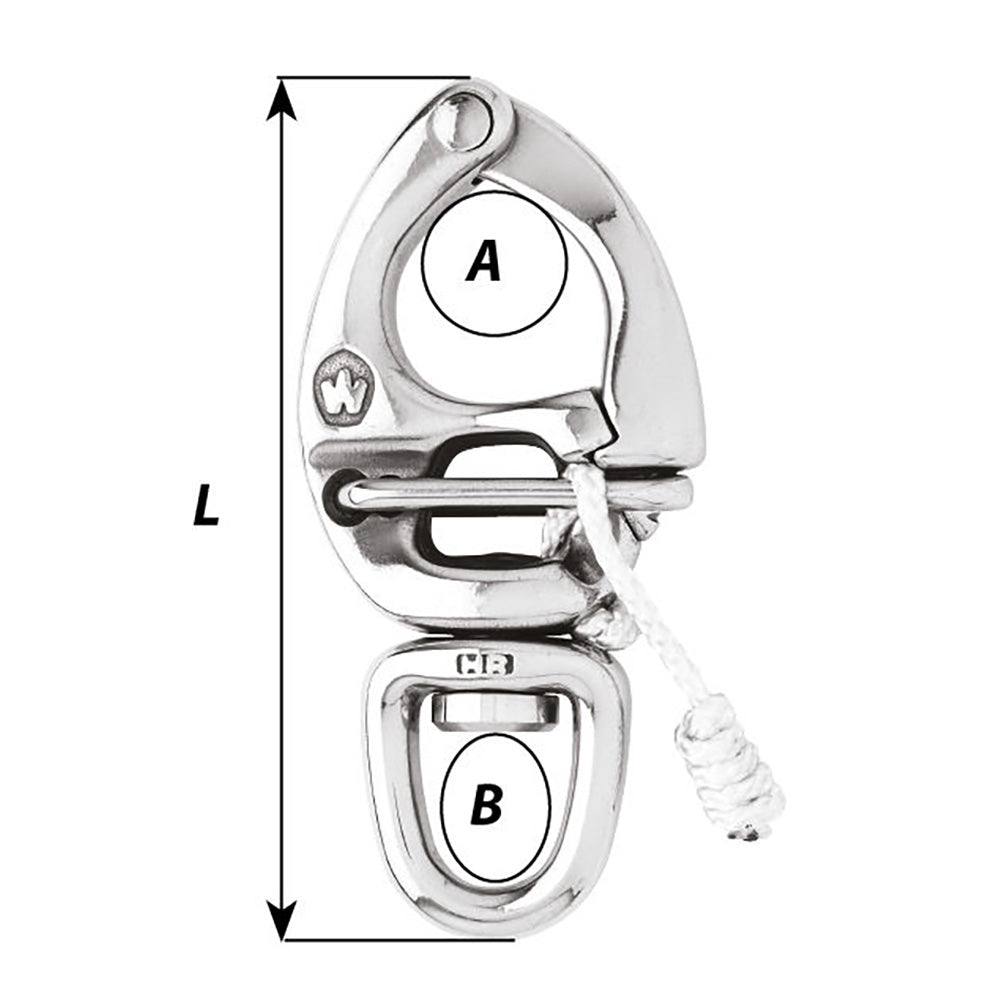

Dimensions:

A: (inch) 63/64" / (mm) 25
B: (inch) 5/8" / (mm) 16
Length: (inch) 4 21/64" / (mm) 110

Caption:

Working Load (WL): For nautical applications
Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
High Resistance (HR)

*Sold as an Individual

Quick Guide (pdf)
