Wichard Round Pad Eye - 57mm Diameter (2-1/4") - Fixed [6635W]

Name: Wichard Round Pad Eye - 57mm Diameter (2-1/4") - Fixed [6635W]
Brand: Wichard Marine
SKU: EM-99734
Price: 79.25 USD
Availability: InStock

$79.25 $93.23

Refund & Return Policy

Returns are accepted within 30 days after shipment. To be eligible for a return, items must be unused, uninstalled, and in their original packaging, and proof of purchase is required. Installed or used products, clearance or final-sale items are not eligible for return. Return Merchandise Authorization (RMA) numbers are required for all returns. Learn more.

Shipping Policy

Egret Marine ships marine parts and accessories within the continental United States only. Orders are processed same day if placed before 3pm CST. or within 1 business days if placed after 3pm CST, excluding weekends and holidays. Learn more.

Description

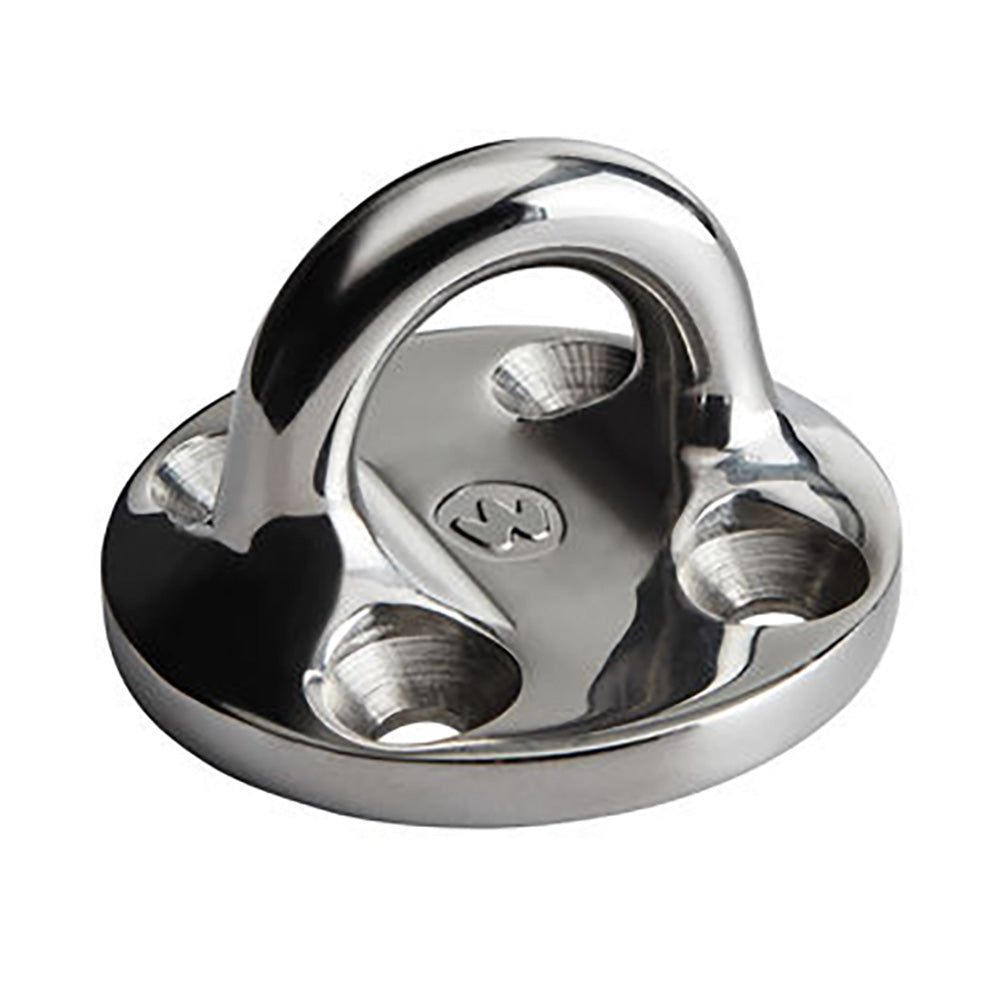

Round Pad Eye - 57mm Diameter (2-1/4") - Fixed

This fixed rounded pad-eye completes the range of fixed pad eyes and thus it can suit any user scenario. For example, it can be used for reefing blocks and fastening points on bowsprits and blocks. Made from duplex stainless steel, it offers excellent mechanical strength for its corrosion resistance. For M6 screws.

Applications:

Reefing blocks
Fastening points on the bowsprit
Blocks fastening

Specifications:

Materials: Duplex stainless steel grade
Weight: (lb) 0.331 / (g) 150
W.L 1 (90 degrees): (lb) 5070.6 / (kg) 2300
W.L 2 (45 degrees): (lb) 4519.4 / kg 2050
W.L 3 (0 degrees): (lb) 4299 / kg 1950
B.L 1 (90 degrees): (lb) 10031 / kg 4550
B.L 2 (45 degrees): (lb) 9038.9 / kg 4100
B.L 3 (0 degrees): (lb) 8598 / kg 3900

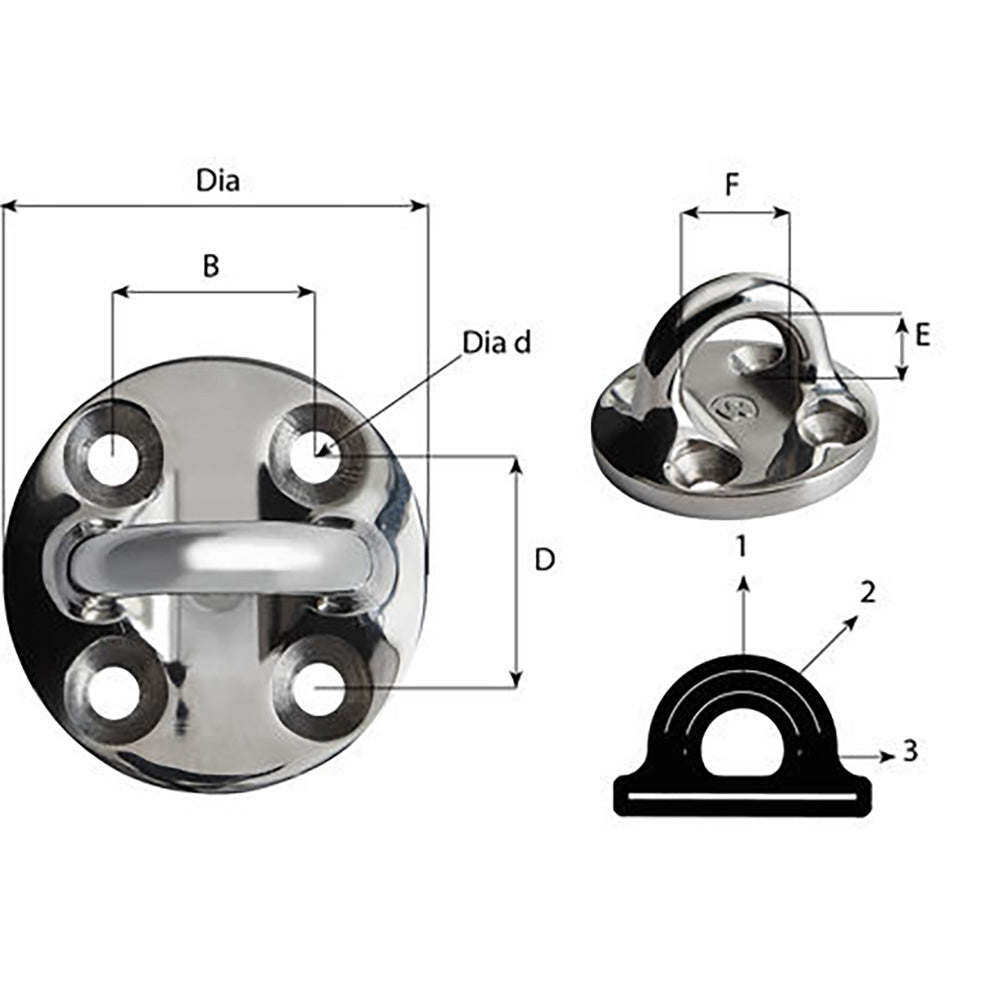

Dimensions:

A: (inch) 2 1/4" / (mm) 57
B: (inch) 1 1/16" / (mm) 27
D: (inch) 1 3/16" / (mm) 30
E: (inch) 3/4" / (mm) 19
F: (inch) 55/64" / (mm) 22

Caption:

Working Load (WL): For nautical applications
Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

Quick Guide (pdf)
