Wichard Self-Locking Long D Shackle - 10mm Diameter - 13/32" [1215W]

Name: Wichard Self-Locking Long D Shackle - 10mm Diameter - 13/32" [1215W]
Brand: Wichard Marine
SKU: EM-97630
Price: 67.60 USD
Availability: InStock

$67.60 $79.53

Refund & Return Policy

Returns are accepted within 30 days after shipment. To be eligible for a return, items must be unused, uninstalled, and in their original packaging, and proof of purchase is required. Installed or used products, clearance or final-sale items are not eligible for return. Return Merchandise Authorization (RMA) numbers are required for all returns. Learn more.

Shipping Policy

Egret Marine ships marine parts and accessories within the continental United States only. Orders are processed same day if placed before 3pm CST. or within 1 business days if placed after 3pm CST, excluding weekends and holidays. Learn more.

Description

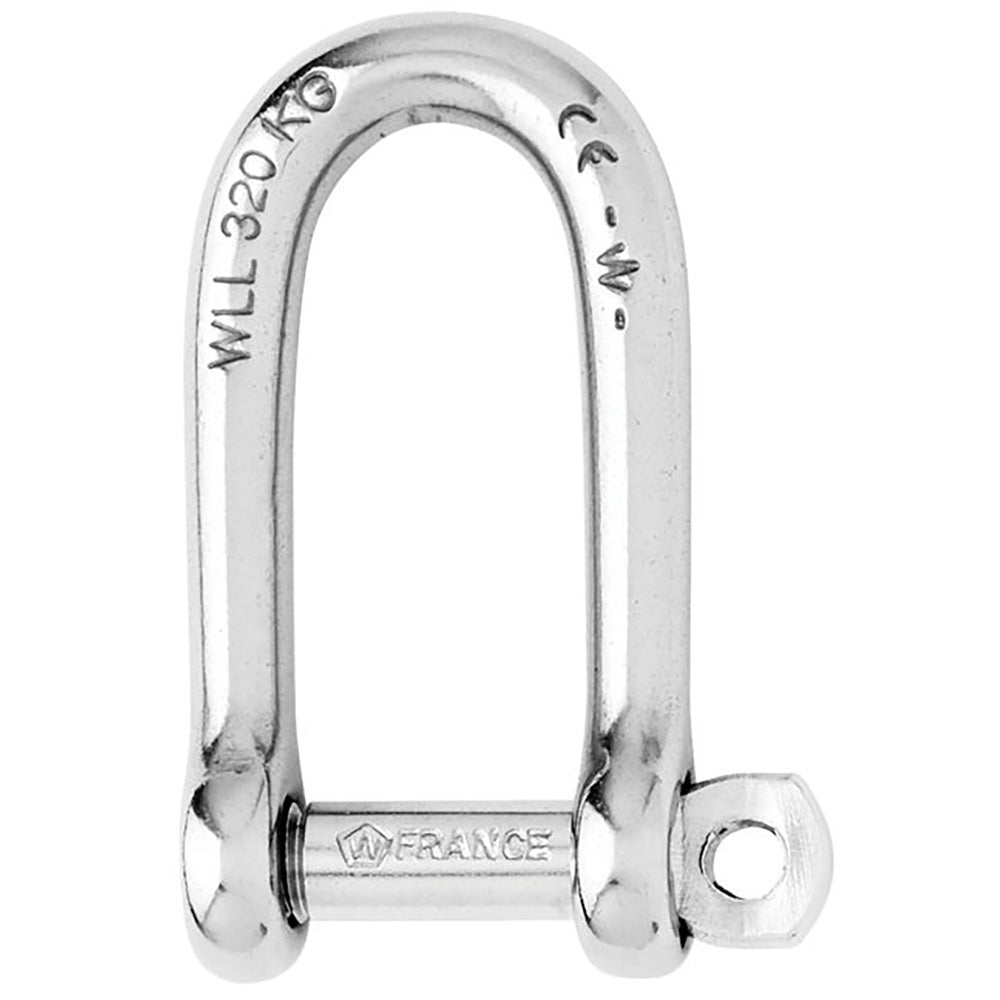

Self-Locking Long D Shackle - 10mm Diameter - 13/32"

Features:

Self-locking D shackle forged in grade 316L stainless steel
The pin is locked into one of the indentations
No risks of loosening due to vibrations
Outstanding working and breaking loads
WLL: only for industrial applications (lifting i.e…)
CE marking

Applications

Standard applications of shackle requiring more length
Attachment applications: blocks, head

Specifications:

Materials: 316 stainless steel grade
Working load: (lb) 3350 / (kg) 1520
WLL: (lb) 1890 / (kg) 860
Breaking load: (lb) 9470 / (kg) 4300
Weight: (lb) 0.282 / (kg) 4300

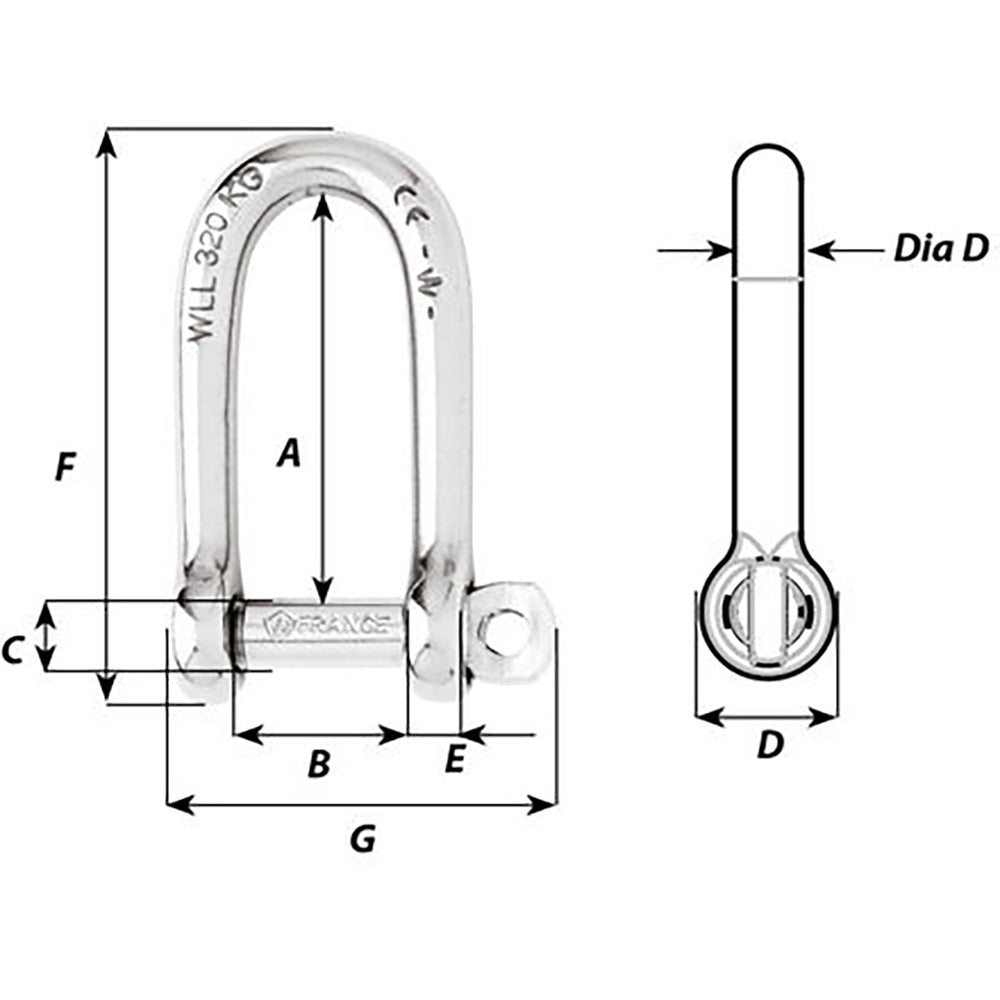

Dimensions:

A: (inch) 2 11/64" / (mm) 55
B: (inch) 25/32" / (mm) 20
C: (inch) 25/64" / (mm) 10
D: (inch) 3/4" / (mm) 19
D diameter: (inch) 25/64" / (mm) 10
E: (inch) 23/64" / (mm) 9
G: (inch) 3 7/64" / (mm) 79
H: (inch) 2 3/64" / (mm) 52

Caption:

Working Load (WL): For nautical applications
Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.
WLL = Breaking load / 5

*Sold as an Individual

Quick Guide (pdf)
