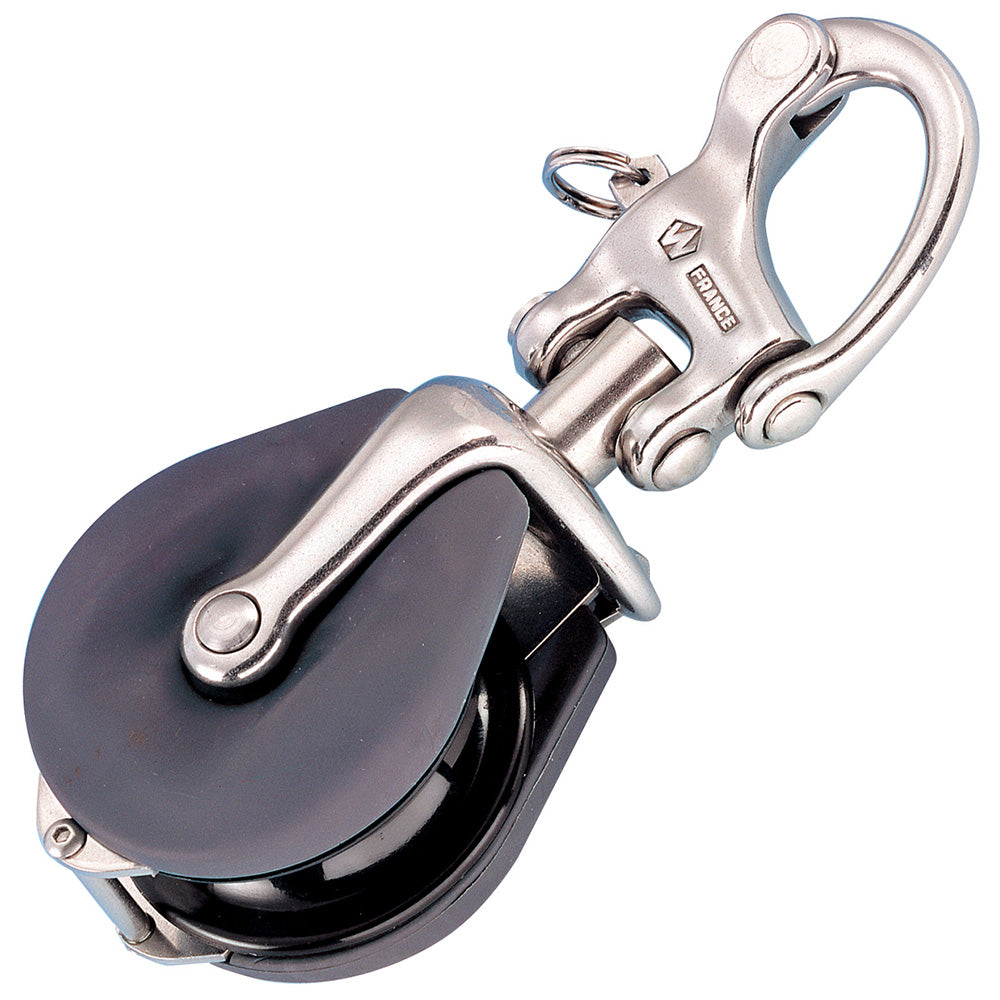

Wichard Snatch Block w/Snap Shackle - Max Rope Size 12mm (15/32") [34500W]

Name: Wichard Snatch Block w/Snap Shackle - Max Rope Size 12mm (15/32") [34500W]
Brand: Wichard Marine
SKU: EM-99748
Price: 292.09 USD
Availability: InStock

$292.09 $343.63

Refund & Return Policy

Returns are accepted within 30 days after shipment. To be eligible for a return, items must be unused, uninstalled, and in their original packaging, and proof of purchase is required. Installed or used products, clearance or final-sale items are not eligible for return. Return Merchandise Authorization (RMA) numbers are required for all returns. Learn more.

Shipping Policy

Egret Marine ships marine parts and accessories within the continental United States only. Orders are processed same day if placed before 3pm CST. or within 1 business days if placed after 3pm CST, excluding weekends and holidays. Learn more.

Description

Snatch Block with Snap Shackle - Max Rope Size 12mm (15/32")

Features:

Free rotation thanks to snap shackle
Very strong closing system
Easy opening by simply pulling on the plunger pin
Shock and scratch-resistant thanks to the elastomer molded cheeks

Applications:

Changing sheets
Spinnaker sheet deflector blocks

Materials:

HR 17.4 PH forged stainless steel arm
Elastomer molded cheeks
Composite sheave

Specifications:

Rope size: (inch) 15/32" / (mm) 12
Length: (inch) 5 45/64" / (mm) 145
Width: (inch) 2 21/64" / (mm) 59
Thickness: (inch) 1 11/16" / (mm) 43
Working Load: (lb) 1580 / (kg) 720
Breaking Load: (lb) 2860 / (kg) 1300
Weight: (lb) 0.56 / (g) 254

Caption:

Working Load (WL): For nautical applications
Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

Quick Guide (pdf)
