Wichard Thimble Shackle Allen Head Pin - 10mm Diameter - 13/32" [1395W]

Name: Wichard Thimble Shackle Allen Head Pin - 10mm Diameter - 13/32" [1395W]
Brand: Wichard Marine
SKU: EM-97649
Price: 157.84 USD
Availability: InStock

$157.84 $185.69

Refund & Return Policy

Returns are accepted within 30 days after shipment. To be eligible for a return, items must be unused, uninstalled, and in their original packaging, and proof of purchase is required. Installed or used products, clearance or final-sale items are not eligible for return. Return Merchandise Authorization (RMA) numbers are required for all returns. Learn more.

Shipping Policy

Egret Marine ships marine parts and accessories within the continental United States only. Orders are processed same day if placed before 3pm CST. or within 1 business days if placed after 3pm CST, excluding weekends and holidays. Learn more.

Description

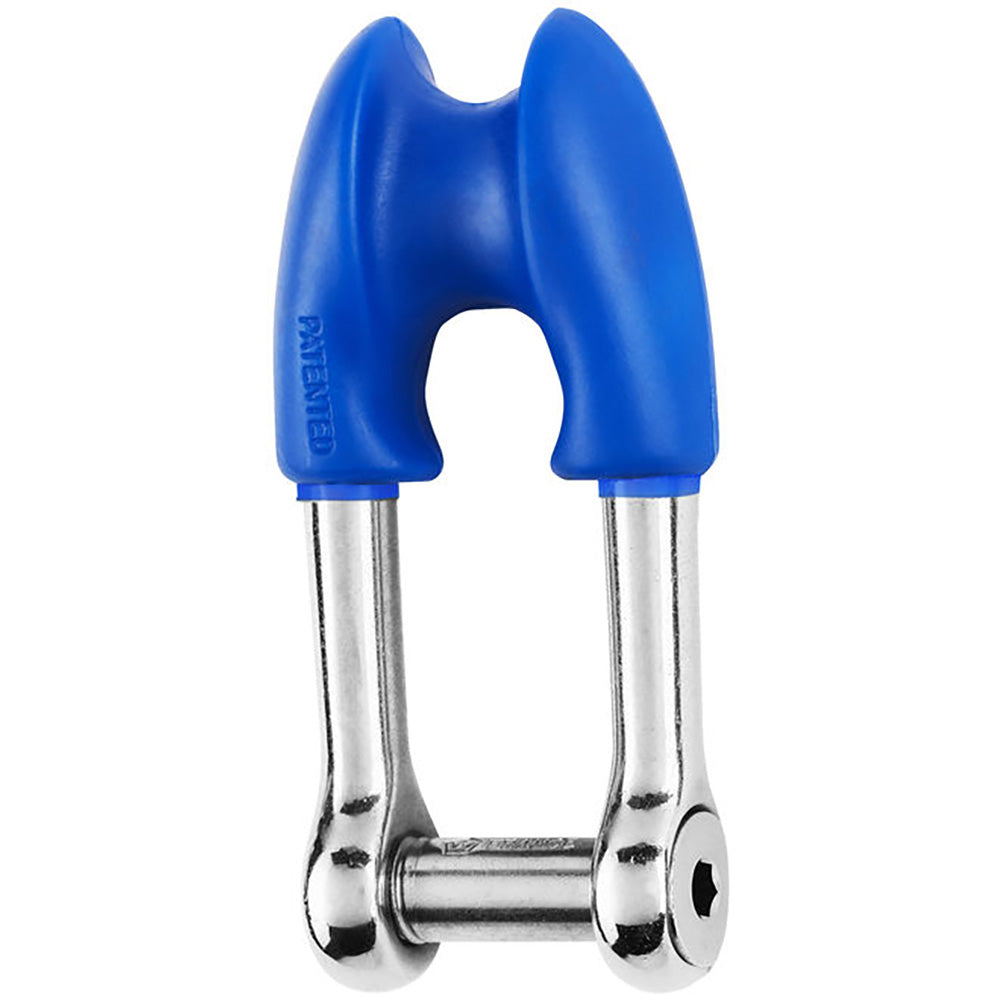

Thimble Shackle Allen Head Pin - 10mm Diameter - 13/32"

Features:

Thimble shackle with allen head pin forged in grade 316L stainless steel
Allows a rope to be spliced without adding and additional thimble
With the captive pin, no risk to lose the pin
Outstanding working and breaking loads

Applications:

Mainsheet halyards
Max rope size: 16 mm

Specifications:

Materials: 316 stainless steel grade
Working load: (lb) 3350 / (kg) 1520
Breaking load: (lb) 11020 / (kg) 5000
Weight: (lb) 0.313 / (g) 142

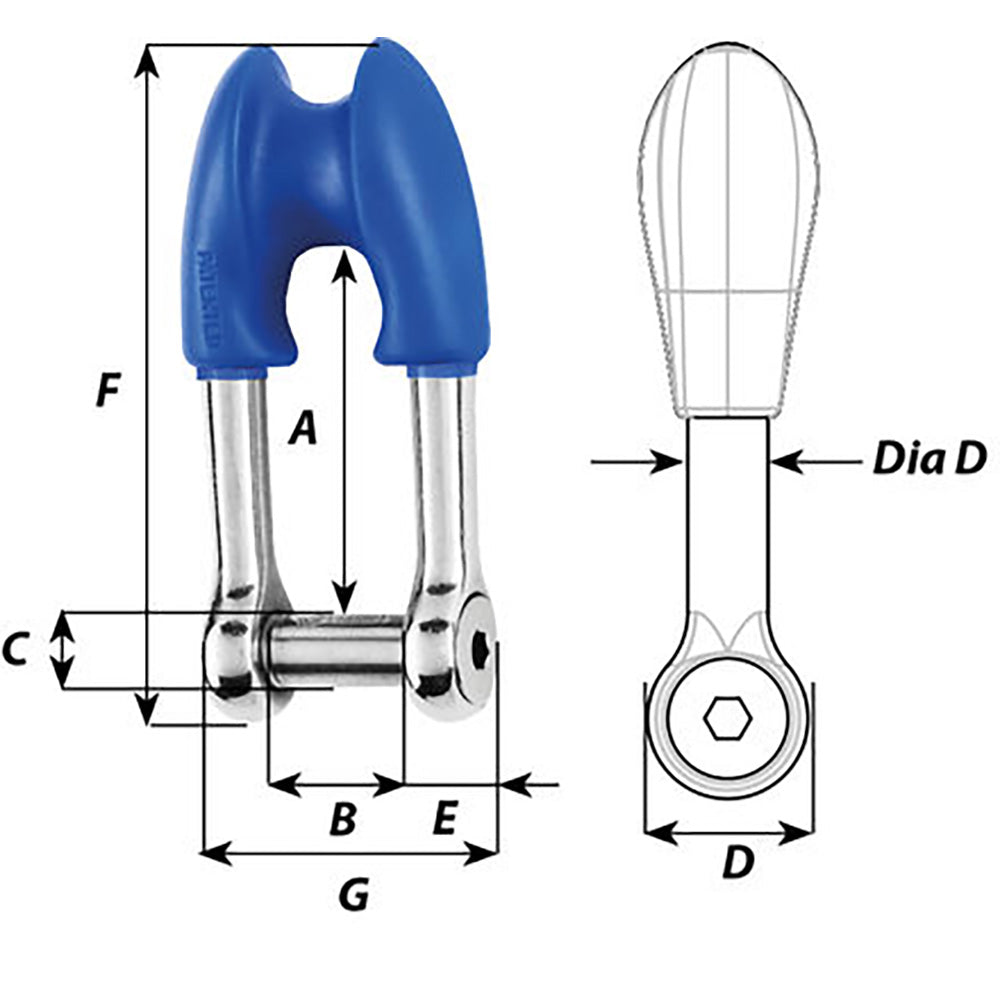

Dimensions:

A: (inch) 2 1/64" / (mm) 51
B: (inch) 25/32" / (mm) 20
C: (inch) 25/64" / (mm) 10
D: (inch) 25/32" / (mm) 20
D diameter: (inch) 25/64" / (mm) 10
E: (inch) 5/16" / (mm) 8
F: (inch) 3 25/32" / (mm) 96
G: (inch) 1 39/64" / (mm) 41

Caption:

Working Load (WL): For nautical applications
Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

Quick Guide (pdf)
