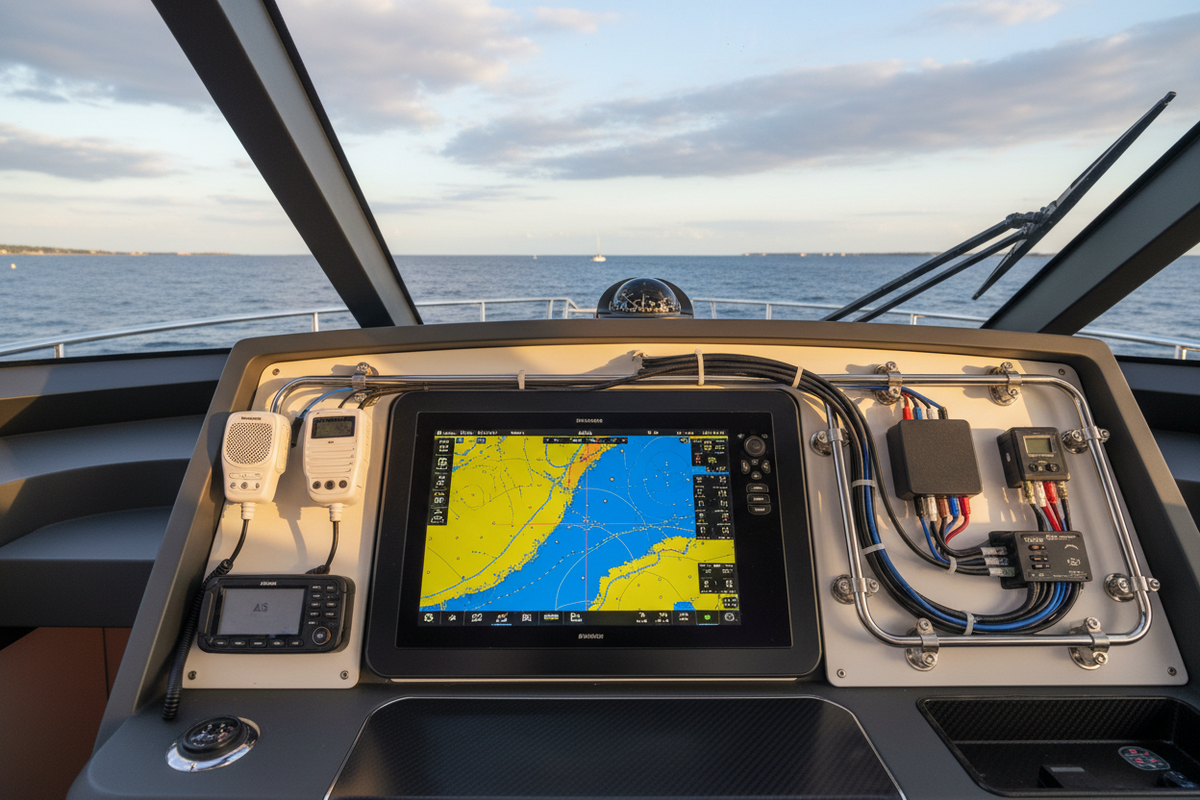

How to Set Up a Marine Network on Your Boat

What Is a Marine Network and Why Do You Need One?

Modern boats are increasingly equipped with multiple electronic devices — chartplotters, GPS receivers, AIS transponders, depth sounders, wind instruments, autopilots, and engine monitors. Without a network connecting them, each device operates in isolation, displaying only its own data. With a proper marine network, all of these devices share information: your chartplotter displays depth, wind, and AIS targets; your autopilot receives GPS heading data; your engine monitor feeds RPM and fuel flow to the display of your choice.

The result is a more capable, safer, and more convenient electronics installation — and it's more achievable than most boaters realize.

NMEA 2000: The Marine Networking Standard

NMEA 2000 (N2K) is the dominant marine networking standard, supported by virtually every major marine electronics manufacturer. It's a plug-and-play bus network: devices connect to a backbone cable using standardized T-connectors and drop cables, and they communicate using a common protocol. If a device is NMEA 2000 certified, it will work with other certified devices regardless of brand.

Key NMEA 2000 Concepts

• Backbone: The main cable that runs through the boat. Typically 12-meter or 20-meter lengths of heavy-gauge N2K cable.
• T-connectors: Tap points along the backbone where devices connect via drop cables.
• Drop cables: Short cables (typically 0.5–6 meters) that connect individual devices to the backbone T-connectors.
• Terminators: 120-ohm resistors that cap each end of the backbone. Required for proper network function — don't skip them.
• Power: The N2K backbone requires a single power connection (12V DC, fused at 3A) to power the network bus itself.

Planning Your Network

Before buying any hardware, sketch out your installation. Identify:

• Where each device will be mounted
• The routing path for the backbone cable
• How many T-connectors you'll need (one per device)
• The drop cable length needed for each device
• Where the backbone power connection will be made

NMEA 2000 networks support up to 50 devices on a single backbone, so you have plenty of room to grow. Keep drop cable lengths under 6 meters for reliable signal integrity.

Actisense: The Network Intelligence Layer

Actisense produces some of the most respected NMEA 2000 tools and gateways in the industry. Their products are particularly valuable for:

• NMEA 2000 to PC/tablet connectivity: The Actisense NGT-1 USB gateway connects your N2K network to a laptop or tablet running navigation software like OpenCPN or Coastal Explorer, giving you a full network display on any screen.
• Network diagnostics: Actisense's NMEA Reader software (free) lets you see every message on your N2K network in real time — invaluable for troubleshooting and verifying that devices are communicating correctly.
• Data bridging: Actisense gateways can bridge NMEA 0183 legacy devices (older GPS units, VHF radios with DSC) onto an NMEA 2000 network, preserving your existing equipment investment.

Raymarine: Chartplotters and Instruments

Raymarine is one of the leading marine electronics brands, producing chartplotters, autopilots, radar, sonar, and instrument displays that integrate seamlessly via NMEA 2000 and their proprietary SeaTalkNG protocol (which is electrically compatible with NMEA 2000).

Building a Raymarine-Centered Network

A typical Raymarine installation might include:

• An Axiom chartplotter as the primary display and network hub
• A GPS/GNSS antenna feeding position data to the network
• A DST800 transducer for depth, speed, and temperature
• An i70s instrument display at the helm for at-a-glance data
• An Evolution autopilot receiving heading and GPS data from the network

All of these devices connect to the same NMEA 2000 backbone and share data automatically. The chartplotter becomes the central display for all network data, and any device can be configured to display any data type available on the network.

Step-by-Step: Building Your N2K Network

1. Run the backbone cable from bow to stern (or along the primary electronics routing path), securing it every 18–24 inches.
2. Install T-connectors at each device location along the backbone.
3. Cap both ends of the backbone with 120-ohm terminators.
4. Connect the power drop to the backbone at a convenient mid-point, fused at 3A.
5. Connect each device to its T-connector using the appropriate drop cable length.
6. Power up and verify using Actisense NMEA Reader or your chartplotter's device list to confirm all devices are communicating.

Common Mistakes to Avoid

• Missing terminators: A network without terminators at both ends will have communication errors and may not work at all.
• Too many power connections: The N2K backbone should have exactly one power connection. Multiple power connections can cause ground loops and network instability.
• Overlong drop cables: Keep drops under 6 meters. Long drops can cause signal reflections that degrade network performance.
• Mixing connector standards: Micro, Mid, and Mini NMEA 2000 connectors are not interchangeable. Verify the connector type for each device before ordering cables.

Getting Started

If you're new to marine networking, start with a simple backbone and two or three devices — a chartplotter, a GPS antenna, and a depth transducer. Once you're comfortable with how the network operates, adding more devices is straightforward. Actisense's diagnostic tools make troubleshooting easy, and Raymarine's ecosystem gives you a clear upgrade path as your electronics needs grow.

A well-built marine network is one of the most impactful upgrades you can make to your boat's electronics — and with modern NMEA 2000 components, it's well within reach for a capable DIY installer.
