Blue Sea 5196 MRBF Surface Mount 3 Circuit Fuse Block - Common Source [5196]

Name: Blue Sea 5196 MRBF Surface Mount 3 Circuit Fuse Block - Common Source [5196]
Brand: Blue Sea Systems
SKU: EM-64354
Price: 50.99 USD
Availability: InStock

$50.99 $75.99

Refund & Return Policy

Returns are accepted within 30 days after shipment. To be eligible for a return, items must be unused, uninstalled, and in their original packaging, and proof of purchase is required. Installed or used products, clearance or final-sale items are not eligible for return. Return Merchandise Authorization (RMA) numbers are required for all returns. Learn more.

Shipping Policy

Egret Marine ships marine parts and accessories within the continental United States only. Orders are processed same day if placed before 3pm CST. or within 1 business days if placed after 3pm CST, excluding weekends and holidays. Learn more.

Description

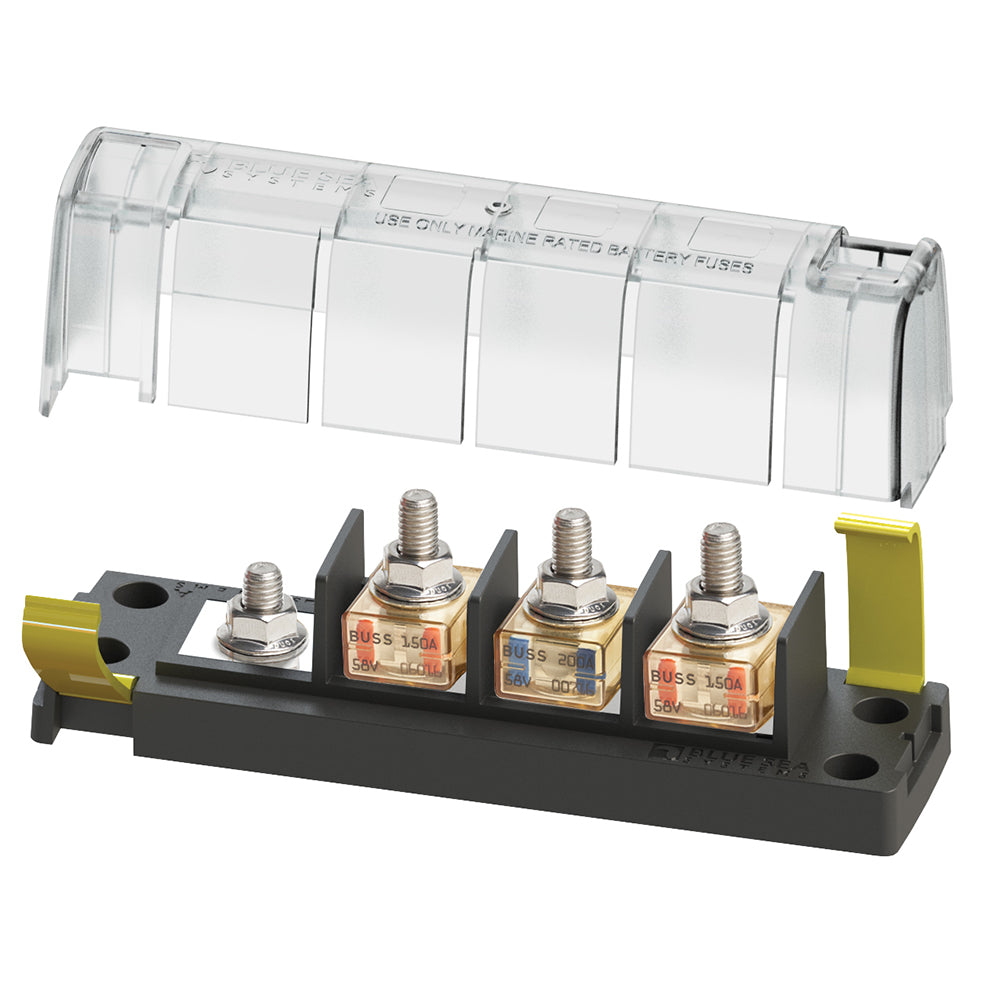

MRBF Surface Mount 3 Circuit Fuse Block - Common Source

Surface mount fuse blocks accommodate three MRBF fuses for consolidated high amperage circuit protection
The independent source fuse block (5194) is ideal for 3 output battery chargers
The common source fuse block (5196) provides 3 loads from a single source
Clip-on cover insulates terminal connections
Versatile wiring options allow all wires to come out a single side
Label recesses for easy circuit identification
One-piece stainless flange nuts ensure safe and secure connections

Specifications

Ignition Protected: Yes
Maximum Amperage: 300a per block/240a per circuit
Maximum Voltage: 58v DC
Maximum Torque: 100 in-lb
Terminal Stud Size: M8 (5/16"-18)
