Blue Sea 8262 Waterproof Panel 4 Position - Slate Grey [8262]

Name: Blue Sea 8262 Waterproof Panel 4 Position - Slate Grey [8262]
Brand: Blue Sea Systems
SKU: EM-14579
Price: 144.99 USD
Availability: InStock

$144.99 $227.99

Refund & Return Policy

Returns are accepted within 30 days after shipment. To be eligible for a return, items must be unused, uninstalled, and in their original packaging, and proof of purchase is required. Installed or used products, clearance or final-sale items are not eligible for return. Return Merchandise Authorization (RMA) numbers are required for all returns. Learn more.

Shipping Policy

Egret Marine ships marine parts and accessories within the continental United States only. Orders are processed same day if placed before 3pm CST. or within 1 business days if placed after 3pm CST, excluding weekends and holidays. Learn more.

Description

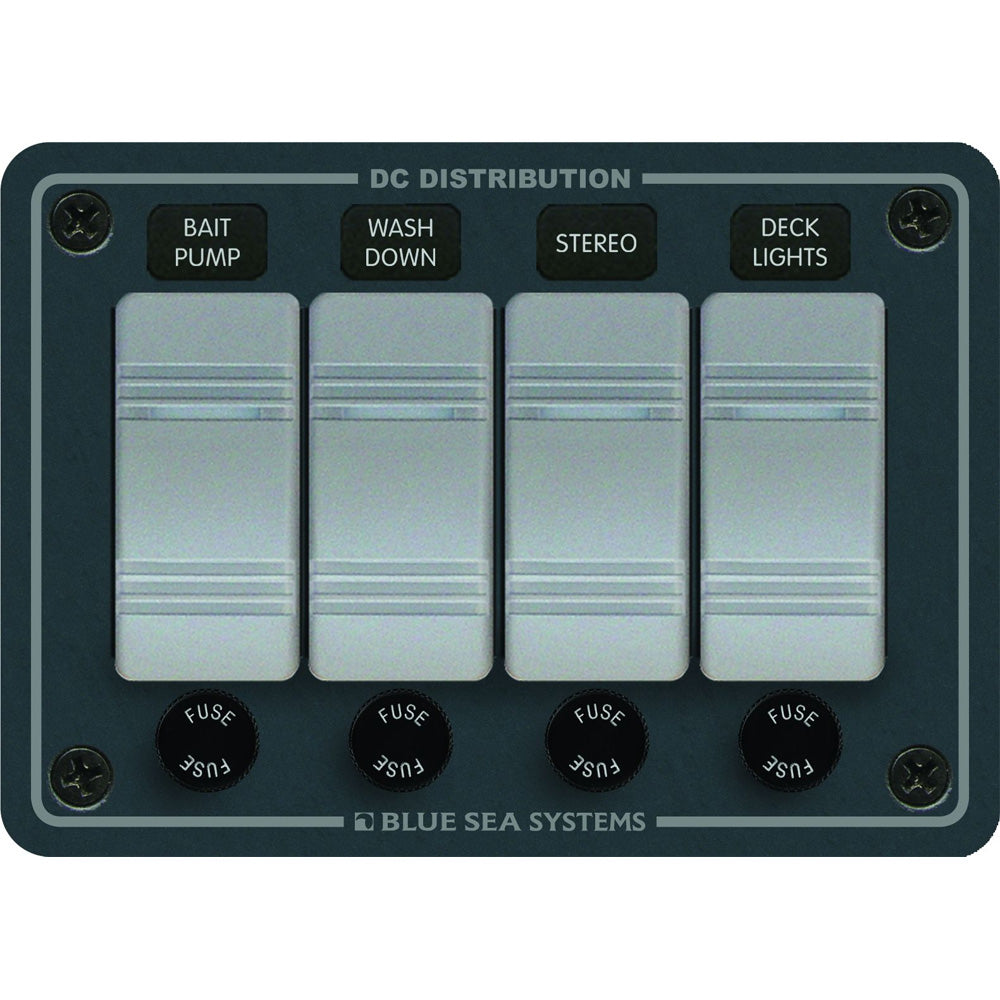

8262 Waterproof Panel 4 Position - Slate Grey

Features:

Will withstand the water exposures normally encountered in above deck applications: salt spray, rain, hose washdowns, momentary immersions
Designed for flybridge and open cockpit applications
ON-OFF Contura Switches
ON indicating LEDs embedded in switches
Watertight mounting gasket included
Countersunk mounting holes throughout
Two-part polyurethane slate gray finish
Industry standard height and width
Mil-Spec chemical treatment via immersion to protect every surface detail from corrosion
Completely wired and ready to install

Specifications:

Weatherproof: Water Resistant
Positions: 4
Nominal Voltage: 12v / 24v
Panel Cumulative Rating: 45A
Switch Rating: 20A @ 12v DC / 15A @ 24v DC
Height: 3.75"
Width: 5.25"
Depth: 3"

Included:

(4) 5021 Panel Mount AGC/MDL Fuse Holder
(1) 8214 Black 60 Label Set
(4) 8230 Contura Switch SPST Gray - Off-On

Warning WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
