Quick  |  SKU: EM-73059

Quick Aleph AL3 1012 Windlass - 12V, 1000W, 8MM or 5/16" Gypsy to 5/8" Rope [FSAL10120008B00]

$2,089.99 $2,279.70

SHIPS SAME DAY BEFORE 3PM CST! Shipping Policy

Refund & Return Policy

Returns are accepted within 30 days after shipment. To be eligible for a return, items must be unused, uninstalled, and in their original packaging, and proof of purchase is required. The following items are not eligible for return: Installed or used products, clearance or final-sale items, trolling motors, programmed AIS units, KVH Starlink products that are registered or opened, special-order products, or products displaying the notice “This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.” in their description. Opened or unsealed DVDs, CDs, or cartography (unless defective) are not eligible for return. Return Merchandise Authorization (RMA) numbers are required for all returns. Learn more.

Shipping Policy

Egret Marine ships marine parts and accessories within the contiguous United States only. Orders are typically processed same day if placed before 3pm CST, excluding weekends and holidays. Learn more.
36
13

Product Details

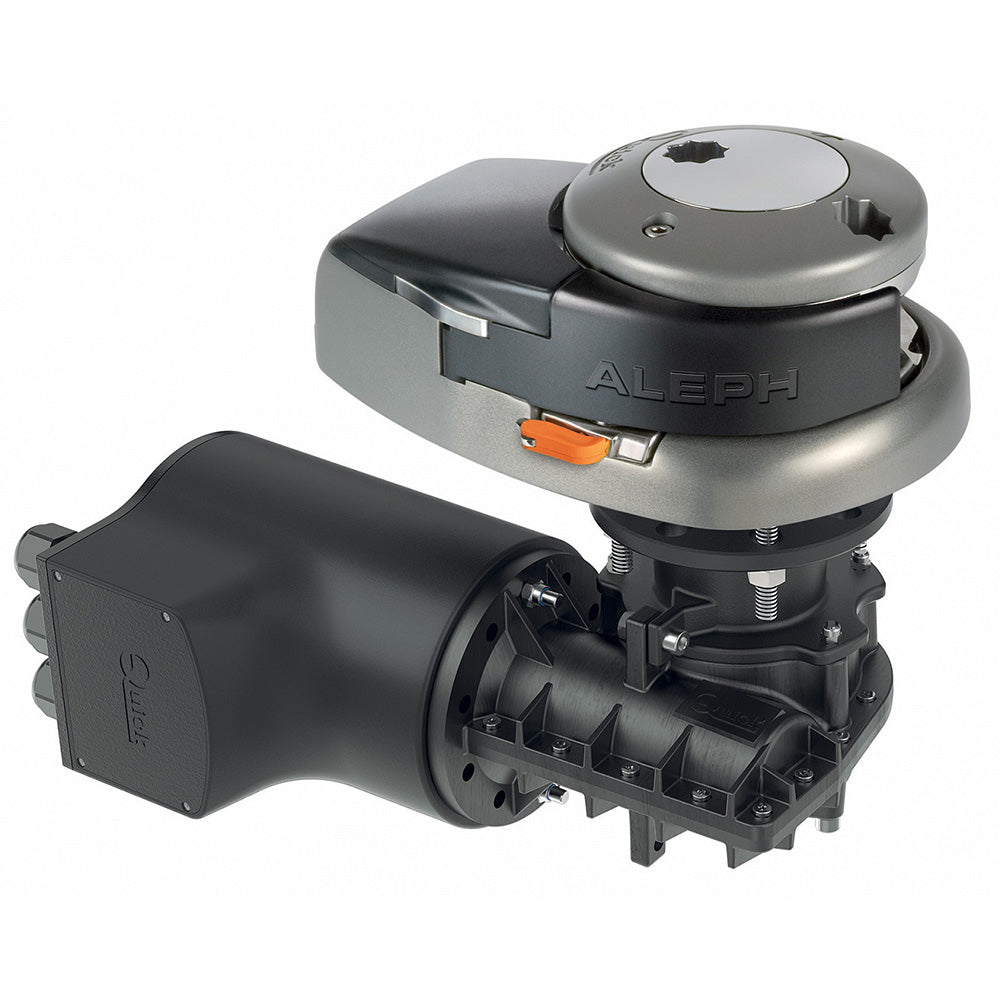

Aleph AL3 1012 Windlass - 12V, 1000W, 8MM, or 5/16" Gypsy to 5/8" Rope

The AL3 vertical windlass features a hard-anodized aluminum construction, an IP67 watertight motor, an inspection lid, and an emergency manual lift system, making it suitable for boats with limited deck space. The unit includes a gearbox, solenoid, clutch handle, and mounting hardware.

Features:

  • For 33-46FT Boats
  • Vertical windlasses
  • 8mm or 5/16 gypsy
  • Requires 5/8" three-strand polyester rope
  • Includes T6315-12 Solenoid
  • Base in anodized aluminium with hard oxide
  • With and without drum
  • Rope and chain on a single gypsy
  • Integrated sensor and magnet for chain counter
  • Manual Free-Fall system
  • Emergency manual lift system
  • Supplied with pressure lever
  • Inspection lid
  • IP67 watertight motor
  • Technopolymer gearbox (700W / 1000W)

Specifications:

  • Motor power - 700 W
  • Motor supply voltage - 12 V
  • Maximum pull - 1000 Kg / 2204 lb
  • Maximum working load - 370 kg/816 lb
  • Working load - 120 kg/264 lb
  • Current absorption @ working load - 140 A
  • Maximum chain speed - 39,6 m/min 129.2 ft/min
  • Maximum chain speed @ working load - 20,4 m/min 66.9 ft/min
  • Weight - 18,6 Kg / 41 lb
