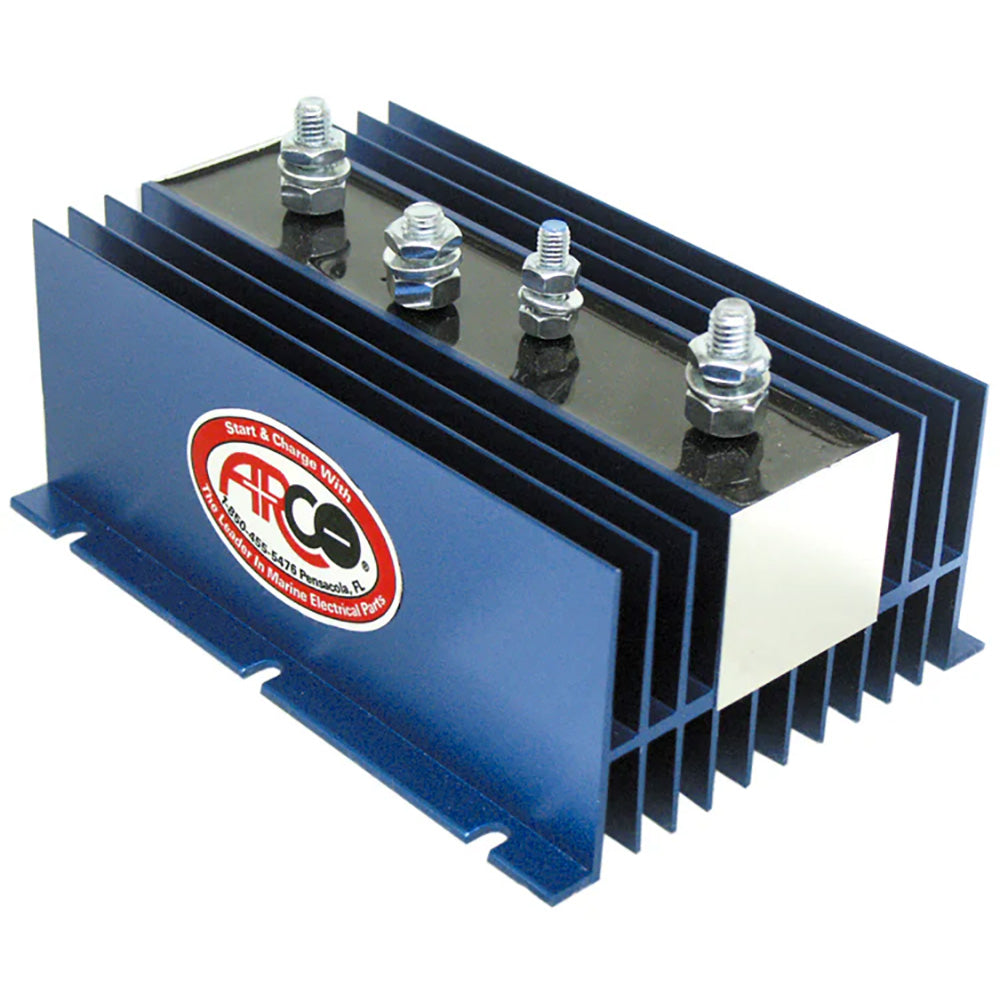

ARCO Marine BI-1203-3A Battery Isolator - 120A - 1 Alternator, 3 Battery [BI-1203-3A]

Name: ARCO Marine BI-1203-3A Battery Isolator - 120A - 1 Alternator, 3 Battery [BI-1203-3A]
Brand: ARCO Marine
SKU: EM-106601
Price: 162.99 USD
Availability: InStock

$162.99 $256.55

Refund & Return Policy

Returns are accepted within 30 days after shipment. To be eligible for a return, items must be unused, uninstalled, and in their original packaging, and proof of purchase is required. Installed or used products, clearance or final-sale items are not eligible for return. Return Merchandise Authorization (RMA) numbers are required for all returns. Learn more.

Shipping Policy

Egret Marine ships marine parts and accessories within the continental United States only. Orders are processed same day if placed before 3pm CST. or within 1 business days if placed after 3pm CST, excluding weekends and holidays. Learn more.

Description

BI-1203-3A Battery Isolator - 120A - 1 Alternator, 3 Battery

The Arco Marine BI-1203-3A is an inboard/outboard battery isolator that can handle 1 alternator, 3 batteries, and 120A max. Rated for use with 10 to 350-amp alternators on 12, 24, or 32-volt negative ground systems.

*Includes exciter terminal

Features:

1 alternator, 3 batteries, 120A max
Inboard and outboard battery isolators are solid-state devices that allow electrical current to flow in one direction ONLY, thus permitting the alternator to be connected directly to two batteries without fear of one higher-charged battery discharging into the lower-charged battery.
Both batteries are always being charged automatically, in proportion, to their needs whenever the engine is running.
When battery isolators are used in conjunction with selector switches, it is not necessary to change the switch position to provide for charging of both batteries.
Isolators provide proportioning of the output or charging current on the alternator to the batteries as required, regardless of switch position.

NOTE: Battery Isolators cannot be used on 12 volt charging systems with 24 volt trolling motors or newer outboard engines with rectifier-regulator charging systems.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
Quick Guide (pdf)
