BEP Pro Installer 400A EZ-Mount Double Pole Battery Switch - MC10 [770-DP-EZ]

Name: BEP Pro Installer 400A EZ-Mount Double Pole Battery Switch - MC10 [770-DP-EZ]
Brand: BEP Marine
SKU: EM-58587
Price: 82.99 USD
Availability: InStock

$82.99 $132.99

Refund & Return Policy

Returns are accepted within 30 days after shipment. To be eligible for a return, items must be unused, uninstalled, and in their original packaging, and proof of purchase is required. Installed or used products, clearance or final-sale items are not eligible for return. Return Merchandise Authorization (RMA) numbers are required for all returns. Learn more.

Shipping Policy

Egret Marine ships marine parts and accessories within the continental United States only. Orders are processed same day if placed before 3pm CST. or within 1 business days if placed after 3pm CST, excluding weekends and holidays. Learn more.

Description

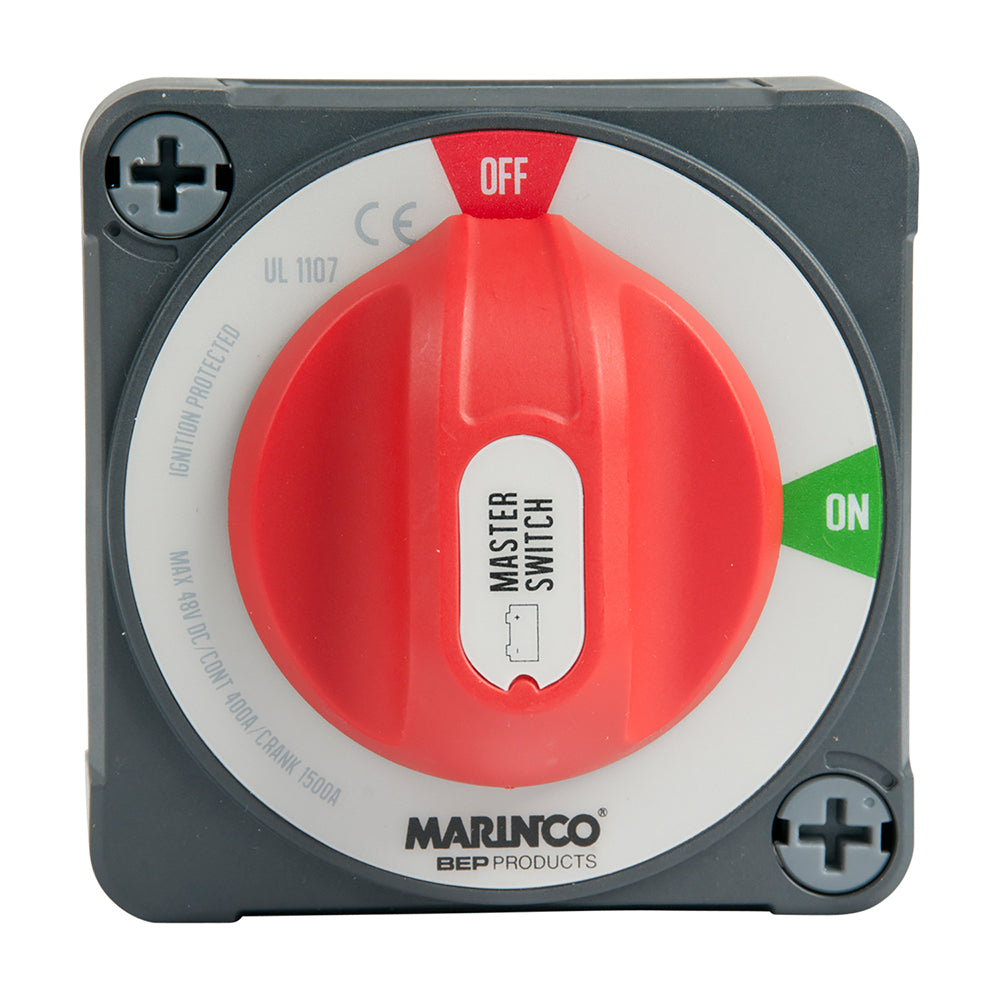

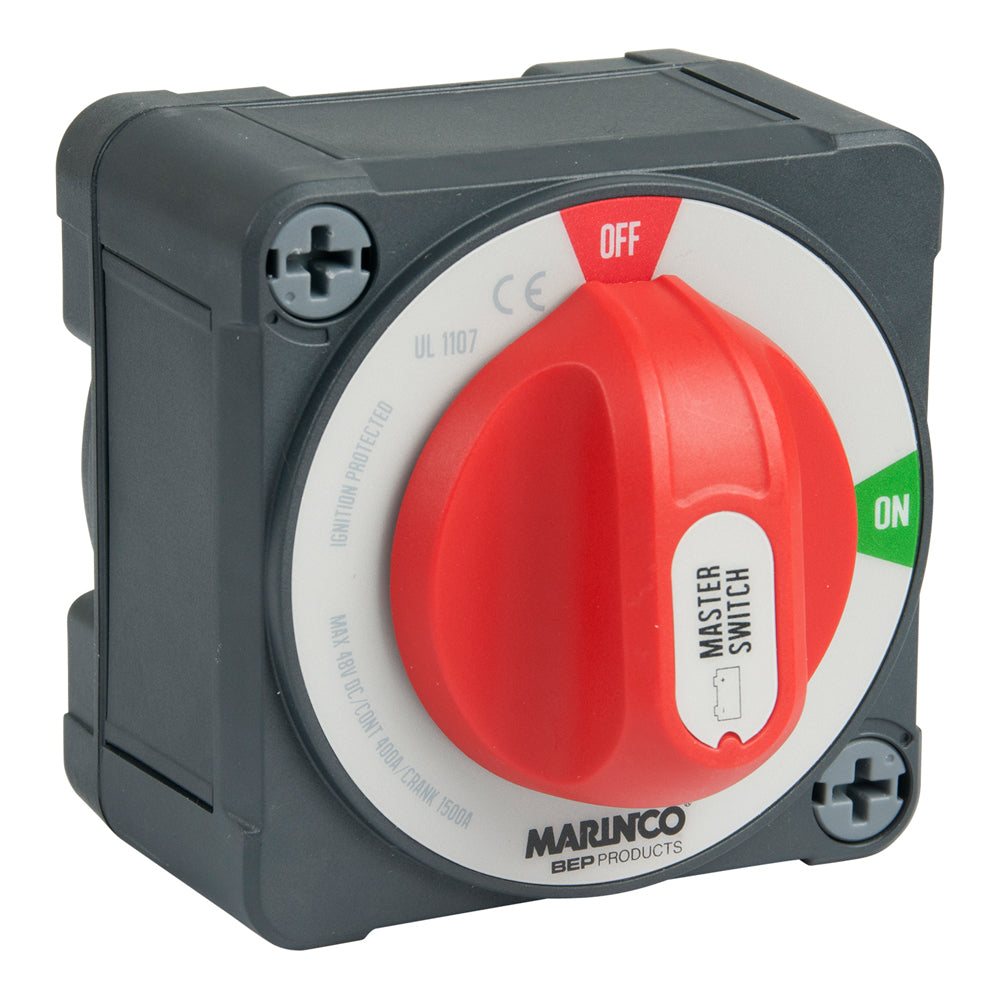

Pro Installer 400A EZ-Mount Double Pole Battery Switch - MC10

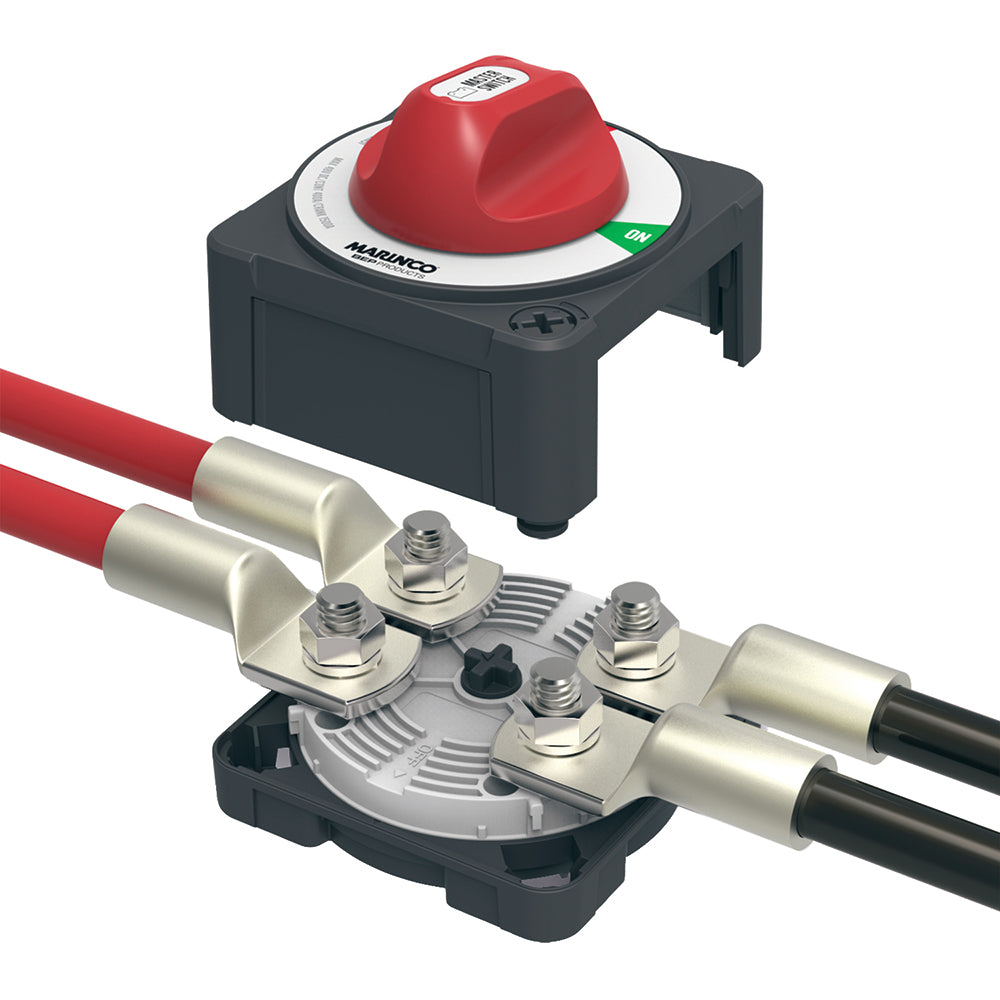

An addition to our multi award winning Pro Installer EZ Mount range, this battery switch provides Double Pole On/Off functionality so that both positive and negative battery terminals can be isolated. Most commonly used on metal hulled craft, full isolation ensures there is no risk of stray currents that may cause galvanic corrosion, and also guarantees optimum safety during servicing or mishap, for example with mining equipment. As easy as 1, 2, 3, these revolutionary battery switches allow you to wire from the front for the easiest surface mounting. With their shared interconnection height, EZ-Mount battery switches "cluster" directly with the Pro Installer Busbar Range, resulting in the fastest, most compact installations. Optimized cable access makes installation a breeze.

Features:

Tested to UL1107 ignition protection, CE
Tinned copper 10 mm (3/8 in) studs
Stainless steel washers and nuts
Fiber reinforced plastics
400A Continuous / 600A 5 minutes Intermittent / 1500A 10 seconds Cranking
(cable size to achieve ratings 120mm}, 4/0, smaller cable size will reduce
the Amp rating)
Waterproof to IP67
Same interconnection height as Pro Installer
Removable knob allows isolation during servicing

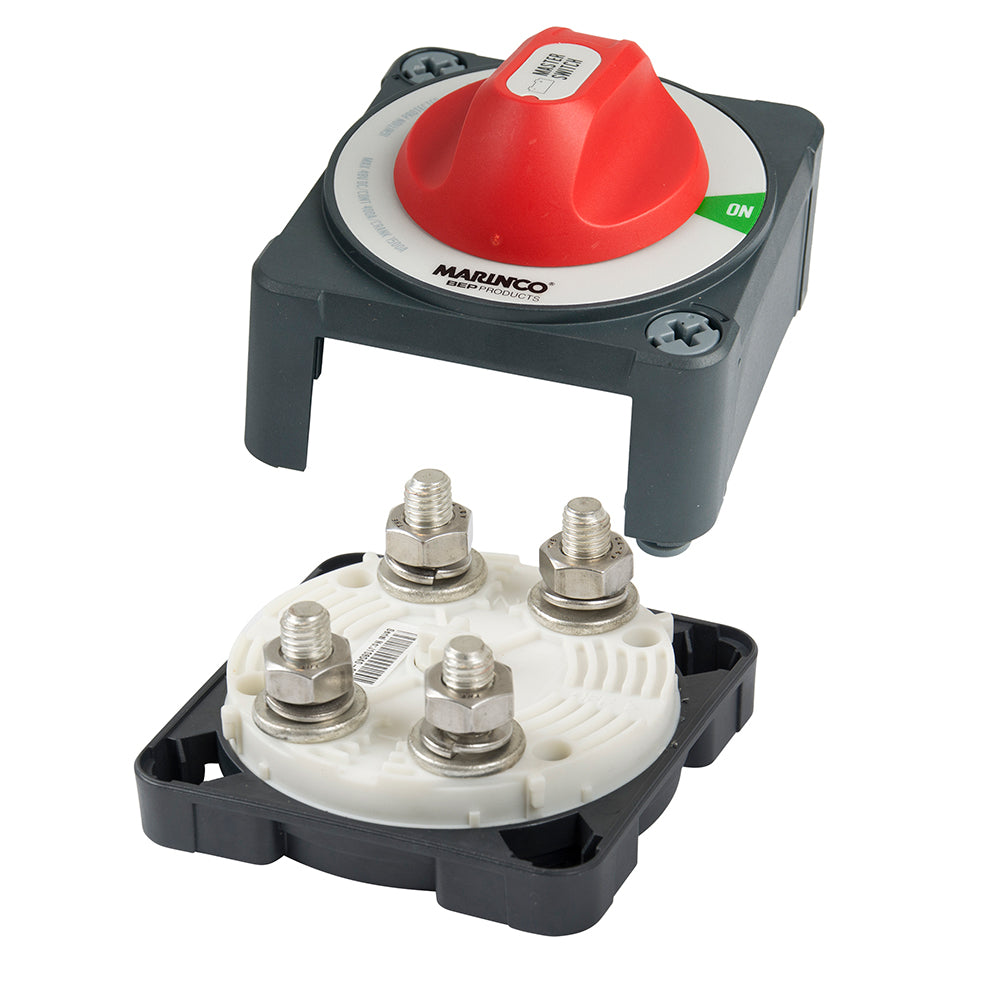

3 removable side plates for protection
Industry standard 3.85 x 3.85 inch footprint
Surface mount only
Each Pro Installer battery switch is fully tested for pressure sealing,
Rotation force and electrically load tested

Specifications
Mounting: Surface Only
Voltage: 48v DC (for 12-48v systems)
Rating: 400 Cont / 600 Inter / 1500 Crank
Dims: 3.85" x 3.85" x 3.62"
Operation: On/Off
Stud: 4x 10 mm (3.8")
