Blue Sea Systems  |  SKU: EM-57241  |  Barcode: 632085011901

Blue Sea 1190 ELCI Main 30A Double Pole + 1 Position [1190]

Sale price $622.99 Regular price $853.99

SHIPS SAME DAY BEFORE 3PM CST! Shipping Policy


Refund & Return Policy

Returns are accepted within 30 days after shipment. To be eligible for a return, items must be unused, uninstalled, and in their original packaging, and proof of purchase is required. The following items are not eligible for return: Installed or used products, clearance or final-sale items, trolling motors, programmed AIS units, KVH Starlink products that are registered or opened, special-order products, or products displaying the notice “This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.” in their description. Opened or unsealed DVDs, CDs, or cartography (unless defective) are not eligible for return. Return Merchandise Authorization (RMA) numbers are required for all returns. Learn more.

Shipping Policy

Egret Marine ships marine parts and accessories within the contiguous United States only. Orders are typically processed same day if placed before 3pm CST, excluding weekends and holidays. Learn more.

Product Details

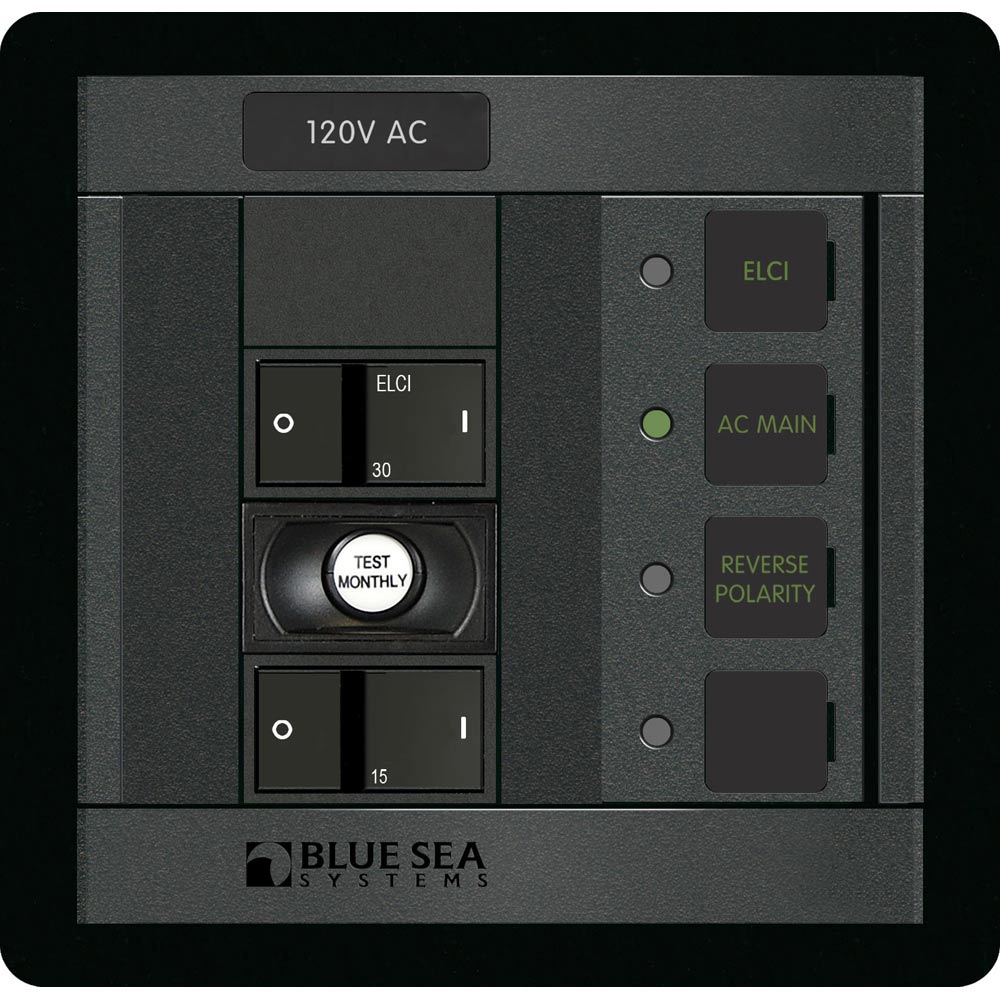

ELCI Main 30A Double Pole + 1 Position

Features:

  • One 30A AC ELCI Main Residual Current Circuit Breaker, leakage trip amperate - 30 mA
  • ELCI provides overcurrent and leakage protection per ABYC E-11 for whole boat shore power protection
  • One 15A AC Branch Flat Rocker Circuit Breaker
  • Red " Reverse Polarity" LED
  • Includes 4206 AC Panel Basic Square Format Label Set
  • All circuit label positions are backlit
  • "ON" indicating LEDs


Specifications:
  • Positions: 1
  • Nominal Voltage: 120V AC
  • Backlit Label*: Green LED
  • Height: 4.75" (120.65mm)
  • Width: 4.88" (123.95mm)
  • Depth: 3.99" (101.35mm)
  • Weight: 1.00lb (0.45kg)


Includes:
(1) - 7403 - A-Series Flat Rocker Circuit Breaker - Single Pole 15A
(1) - 3102100 - A-Series ELCI Main Circuit Breaker - Double Pole 120V AC 30A

*Green LEDs (Circuit Breaker Panels only) aid low-light readability. All labels will be lit when the panel is powered, regardless of individual switch position

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • AC/DC: AC
  • Box Dimensions: 6"H x 7"W x 9"L WT: 1.6 lbs
  • UPC: 632085011901

Quick Guide (pdf)
Owner's Manual (pdf)
