Blue Sea Systems  |  SKU: EM-94732  |  Barcode: 632085235611

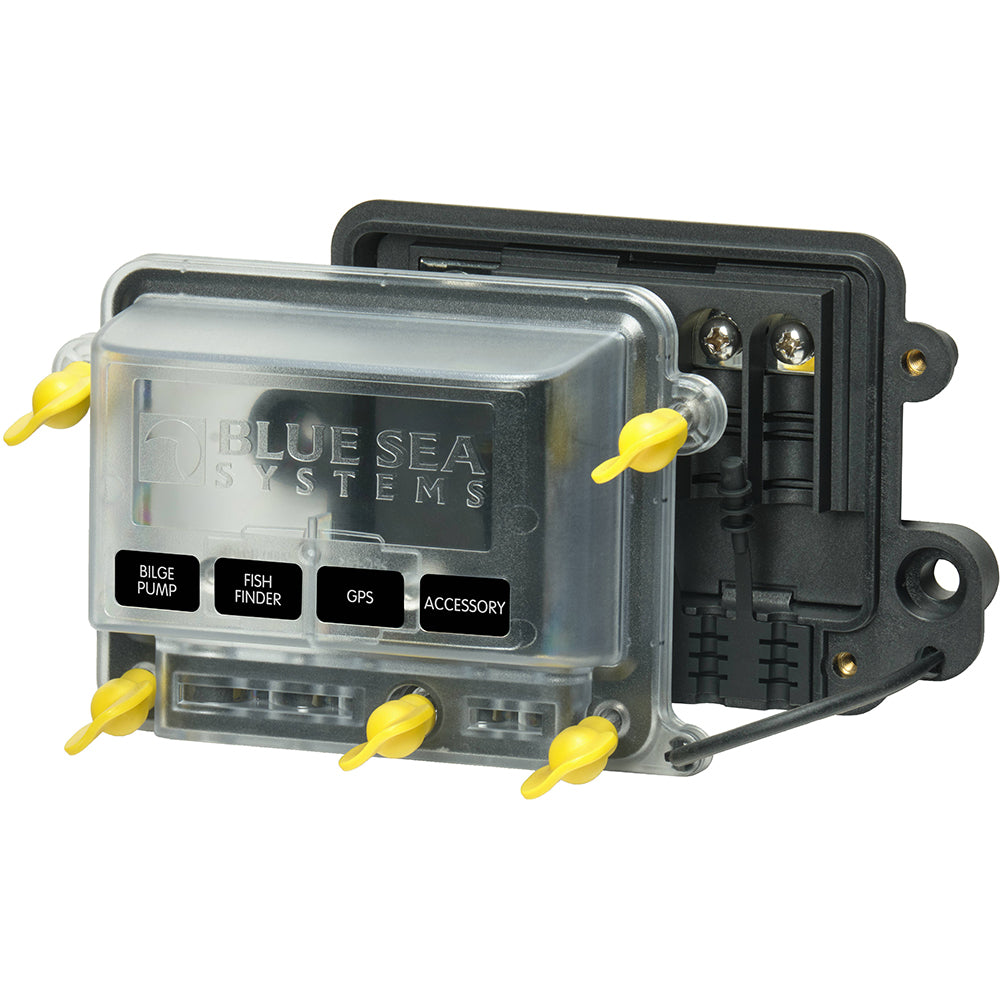

Blue Sea 2356100 - Water Resistant 100A Busbar w/Cover [2356100]

$42.99 $50.99

SHIPS SAME DAY BEFORE 3PM CST! Shipping Policy

Refund & Return Policy

Returns are accepted within 30 days after shipment. To be eligible for a return, items must be unused, uninstalled, and in their original packaging, and proof of purchase is required. The following items are not eligible for return: Installed or used products, clearance or final-sale items, trolling motors, programmed AIS units, KVH Starlink products that are registered or opened, special-order products, or products displaying the notice “This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.” in their description. Opened or unsealed DVDs, CDs, or cartography (unless defective) are not eligible for return. Return Merchandise Authorization (RMA) numbers are required for all returns. Learn more.

Shipping Policy

Egret Marine ships marine parts and accessories within the contiguous United States only. Orders are typically processed same day if placed before 3pm CST, excluding weekends and holidays. Learn more.

Product Details

2356100 - Water Resistant 100A Busbar with Cover

Water-resistant bussing for harsh environments.  Built with wing screws for toolless access.

Features:

  • Accepts a wide range of wire sizes
    • Includes 3 wire plugs to maintain a water-resistant rating if less than 4 wires are used
    • Nests with other water-resistant 100A common busbars and ST-Blade water resistant fuse block for space-saving wiring
    • Ideal for positive distribution and for the collection of negative or AC ground circuits
    • Meets ABYC/USCG insulation requirements
    • Tin-plated copper busses and fuse clips
    • Includes four (4) write-on circuit labels
    • Small format standard and custom labels are available
    • Wing-screws designed for tool-free installation of cover to meet ABYC compliance

Technical Specifications:

  • Cover - yes
  • Maximum Voltage - 300V AC - 48V DC
  • Terminal Stud - 1 x #10-32
  • Continuous Rating - 100A AC or DC
  • Bus Material - Tin-plated Copper
  • Mounting Holes - Accepts 1/4" (6mm) screws
  • Terminal Screws - 4 x # 8-32
  • Wire Size - Input - (1) 8 AWG to 4 AWG
  • Wire Size - Load - (4) 16 AWG to 10 AWG

In the Box:

  • 2356100 Busbar
  • Instruction Manual

*Sold as an Individual


Quick Guide (pdf)
