Blue Sea 3118 - SMS Panel Enclosure w/ELCI (50A) and 2 Blanks - 120V AC [3118]

Name: Blue Sea 3118 - SMS Panel Enclosure w/ELCI (50A) and 2 Blanks - 120V AC [3118]
Brand: Blue Sea Systems
SKU: EM-65549
Price: 657.99 USD
Availability: InStock

$657.99 $1,128.99

Refund & Return Policy

Returns are accepted within 30 days after shipment. To be eligible for a return, items must be unused, uninstalled, and in their original packaging, and proof of purchase is required. Installed or used products, clearance or final-sale items are not eligible for return. Return Merchandise Authorization (RMA) numbers are required for all returns. Learn more.

Shipping Policy

Egret Marine ships marine parts and accessories within the continental United States only. Orders are processed same day if placed before 3pm CST. or within 1 business days if placed after 3pm CST, excluding weekends and holidays. Learn more.

Description

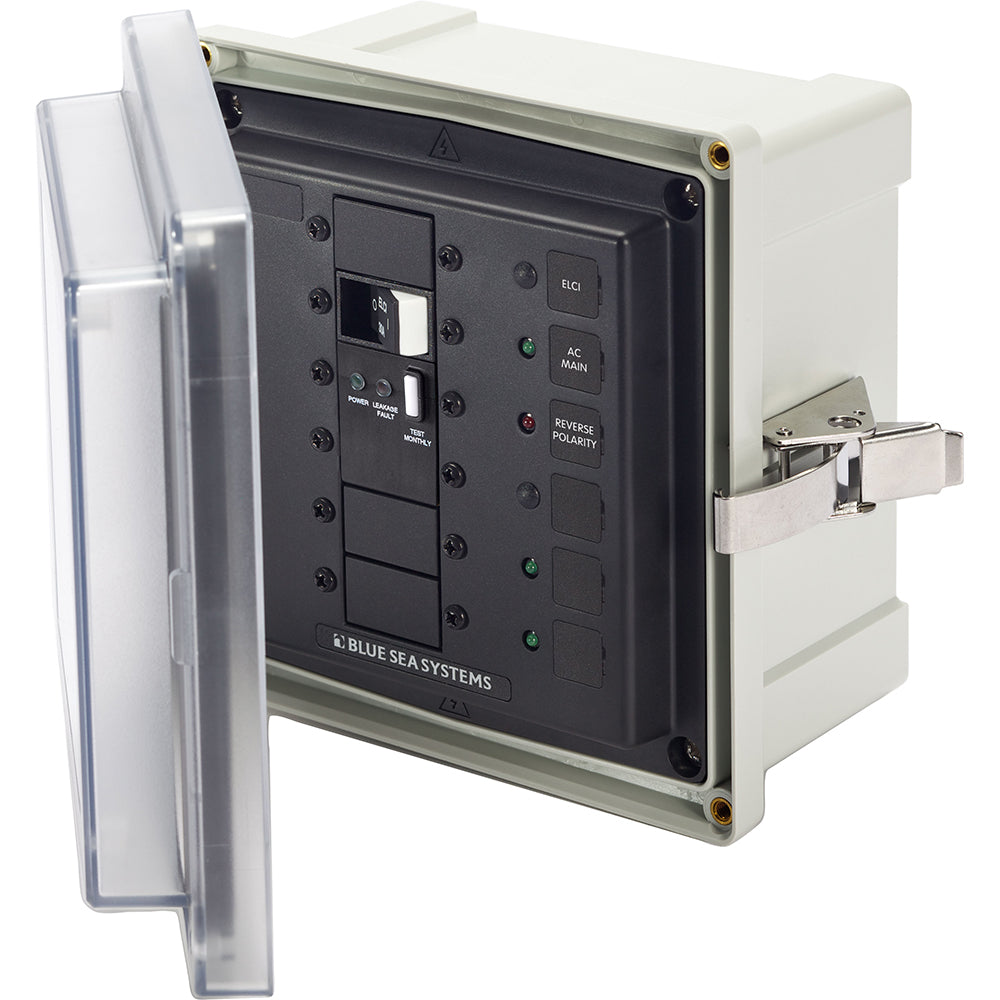

3118 - SMS Panel Enclosure with ELCI (50A) and 2 Blanks - 120V AC

The 3118 panel enclosure is built for Equipment Leakage Circuit Interrupters (ELCI) main circuit breakers and other large frame devices. Meets ABYC E-11 when used with an ELCI Main circuit breaker and mounted within 10' of AC shore power inlet.

Features:

Blank apertures for custom breaker loading
Glass filled polycarbonate base
Clear cover allows easy view of circuit breaker status
Overlapping cover for strength and increased gasket protection
Oversized, formed in place seamless PUR gasket
Easily removable stainless steel hinge pin for unobstructed installation
Stainless steel latch secures cover without penetrating the enclosure
Blank circuit positions accommodate Carling Technologies™ A and C Series Flat Rocker and ELCI Main circuit breakers
Includes waterproof glands
LED lights for back lighting and ON indication

Technical Specifications:

Circuit Breaker Type - 1 x ELCI Main (50A) 120V and 2 x Blanks
Dimensions (Overall) (H x W x D) - 7.6" x 7.4"" x 4.7" (192 x 188 x 120mm)
Dimensions (Enclosure) (H x W x D) - 6" x 6" x 4" (152 x 152 x 102mm)
LEDs Installed - 1 x Red (Reverse Polarity - 120V AC and 3 x Green ON (120V AC)

In the Box:

3118 Enclosure
Glands x 5
Labels
Mounting hardware
Instruction manual

*Sold as an Individual
