Description

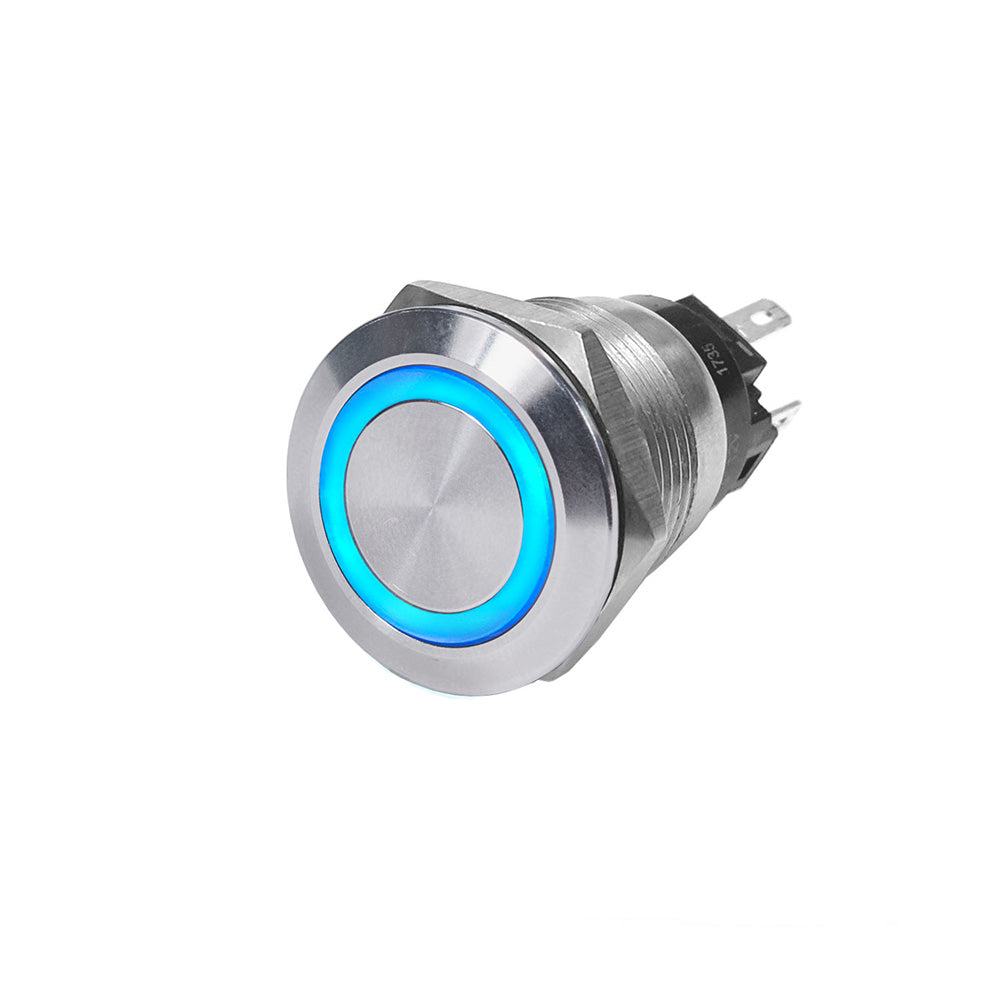

4161 SS Push Button Switch - Off-(On) - Blue - 10A

10A continuous
Single Pole Double Throw or Single Pole Single Throw
Can be wired for normally open or normally closed
Installs with .110inch quick connects (included in retail package)

Specifications

Action: OFF-(ON)
Amperage: 10A @ 12V DC
Nominal Voltage: 12V DC
Maximum LED Operating Current: 20mA
Minimum Operating Temperature: -10° C
Maximum Operating Temperature: 70° C
Minimum Storage Temperature: -55° C
Maximum Storage Temperature: 85° C
Illumination: Independent – Separate contacts for LED power
Mounting Hole: 19mm
Switching Cycles: 18,000
Termination: 5 – 0.110inch Quick Connect terminals
