Blue Sea Systems  |  SKU: EM-51809  |  Barcode: 632085050504

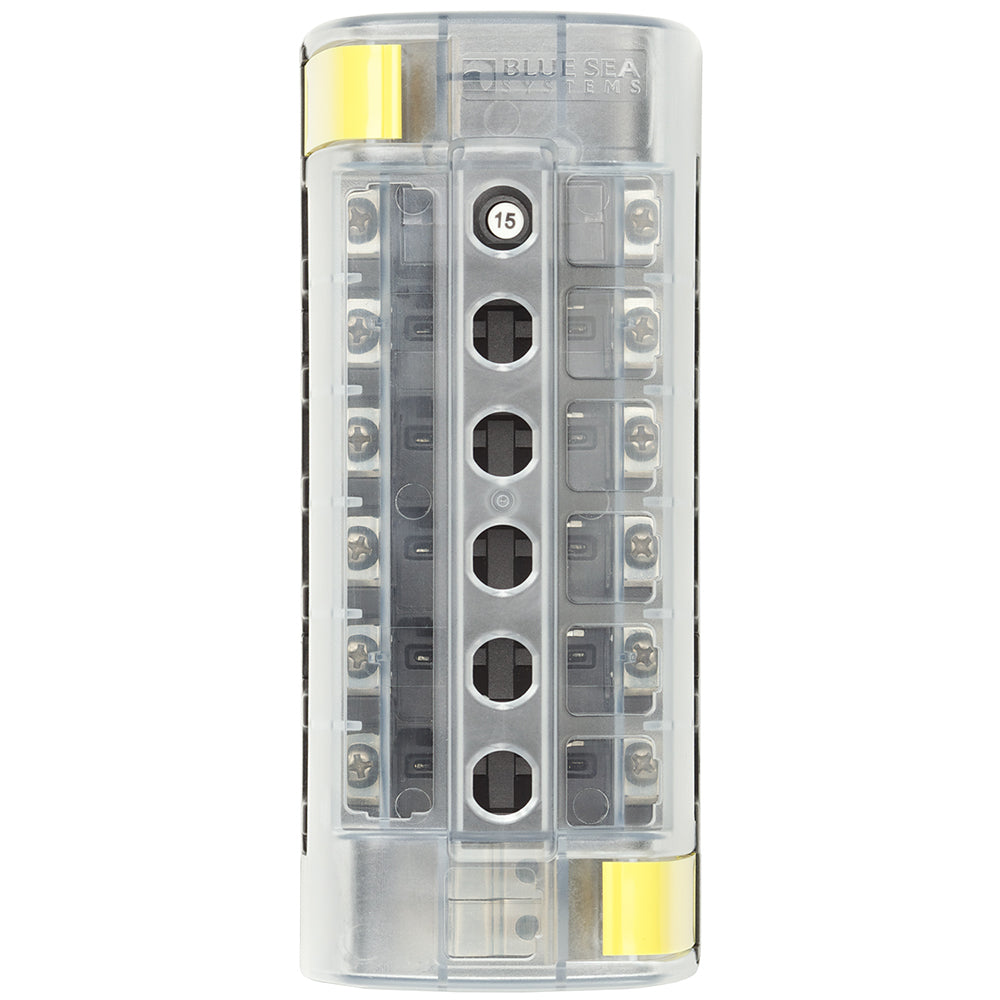

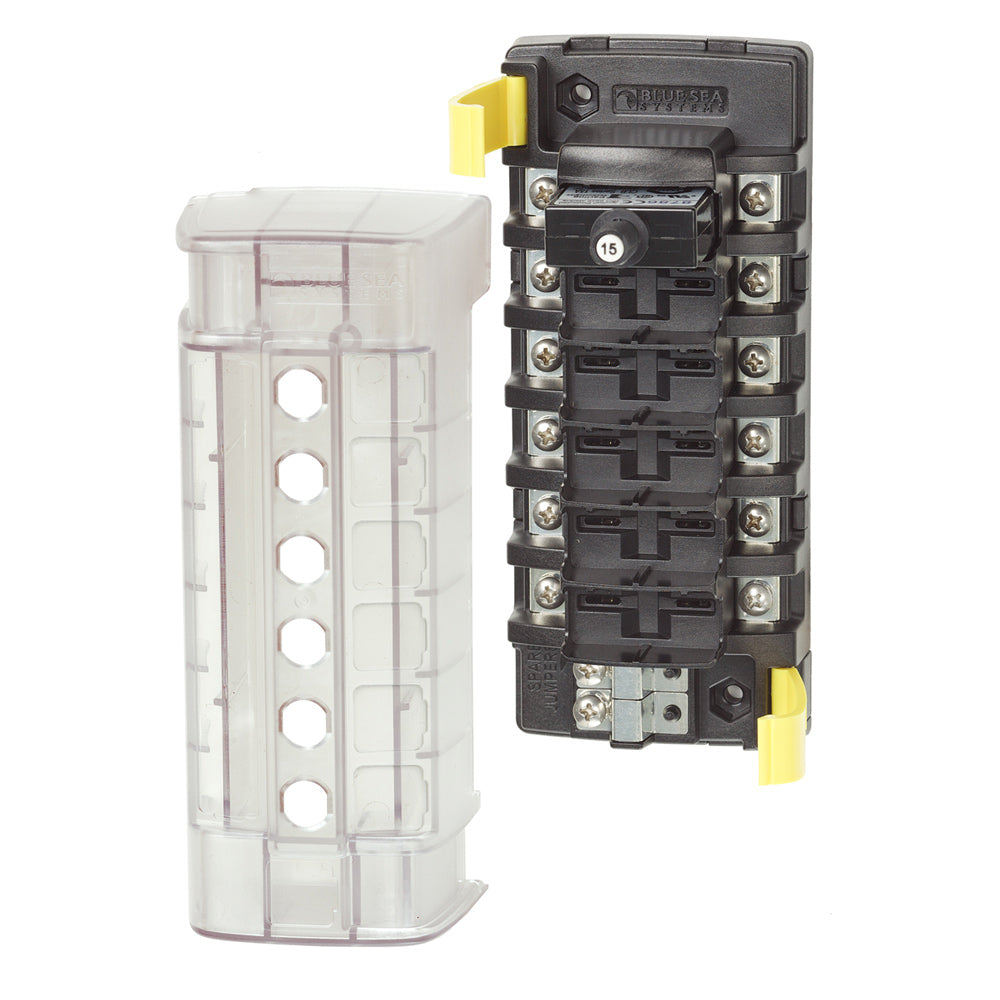

Blue Sea 5050 ST CLB Circuit Breaker Block - 6 Position [5050]

Sale price $66.99 Regular price $73.99

SHIPS SAME DAY BEFORE 3PM CST! Shipping Policy


Refund & Return Policy

Returns are accepted within 30 days after shipment. To be eligible for a return, items must be unused, uninstalled, and in their original packaging, and proof of purchase is required. The following items are not eligible for return: Installed or used products, clearance or final-sale items, trolling motors, programmed AIS units, KVH Starlink products that are registered or opened, special-order products, or products displaying the notice “This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.” in their description. Opened or unsealed DVDs, CDs, or cartography (unless defective) are not eligible for return. Return Merchandise Authorization (RMA) numbers are required for all returns. Learn more.

Shipping Policy

Egret Marine ships marine parts and accessories within the contiguous United States only. Orders are typically processed same day if placed before 3pm CST, excluding weekends and holidays. Learn more.

Product Details

ST CLB Circuit Breaker Block - 6 Position

Features

  • Quick connect clips allow circuit breakers to snap easily into place
  • Tin-plated copper busses and screw terminals
  • Clear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirements
  • Easy to open clip on cover
  • Breakouts allow wire access in two directions
  • Accepts ring terminals
  • Optional push button waterproof boots or dress nuts can be installed over cover


Specifications:
Circuits: 6
Maximum Amperage: 32A (per circuit) 40A (per jumped circuit group)
Maximum Voltage: 32V DC
Mounting: #8 Screw (M4) or #8 Nut
Source: Independent SourceMinimum Operating Temperature: -10° C
Maximum Operating Temperature: 60° C
Mounting Centers: 5.63"(143 mm)
Screw Terminal Type: #8-32 Screws with Captive Star Lock Washer
Height: 6.69"(169.93 mm)
Weight: 0.75lb (0.34 kg)

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • Amperage: 32/40a
  • Box Dimensions: 3"H x 5"W x 11"L WT: 0.8 lbs
  • UPC: 632085050504

Brochure (pdf)
