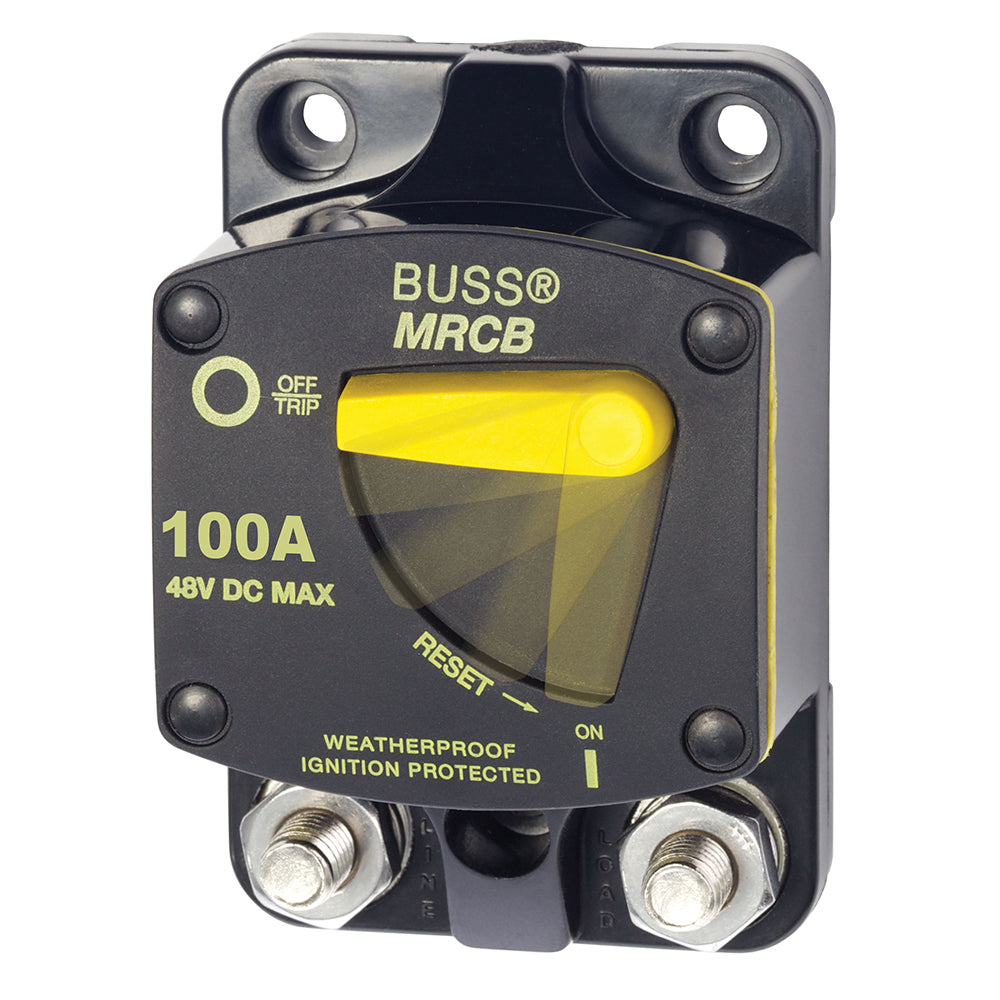

Blue Sea 7144 187 - Series Thermal Circuit Breaker - 100Amp [7144]

Name: Blue Sea 7144 187 - Series Thermal Circuit Breaker - 100Amp [7144]
Brand: Blue Sea Systems
SKU: EM-20564
Price: 94.99 USD
Availability: InStock

$94.99 $141.99

Refund & Return Policy

Returns are accepted within 30 days after shipment. To be eligible for a return, items must be unused, uninstalled, and in their original packaging, and proof of purchase is required. Installed or used products, clearance or final-sale items are not eligible for return. Return Merchandise Authorization (RMA) numbers are required for all returns. Learn more.

Shipping Policy

Egret Marine ships marine parts and accessories within the continental United States only. Orders are processed same day if placed before 3pm CST. or within 1 business days if placed after 3pm CST, excluding weekends and holidays. Learn more.

Description

187 - Series Thermal Circuit Breakers - Surface Mount

100 Amp Circuit Breaker

PN: 7144

Features:

Combines switching and circuit protection into a single device
All components meet SAE J1171 external ignition protection requirements
Clear, single lever operation
"Trip Free" design cannot be held "ON" during fault current condition
Waterproof
Recessed mounting holes for clean appearance
Large clearance around terminal studs accept heavy gauge wire lugs
Robust 5/16 terminals provide high torque connections
Large lever with vertical/horizontal orientation provides indication of trip status
Ignition protected - safe for installation aboard gasoline powered boats

Specifications
Circuit Breaker Class:	Type III - Switchable / Manual Reset - Trip Free
Type:	Thermally Responsive Bi-Metal Blade
Case Material:	Thermoset Polyester
Voltage Rating:	48 Volts DC Maximum
Interrupt Rating:	5,000 Amperes @12 Volts DC
	3,000 Amperes @24 Volts DC
	1,500 Amperes @42 Volts DC
Operating Temperature Range:	-25C° to +82C°
