Description

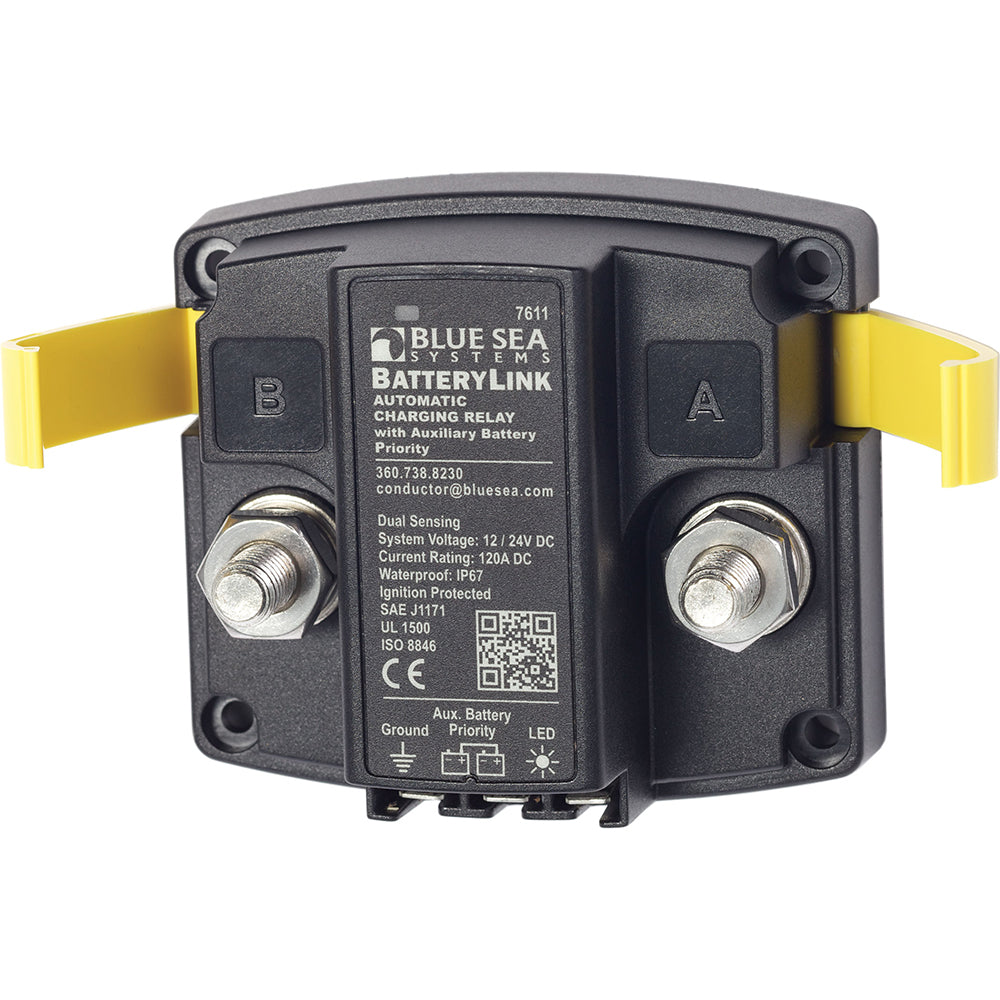

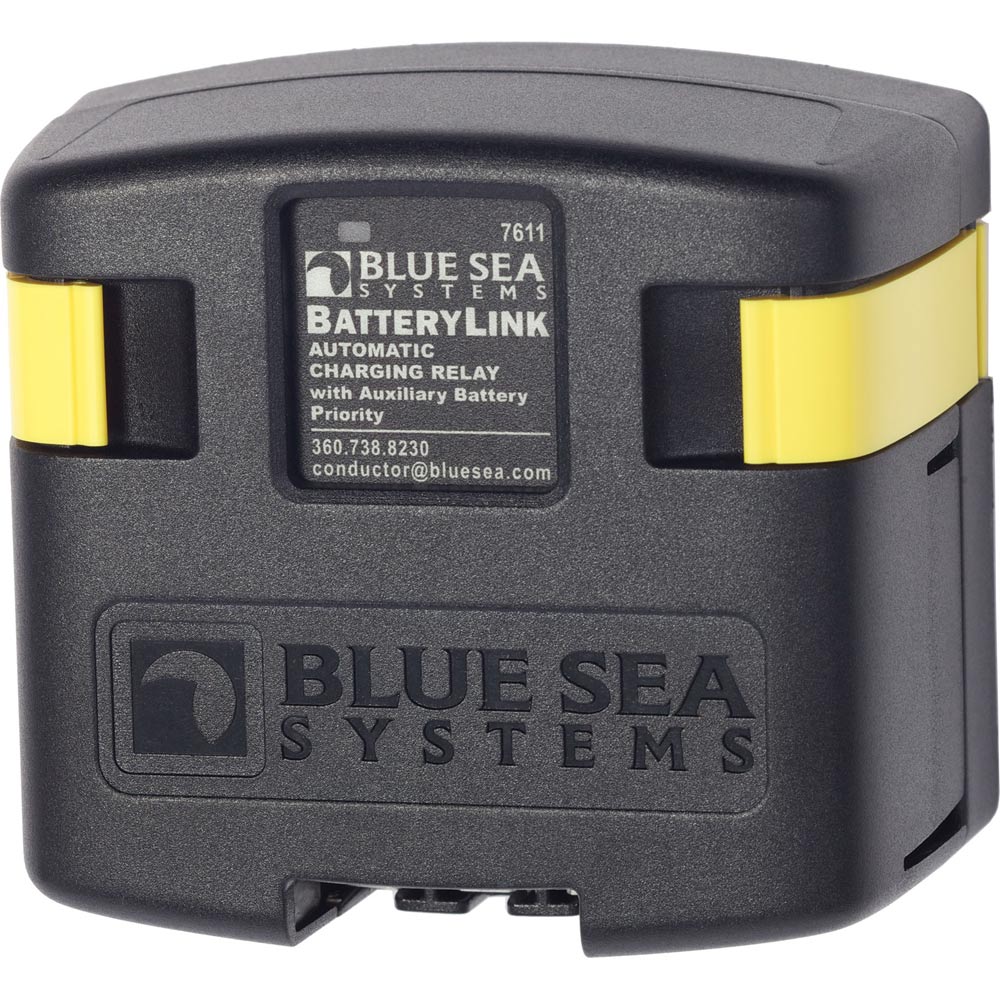

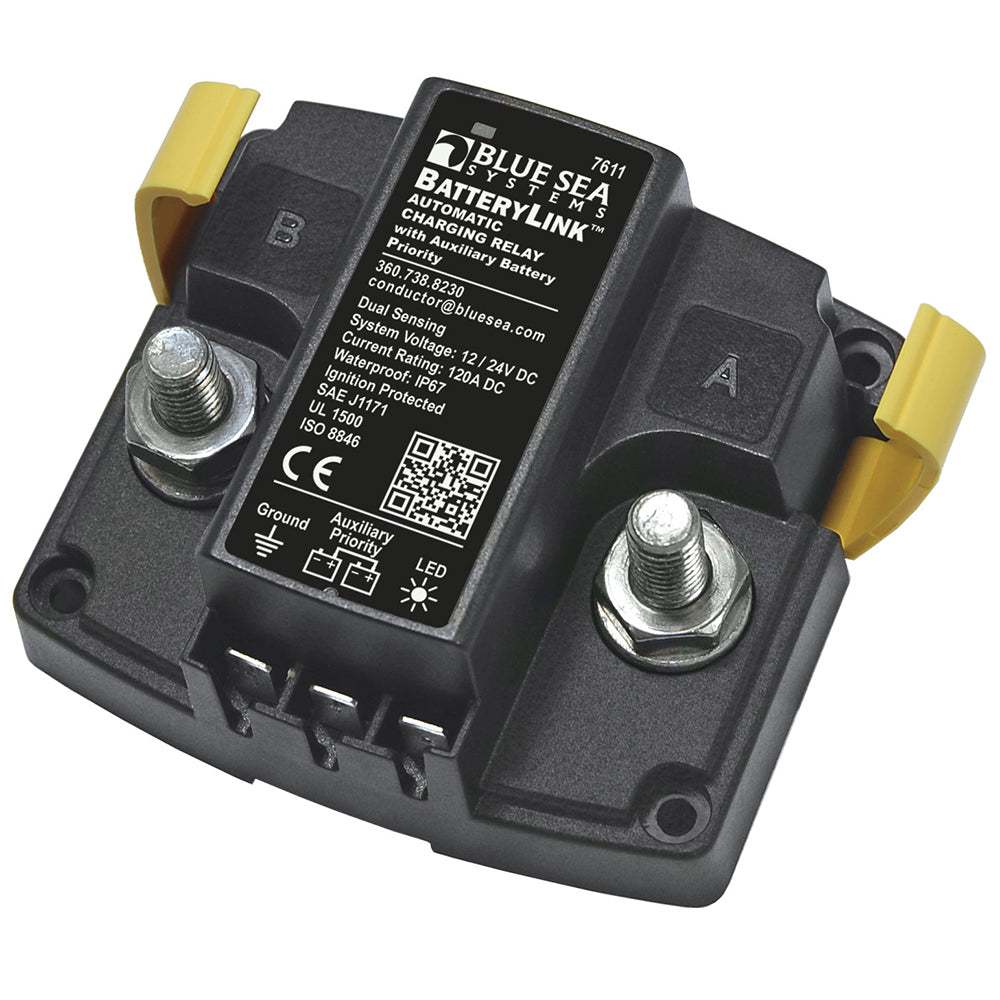

7611 DC BatteryLink™ Automatic Charging Relay - 120 Amp w/Auxiliary Battery Charging

Features:

120 Amp continuous rating
12/24V DC auto ranging voltage input
Senses charging on two battery banks
Side and bottom knockouts for cable connections
Clip-on cover insulates terminal connections
7/8" (22 mm) stud length to accept multiple cable terminals
Integrated LED indicates ACR status
1/4" x .032" male quick connect terminals for ground and optional features

Specifications:

Intermittent Rating: 5 min.: 210 Amps
Continuous Rating: 120 Amps
Nominal Voltage: 12/24 Volts DC
