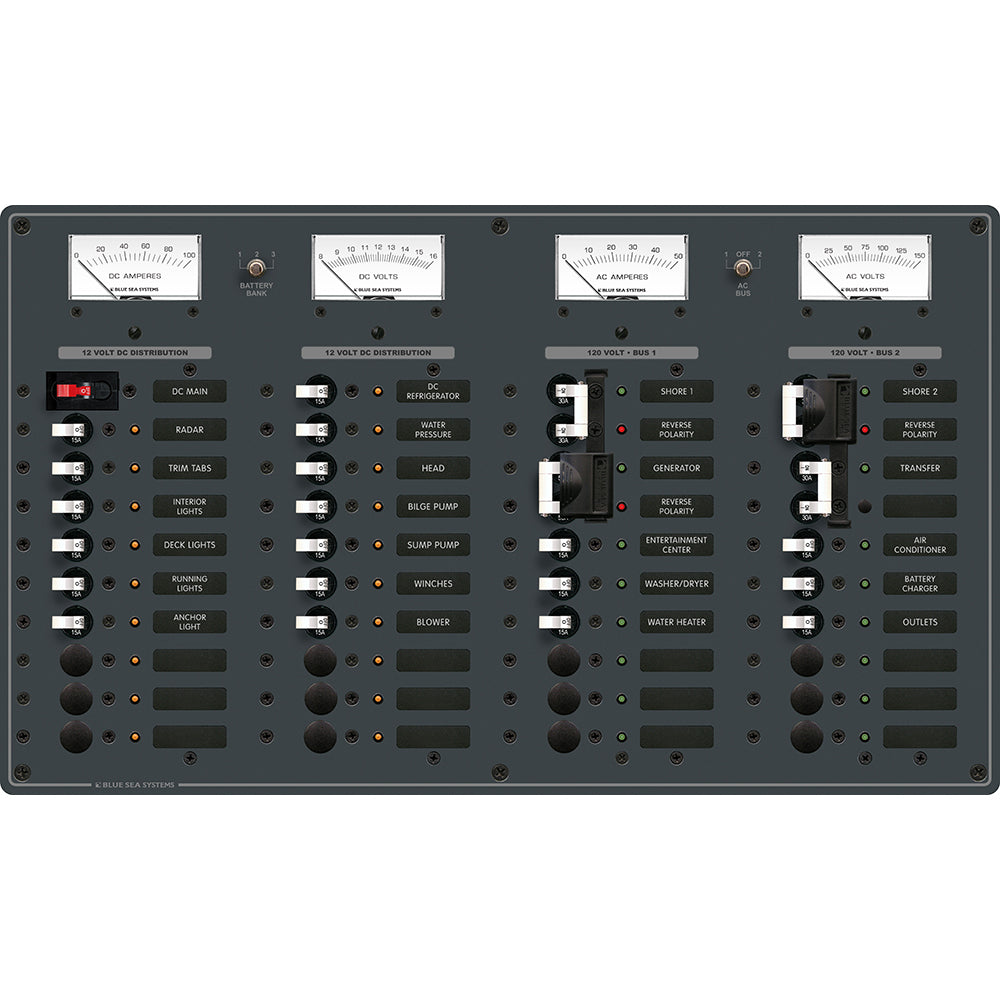

Blue Sea 8086 AC 3 Sources +12 Positions/DC Main +19 Position Toggle Circuit Breaker Panel - White Switches [8086]

Name: Blue Sea 8086 AC 3 Sources +12 Positions/DC Main +19 Position Toggle Circuit Breaker Panel - White Switches [8086]
Brand: Blue Sea Systems
SKU: EM-14572
Price: 1505.99 USD
Availability: InStock

$1,505.99 $2,654.99

Refund & Return Policy

Returns are accepted within 30 days after shipment. To be eligible for a return, items must be unused, uninstalled, and in their original packaging, and proof of purchase is required. Installed or used products, clearance or final-sale items are not eligible for return. Return Merchandise Authorization (RMA) numbers are required for all returns. Learn more.

Shipping Policy

Egret Marine ships marine parts and accessories within the continental United States only. Orders are processed same day if placed before 3pm CST. or within 1 business days if placed after 3pm CST, excluding weekends and holidays. Learn more.

Description

8086 AC 3 Sources +12 Positions/DC Main +19 Position Toggle Circuit Breaker Panel - White Switches

Features:

Includes set of 30 common AC and 30 common DC labels
All AC and DC buses installed, fully pre-wired
Label backlighting pre-installed
All LEDs installed
Maximum panel Amperage
- 100 Amperes DC
- 50 Amperes AC

AC Features:

Two separate AC load groups with transfer switch to combine into one load group
Switch allows Ammeter and Voltmeter to read either AC load group
Reverse polarity indicators on both AC load groups
Ready for installation of optional 4031 AC Isolation Cover
9353, 0-150 Volt AC Voltmeter
9630, 0-50 Amp AC Ammeter

DC Features:

100 Amp C-Series circuit breaker provides main circuit protection and switching for DC branch circuits
8003, 8-16 Volt DC Voltmeter
8017, 0-100 Amp DC Ammeter

Specifications:

AC Positions: Source Selectors +12
DC Positions: Main +19
120 Volts AC
12 Volts DC
(3) 30A - (1) 50A - (6) 15A AC Circuit Breakers
(1) 100A - (13) 15A DC Circuit Breakers

*Combined AC/DC panels require a AC Insulating Cover to meet ABYC Standards
