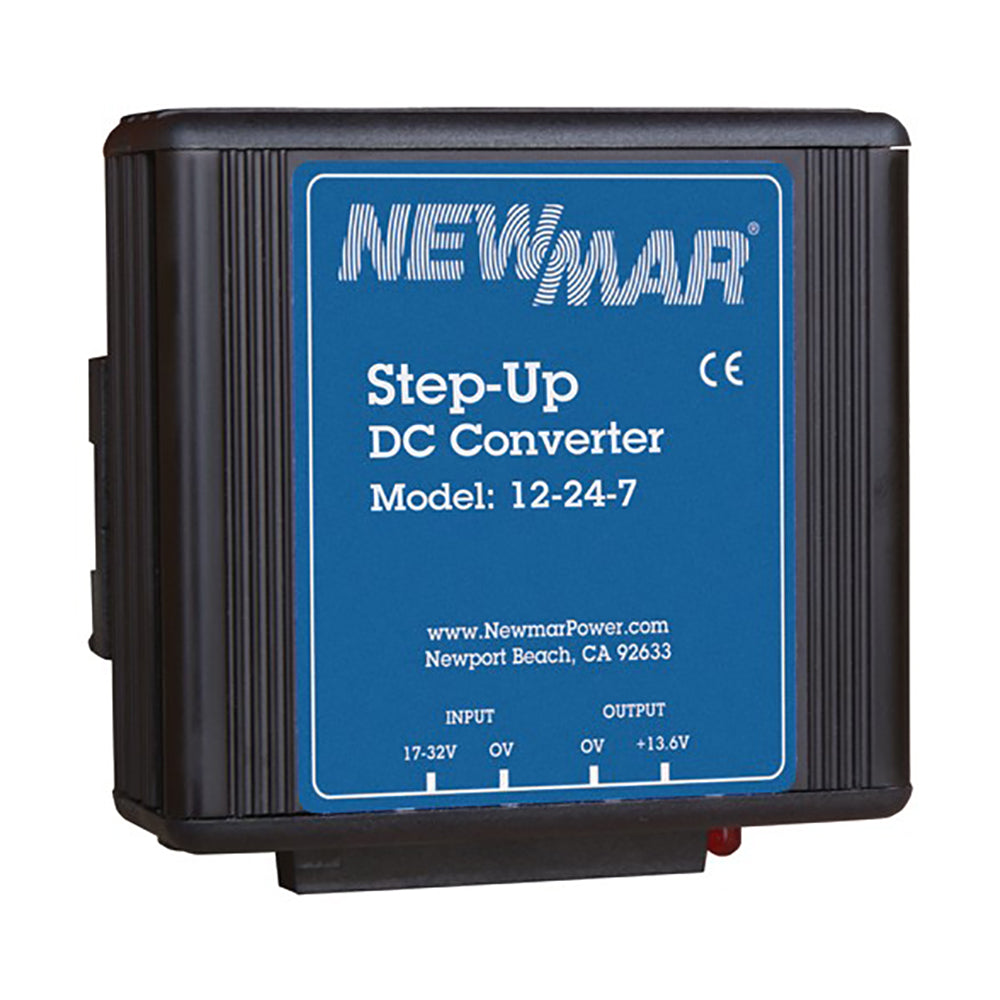

Furuno 12V-24V 7 Amp Converter f/DRS12AX X-Class Open Array - Newmar [NEW-12V-24V-7A]

Name: Furuno 12V-24V 7 Amp Converter f/DRS12AX X-Class Open Array - Newmar [NEW-12V-24V-7A]
Brand: Furuno
SKU: EM-65923
Price: 828.00 USD
Availability: OutOfStock

$828.00

Refund & Return Policy

Returns are accepted within 30 days after shipment. To be eligible for a return, items must be unused, uninstalled, and in their original packaging, and proof of purchase is required. Installed or used products, clearance or final-sale items are not eligible for return. Return Merchandise Authorization (RMA) numbers are required for all returns. Learn more.

Shipping Policy

Egret Marine ships marine parts and accessories within the continental United States only. Orders are processed same day if placed before 3pm CST. or within 1 business days if placed after 3pm CST, excluding weekends and holidays. Learn more.

Description

12V-24V 7 Amp Converter for DRS12AX X-Class Open Array - Newmar

Newmar 12-24-7 Step Up Dc-Dc Converter 7amp Conitnuos

These "UP" converters produce 24 volts from 12 volt systems and are ideal for managing dual voltage applications on marine vessels without having to install a 24 volt battery and dedicated charging system. Choose from two types depending on your application:

In the Standard, Non-Isolated Series the 12V input and 24V output share a common negative ground and are ideal when installing certain electronics that operate better on 24 volts when a robust 12 volt system exists. Models available in outputs of 7, 16 and 25 amps.

Standard, Non-Isolated Series

Intended for use on negative ground systems
10 -15 VDC input range
7 Amp output
Current limited, voltage spike suppression, automatic thermal shutdown and recovery

Specifications:

Input: 10 - 15V DC
Output: 27.2 VDC +/-5% at extreme temperature load, input, tolerance, etc.
Ripple: <100mV P-P
Regulation: +/- 5% Line/Load
Duty Cycle:
Intermittent: 2 minutes, 20% duty
Continuous: 24 hours, 100% duty
Operating Temp: -25º - 30º C, derate linearly from 30 to 0% @ 80º C

Mechanical

Efficiency: 93% - Typical.
Anodized aluminum, glass filled polycarbonate, dust water and impact resistance to IP533
Front panel terminal block
Output indicator: Green LED
