Iris ATOM A418 2MP IP HD PTZ Camera / Single Payload Low Light w/IR LED + 30x Optical Zoom [IRIS-A418]

Iris Innovations  |  SKU: EM-105970
Sold out
$256.01 off
$2,318.99 $2,575.00

Refund & Return Policy

Returns are accepted within 30 days after shipment. To be eligible for a return, items must be unused, uninstalled, and in their original packaging, and proof of purchase is required. The following items are not eligible for return: Installed or used products, clearance or final-sale items, trolling motors, programmed AIS units, KVH Starlink products that are registered or opened, special-order products, or products displaying the notice “This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.” in their description. Opened or unsealed DVDs, CDs, or cartography (unless defective) are not eligible for return. Return Merchandise Authorization (RMA) numbers are required for all returns. Learn more.

Shipping Policy

Egret Marine ships marine parts and accessories within the contiguous United States only. Orders are typically processed same day if placed before 3pm CST, excluding weekends and holidays. Learn more.

Product Details

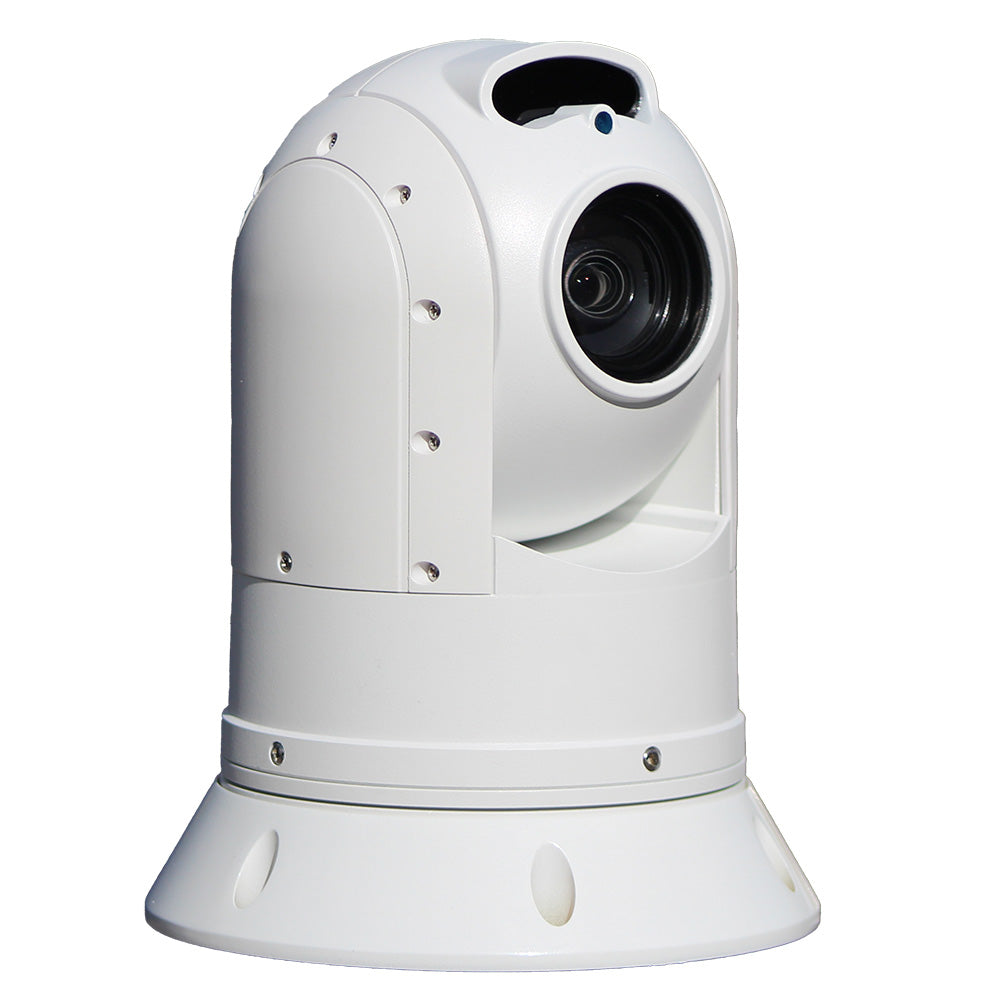

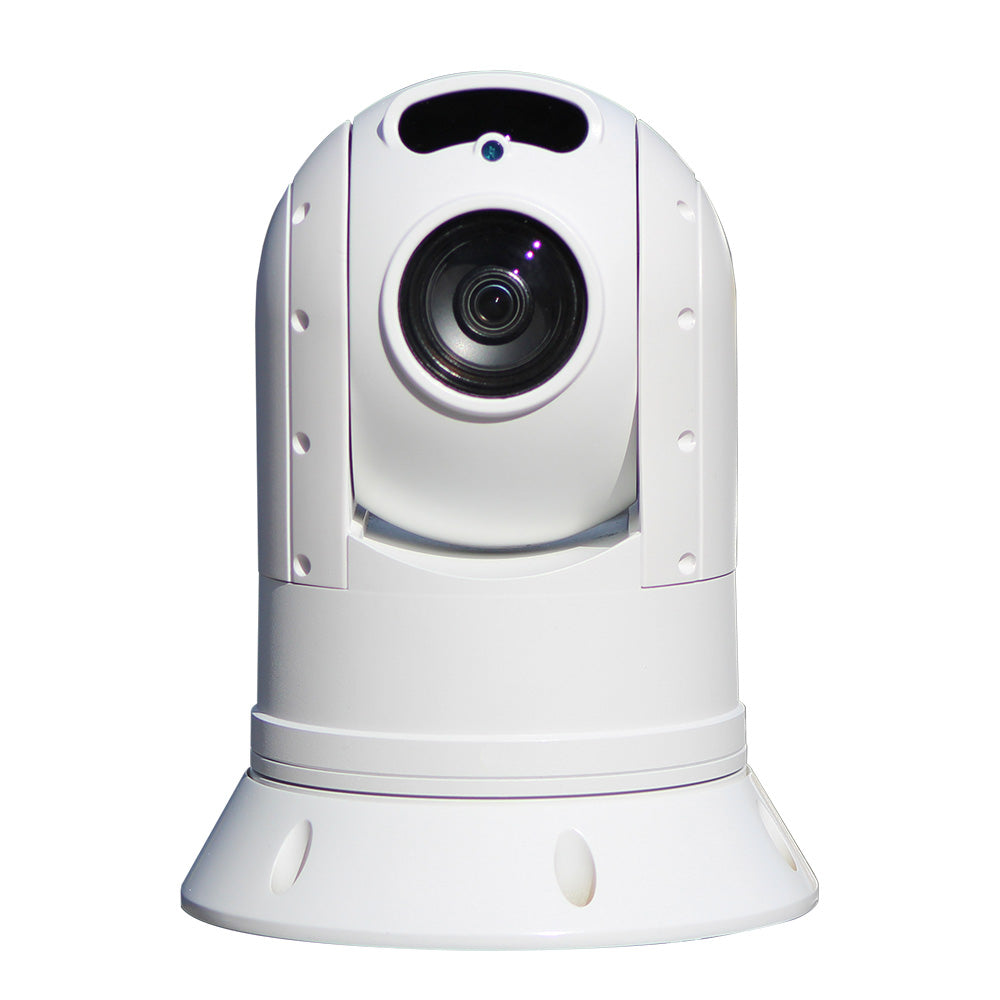

ATOM A418 2MP IP HD PTZ Camera/Single Payload Low Light with IR LED + 30x Optical Zoom

The Atom Range, A418 High Definition Visible Spectrum IP PTZ camera with 30x Optical Zoom from Iris Innovations. Available with side entry or base entry cable options, the A418’s high-definition camera module is built into a robust yet compact waterproof gimbal mount enclosure, designed to protect the unit from the harshest environmental conditions. The A418 features a high-end network camera module with leading digital image processing features such as noise reduction, image enhancement, and wide dynamic range technology and boasts a powerful 30x optical zoom lens to identify targets at extreme distances.

An array of high-power infrared LED illuminators is built into the brow of the camera to provide visibility in the dark to a range of up to 100 meters. The camera's image processing features work to boost the image gain in order to provide maximum clarity in low light.

As well as offering ultra-responsive pan and tilt control with proportional zoom operation, the camera boasts up to 255 user-preset positions and a range of scans and user-configurable automated tours. An RS485 Serial Data connection is also provided to maximize control options, meaning as well as via an NVR or computer, the camera can also be controlled from Iris’s CMAC range of camera management systems or CCTV joystick controllers supporting the Pelco-D protocol. With its rugged, compact footprint and extremely competitive pricing, the IP PTZ cameras are the perfect solution for vessels of all types and sizes and our industry-leading thermal imaging technology opens up a world of boating at night in safety. The A418 camera is both ONVIF compliant and NDAA compliant.

Features:

  • Visible Spectrum Camera 2MP HD Resolution 30x Optical Zoom
  • Miniature - Lightweight Compact Form Factor
  • Dimensions 206mm x 160mmø / 2Kg Weight
  • High Power Infrared LEDs - Up to 80m Range
  • True Day/Night Operation with IR Cut Switch
  • Up to 255 User Presets Supported
  • 4 x User Definable Patrols
  • User Definable Home Position
  • Side mount or Rear mount Waterproof Cable Connector
  • Push Lock Quick Connector - IP66
  • Features IP and RS485 Serial Data Control
  • 750mA @ +12VDC Power / 8.4W
  • IP66 Environmental Rating
  • Available in White, Black & Other Color Options

Technical Specifications:

  • Camera Resolution - 1920 x 1080P 2MP 25/30 frames/sec
  • Sensor - 1/2.8” High-Performance Low Illumination CMOS Sensor (IMX327)
  • Focal Length - 4.7mm 141mm
  • Image Enhancement - DWDR
  • IR Range - 4 x High Powered Infrared Lamps, 2 Groups (Low Beam / High Beam) Brown Glass Filter, Infrared Distance up to 100m (328ft)
  • Park Function - Supported
  • Video Format - AVI D1/720P/1080P (default)
  • Snapshot Storage - Optional - D1/720P/1080P (default)
  • Compression - H.264 / H.265
  • Bit Rate - 32Kbps 16Mbps
  • Frame Rate - 1-25fps(50Hz) / 1-30fps(60Hz)
  • Streams - Supports dual stream, main stream (1080P; 960P; 720P), Sub Stream (D1; VGA; CIF)
  • Cellular/WiFi/GPS - Optional
  • Protocols - Network Protocols: ONVIF Profile S / Others TBC Serial Data: RS485 / Pelco D
  • Power Requirements - +12vDC / 2000mA Max (IR ON) / 24W Max
