Maretron  |  SKU: EM-47021  |  Barcode: 873804001999

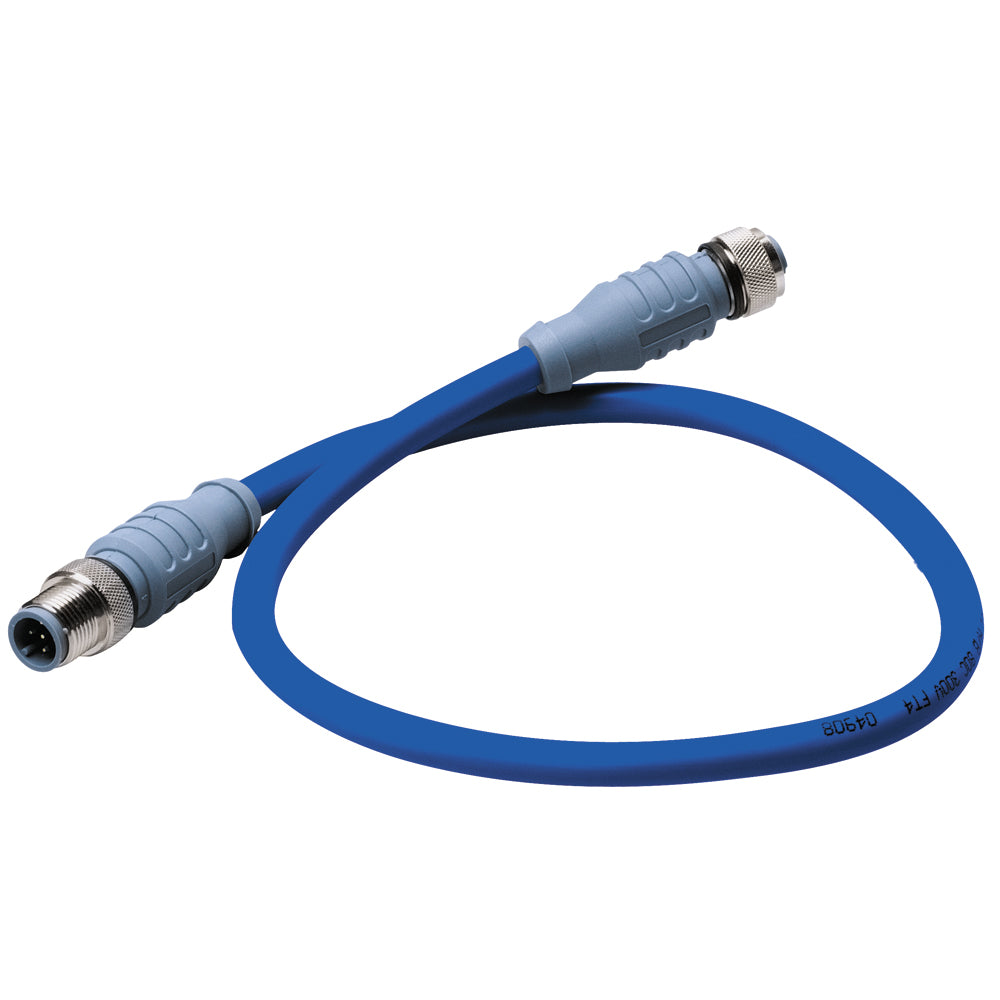

Maretron Mid Double-Ended Cordset - 10 Meter - Blue [DM-DB1-DF-10.0]

$75.00

Refund & Return Policy

Returns are accepted within 30 days after shipment. To be eligible for a return, items must be unused, uninstalled, and in their original packaging, and proof of purchase is required. Installed or used products, clearance or final-sale items are not eligible for return. Return Merchandise Authorization (RMA) numbers are required for all returns. Learn more.

Shipping Policy

Egret Marine ships marine parts and accessories within the continental United States only. Orders are processed same day if placed before 3pm CST. or within 1 business days if placed after 3pm CST, excluding weekends and holidays. Learn more.

Description

Maretron Mid Double-Ended Cordset - 10 M Blue

Mechanical:

  • Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
  • Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
  • Contact Mat/Plating: Brass/Gold
  • Coupling Nut Mat/Plating: Brass/Nickel
  • Connector Outside Diameter: 0.59"

    Electrical
  • Current Rating: 4.0 Amps
  • Voltage Rating: 250 V

    Cable

  • Outer Jacket Mat/Color: PVC/Gray
  • Conductor Insulation Material: PE (data pair), PVC (power pair)
  • Number of Conductors: 2x16 (1.29mm) AWG, Data 2x20 (0.81mm) AWG, 20 (0.81mm) AWG Drain Wire
  • Shielding (3 Levels): Foil (Overall), Foil (Power Pair), Foil (Data Pair)

    ENVIRONMENTAL
  • Protection Class: IEC IP68, NEMA 1,3,4,6P
  • Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)

    APPROVALS
  • (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V
  • (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80 deg C 300V FT4
  • NMEA: NMEA 2000 Approved
  • IEC: IEC 61162-3

    Specifications:

    • Connection Gender: Male-Female
    • Data Interface: NMEA 2000
    • Cable Length (Meters): 10m
    • NMEA 2000 Connectors: Backbone/Drop Cables
    • Box Dimensions: 2"H x 8"W x 8"L WT: 2.3 lbs
    • UPC: 873804001999
