Navico  |  SKU: EM-65017  |  Barcode: 9420024161937

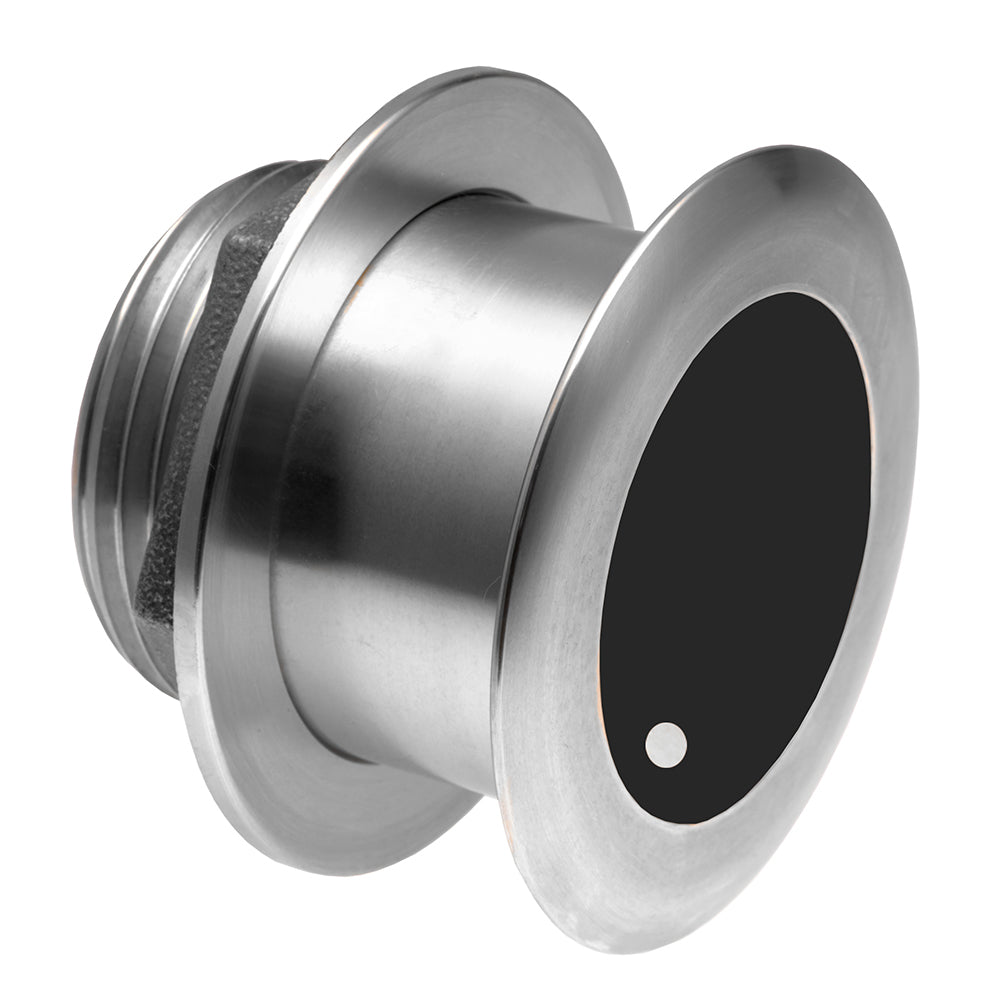

Navico xSonic SS175H-W/20 Stainless Steel 1KW 20 Tilted Element Transducer - 9 Pin [000-13782-001]

$1,754.00

Refund & Return Policy

Returns are accepted within 30 days after shipment. To be eligible for a return, items must be unused, uninstalled, and in their original packaging, and proof of purchase is required. Installed or used products, clearance or final-sale items are not eligible for return. Return Merchandise Authorization (RMA) numbers are required for all returns. Learn more.

Shipping Policy

Egret Marine ships marine parts and accessories within the continental United States only. Orders are processed same day if placed before 3pm CST. or within 1 business days if placed after 3pm CST, excluding weekends and holidays. Learn more.

Description

xSonic SS175H-W/20 Stainless Steel Chirp Transducer - 20° 1KW Tilted Element - 9 Pin Connector

SS175H-W/20 CHIRP Transducers enable bottom detection down to 300m+ with 5 to 10 times greater detail and Resolution so precise it's possible to distinguish between individual bait Fish, game Fish, and underwater structures.

*This Transducer is designed for smaller boats up to 36 feet (11 m).

Features

  • Frequencies: 130-210 kHz @ 25° constant beamwidth
  • 16° - 25° Deadrise
  • 300m+ Usable Depth
  • 6m+ or large Boat size with Steel or Aluminum hulls
  • Depth & Temperature
  • CHIRP Technology
  • High-Performance
  • Stainless Steel
  • Exclusive Transducer ID
  • 9-Pin Connector, 10M Cable

Specifications:

  • Temperature: Yes
  • Speed Included: No
  • Mounting Style: Thru-Hull
  • Imaging: Standard
  • Chirp: High Wide
  • Cable Length (Feet): 33'
  • Pins: 9
  • Box Dimensions: 8"H x 11"W x 12"L WT: 10.5 lbs
  • UPC: 9420024161937
