RAM Mount X-Grip Large Phone Mount w/Brake/Clutch Reservoir Base [RAM-B-174-UN10]

Name: RAM Mount X-Grip Large Phone Mount w/Brake/Clutch Reservoir Base [RAM-B-174-UN10]
Brand: RAM Mounting Systems
SKU: EM-75788
Price: 85.99 USD
Availability: OutOfStock

$85.99 $95.99

Refund & Return Policy

Returns are accepted within 30 days after shipment. To be eligible for a return, items must be unused, uninstalled, and in their original packaging, and proof of purchase is required. Installed or used products, clearance or final-sale items are not eligible for return. Return Merchandise Authorization (RMA) numbers are required for all returns. Learn more.

Shipping Policy

Egret Marine ships marine parts and accessories within the continental United States only. Orders are processed same day if placed before 3pm CST. or within 1 business days if placed after 3pm CST, excluding weekends and holidays. Learn more.

Description

X-Grip® Large Phone Mount with Brake/Clutch Reservoir Base

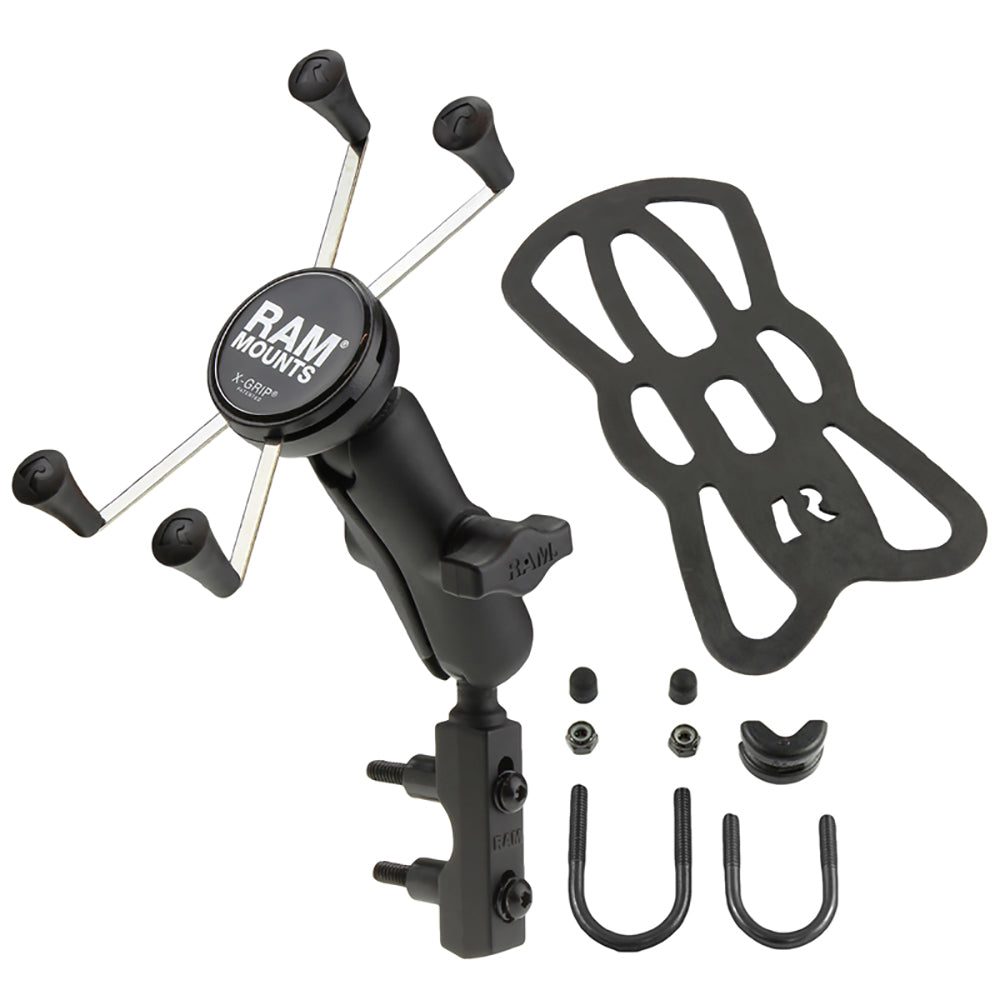

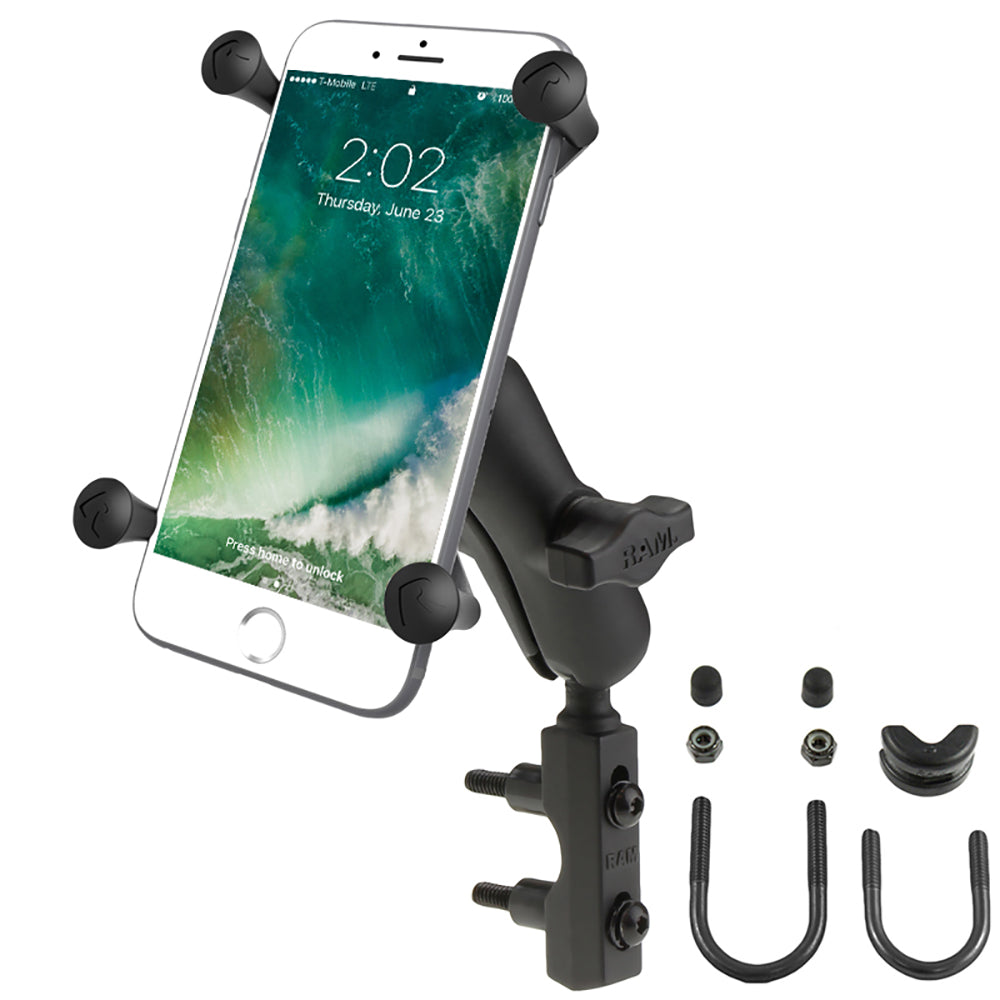

The RAM-B-174-UN10 consists of hardware for mounting to either brake/clutch reservoirs and rails that are 0.5" to 1.25" in diameter, double socket arm and universal X-Grip® large phone/phablet holder. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at both ends of the socket arm; this with a twist of the arm knob, allows you to move the X-Grip® mount to your optimum viewing position. The mounting hardware for brake/clutch reservoirs include both standard and metric mounting bolts. The included X-Grip® cradle has a clean and clever four leg design that sports great holding power without hiding your phone behind foam pads and plastic. The spring loaded X-Grip® cradle expands and contracts, allowing for a perfect custom fit of your cell phone. The perfect complement to the modern sleek interior of today's vehicles, the RAM X-Grip® is the cell phone cradle evolved. The X-Grip® includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.

Specifications:

Includes:

(QTY. 1), Optional Tether Included

Cradle Dimensions:

Minimum Width = 1.75" (Minimum Height = 5.5")
Maximum Width = 4.5" (Minimum Height = 3.25")
Depth = 0.875"
Material: Powder Coated Marine Grade Aluminum, Marine Grade Stainless Steel Components & High Strength Composite
Ball Size: B Size 1" Rubber Ball
Note: Part number reflects product packaged in a retail box for store shelf display. To see if the RAM-B-174-UN7 will mount to your motorcycle, check the hole spacing of the base against your clutch/brake reservoir. The holes centers have a minimum width of 0.94" and a maximum of 1.58". RAM highly recommends using the provided Tether for all open cockpit applications while using this product.
Weight: 1.0 lbs.

Quick Guide (pdf)
