Raymarine | SKU: EM-65170 | Barcode: 723193796276

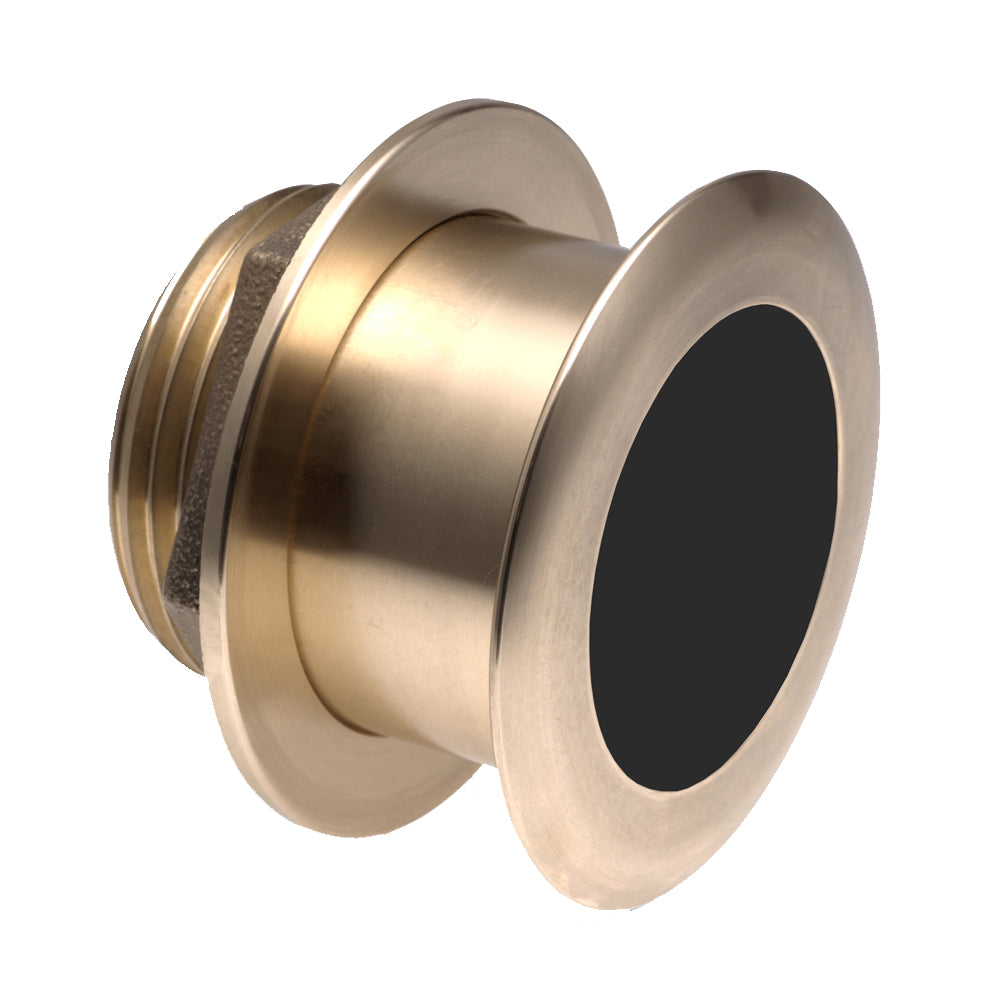

Raymarine B175H-W 20 Bronze Thru-Hull Tilted Element Transducer - 1kW [A80321]

Name: Raymarine B175H-W 20 Bronze Thru-Hull Tilted Element Transducer - 1kW [A80321]
Brand: Raymarine
SKU: EM-65170
Price: 1579.00 USD
Availability: InStock

$1,579.00

Refund & Return Policy

Returns are accepted within 30 days after shipment. To be eligible for a return, items must be unused, uninstalled, and in their original packaging, and proof of purchase is required. Installed or used products, clearance or final-sale items are not eligible for return. Return Merchandise Authorization (RMA) numbers are required for all returns. Learn more.

Shipping Policy

Egret Marine ships marine parts and accessories within the continental United States only. Orders are processed same day if placed before 3pm CST. or within 1 business days if placed after 3pm CST, excluding weekends and holidays. Learn more.

Description

B175H-W 1KW Bronze Thru Hull 20° Tilted Element

Installation: Thru Hull

Material: Urethane

Power (RMS): 1kW

Max Depth(ft): 800

Frequency (KHz): 150-250

Records: Depth and Temperature

Approved Hull Material: Fiberglass / Wood

Cable Length (ft/M): 6ft/2m

Supported deadrise: 16-24° Deadrise

ADDITIONAL NOTES: All wide beam products come with a 2M pigtail off the transducer. Requires a Transducer Extension cable for a Complete Transducer Installation. 10m Extension Cable part number A80327 and A80328 Single B75/B175 operation cable.

Specifications:
