Raymarine  |  SKU: EM-79491  |  Barcode: 723193706190

Raymarine B75M 600W Medium Frequency CHIRP Transducer 20 Tilt Single Operation Cable f/1 Transducer Install [A80036]

Regular price $959.00

SHIPS SAME DAY BEFORE 3PM CST! Shipping Policy


Refund & Return Policy

Returns are accepted within 30 days after shipment. To be eligible for a return, items must be unused, uninstalled, and in their original packaging, and proof of purchase is required. The following items are not eligible for return: Installed or used products, clearance or final-sale items, trolling motors, programmed AIS units, KVH Starlink products that are registered or opened, special-order products, or products displaying the notice “This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.” in their description. Opened or unsealed DVDs, CDs, or cartography (unless defective) are not eligible for return. Return Merchandise Authorization (RMA) numbers are required for all returns. Learn more.

Shipping Policy

Egret Marine ships marine parts and accessories within the contiguous United States only. Orders are typically processed same day if placed before 3pm CST, excluding weekends and holidays. Learn more.


Product Details

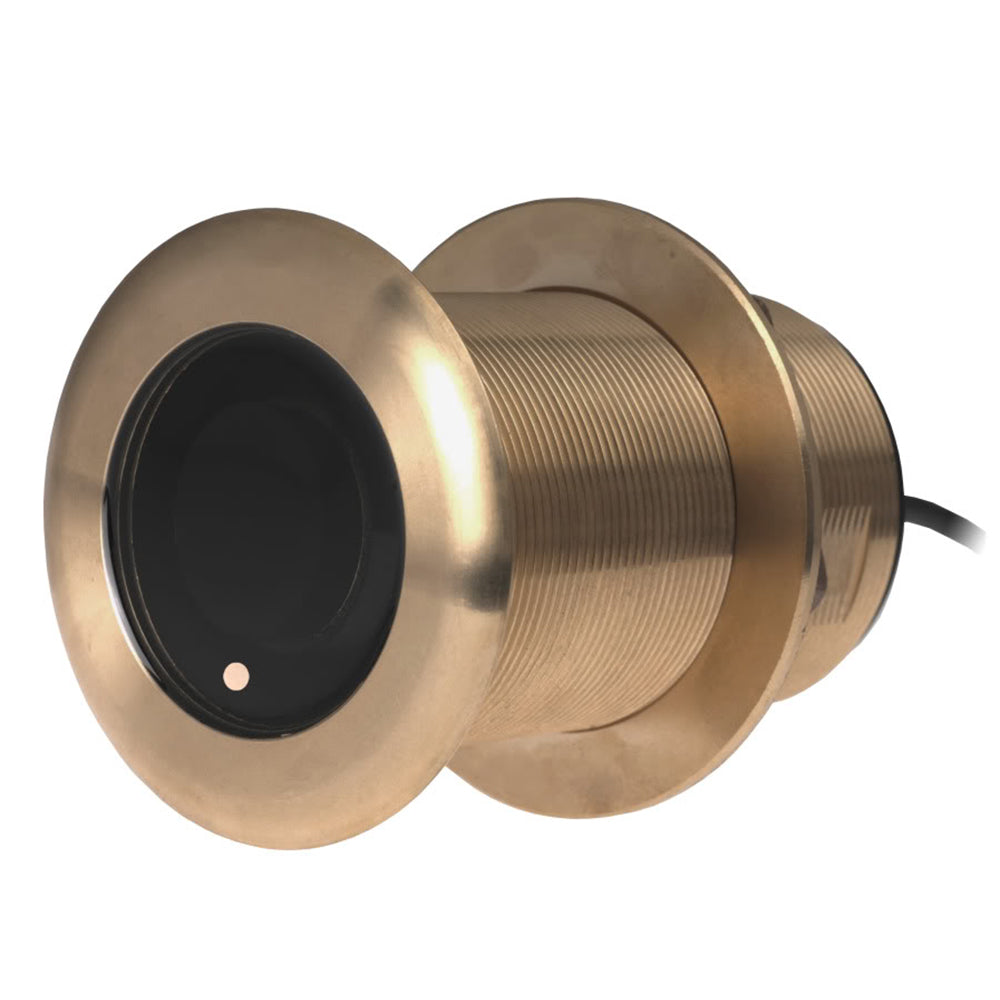

B75M 600W Medium Frequency CHIRP Transducer 20° Tilt Single Operation Cable for 1 Transducer Install

The B75's offer high resolution benefits of CHIRP technology at an affordable price. Available in a number of low-profile, tilted element configurations these transducers are great options for small and medium sized trailerable boats. They also offer wider beam angles than some more expensive transducers, providing greater coverage below the vessel.

Specifications:

  • Beam: 24 to 16 Degrees Medium-Frequency
  • Deadrise Angle: 16 to 24 Degree
  • Frequency: 80-130 kHz Medium Frequency CHIRP
  • Material: Bronze
  • Maximum Depth: 900'
  • Sonar: CHIRP Sonar, Depth and Temperature
  • Type: Thru-Hull

Specifications:

  • Mounting Style: Thru-Hull
  • Imaging: Standard
  • Chirp: Medium
  • Temperature: Yes
  • Speed Included: No
  • Box Dimensions: 5"H x 8"W x 12"L WT: 6.6 lbs
  • UPC: 723193706190
