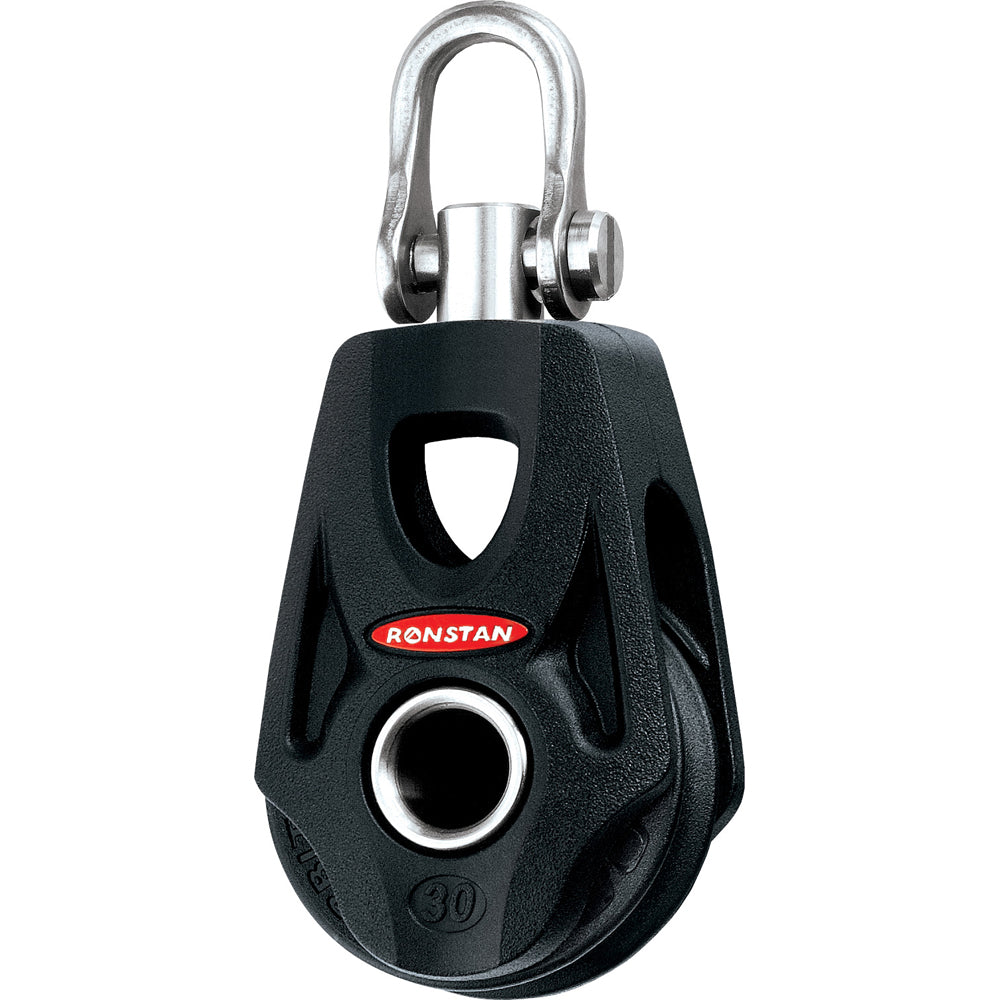

Ronstan Series 30 Ball Bearing Orbit Block - Single - Becket - Swivel Shackle Head [RF35100]

Name: Ronstan Series 30 Ball Bearing Orbit Block - Single - Becket - Swivel Shackle Head [RF35100]
Brand: Ronstan
SKU: EM-55173
Price: 24.54 USD
Availability: InStock

$24.54 $28.87

Refund & Return Policy

Returns are accepted within 30 days after shipment. To be eligible for a return, items must be unused, uninstalled, and in their original packaging, and proof of purchase is required. Installed or used products, clearance or final-sale items are not eligible for return. Return Merchandise Authorization (RMA) numbers are required for all returns. Learn more.

Shipping Policy

Egret Marine ships marine parts and accessories within the continental United States only. Orders are processed same day if placed before 3pm CST. or within 1 business days if placed after 3pm CST, excluding weekends and holidays. Learn more.

Description

Series 30 Ball Bearing Orbit Block - Single - Becket - Swivel Shackle Head

Ball Bearing Orbit Blocks boast the highest strength-to-weight ratio available. This is achieved through all-composite reinforced polymer materials and multiple attachment options.
Their precision design provides the optimum number of ball bearings for minimum friction while weight reduction is achieved through the use of fiber-reinforced composites in the block head, cleat arms and beckets.

Features:

Lightweight
Highest working load in its class
Secure, versatile and secure attachement
Low profile and compact
Ultra low profile thru-sheave becket
Low friction 2-stage ball bearing system provides consistent performance over the full working load range

Applications:

Mainsheet systems and spinnaker sheets on dinghies to 5M(16')
Halyard, vang and backstay applications on boats to 5M(16')
Control line applications on larger yachts

Materials:

Sheave: High compression strength carbon black Acetal
Ball Bearings: High compression strength Acetal
Frame/Cheeks: Toughened, glass fiber reinforced Nylon
Link: UV stabilized, multi-strand impregnated SK75 Dyneema®

Specifications:
Sheave Ø: 30mm(1-3/16")
Max. Rope Ø: 8mm(5/16")
M.W.L.: 300kg(660lbs)
B. L.: 600kg(1,320lbs)
Weight: 32g(1.1oz)

Quick Guide (pdf)
