Ronstan Series 40 Ball Bearing Block - Single - Universal Head [RF40100]

Name: Ronstan Series 40 Ball Bearing Block - Single - Universal Head [RF40100]
Brand: Ronstan
SKU: EM-55210
Price: 33.11 USD
Availability: InStock

$33.11 $38.95

Refund & Return Policy

Returns are accepted within 30 days after shipment. To be eligible for a return, items must be unused, uninstalled, and in their original packaging, and proof of purchase is required. Installed or used products, clearance or final-sale items are not eligible for return. Return Merchandise Authorization (RMA) numbers are required for all returns. Learn more.

Shipping Policy

Egret Marine ships marine parts and accessories within the continental United States only. Orders are processed same day if placed before 3pm CST. or within 1 business days if placed after 3pm CST, excluding weekends and holidays. Learn more.

Description

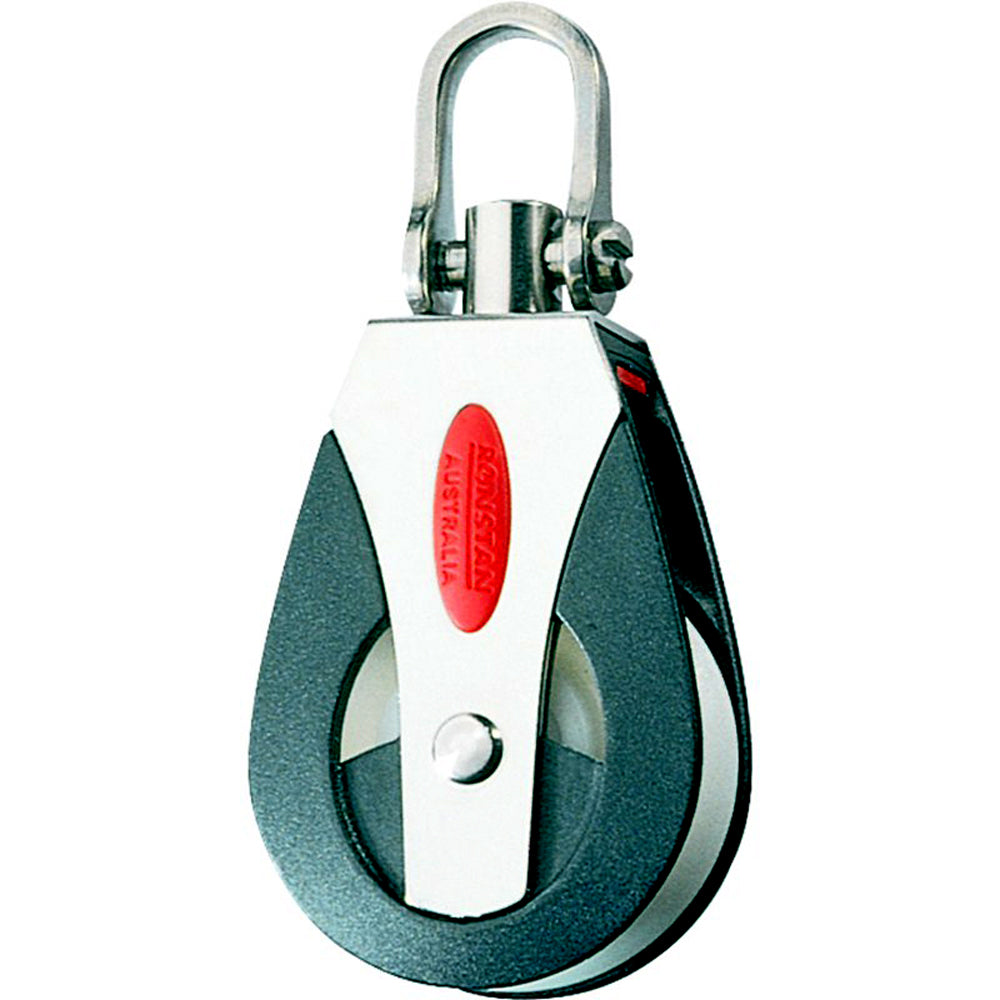

Series 40 Ball Bearing Block - Single - Universal Head

Sheaves running on Acetal or Torlon® ball bearings provide high performance & low friction. The 2-stage ball bearing system provides consistent performance over the full load range.Captive Lock universal head can be fixed in either of two planes, or free to swivel as required.

Features:

Low friction Acetal or Torlon® bearing system
Lightweight
Cheek cut-outs for easy bearing maintenance
Captive Lock universal head
Slotted pin shackle eliminates fouled lines

Applications:

Mainsheet
Halyard
Vang
Spinnaker control lines on off-the-beach catamarans, one design classes and sportsboats up to 8M(26')

Materials:

U.V. Stabilized Acetal sheaves
Acetal ball bearings
Impact and U.V. resistant, fiber reinforced Nylon cheeks
Grade 316 stainless steel load strap and head fitting

Specifications:
Sheave Ø: 40mm(1-9/16")
Max. Rope Ø: 10mm(7/16")
Pin Ø: 5mm(3/16")
M.W.L.: 350kg(770lbs)
B. L.: 1,000kg(2,200lbs)
Weight: 70g(2.5oz)
