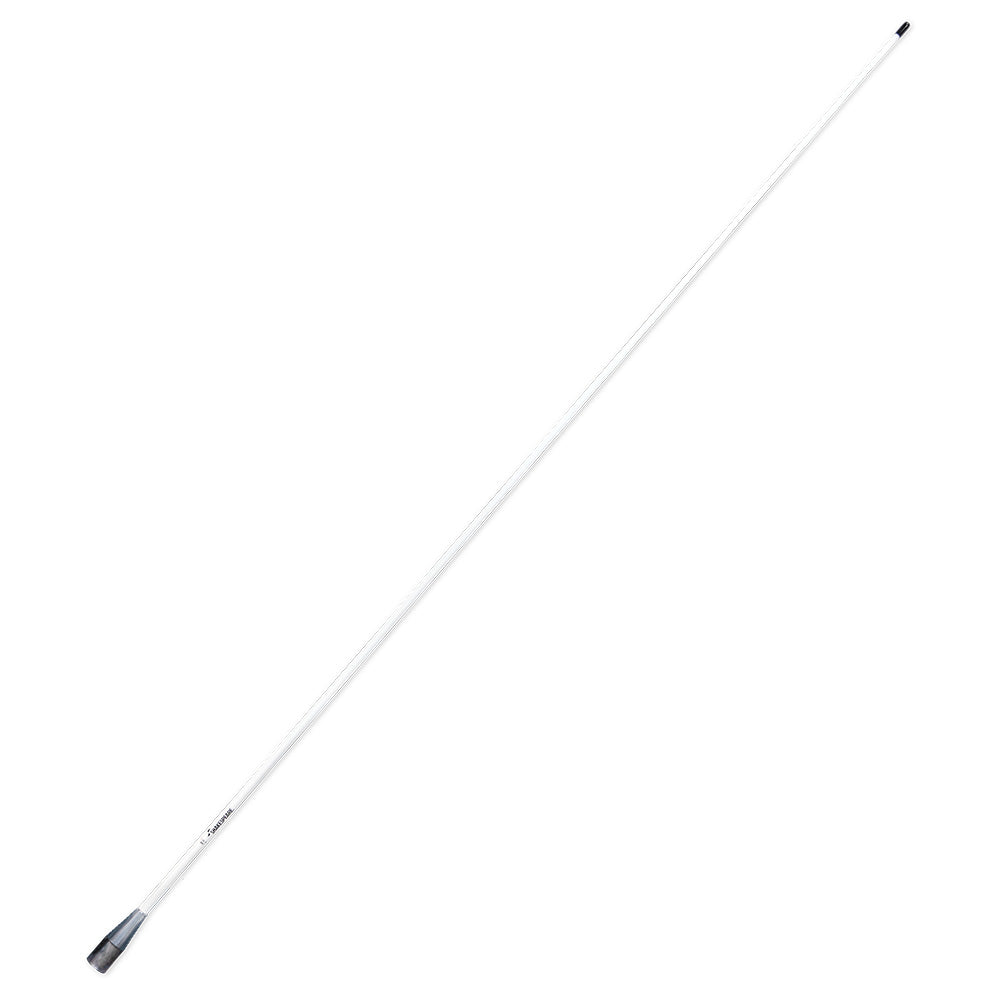

Shakespeare 396-1 5' VHF Antenna [396-1]

Name: Shakespeare 396-1 5' VHF Antenna [396-1]
Brand: Shakespeare
SKU: EM-10597
Price: 176.99 USD
Availability: InStock

$176.99 $199.99

Refund & Return Policy

Returns are accepted within 30 days after shipment. To be eligible for a return, items must be unused, uninstalled, and in their original packaging, and proof of purchase is required. Installed or used products, clearance or final-sale items are not eligible for return. Return Merchandise Authorization (RMA) numbers are required for all returns. Learn more.

Shipping Policy

Egret Marine ships marine parts and accessories within the continental United States only. Orders are processed same day if placed before 3pm CST. or within 1 business days if placed after 3pm CST, excluding weekends and holidays. Learn more.

Description

Style 396-1 VHF 3dB

Center-fed 1/2-wave coaxial sleeve

Outstanding, basic 3dB antenna designed to reduce signal fading in rough seas. This is probably the most widely used antenna on Coast Guard vessels.

Brass and copper elements

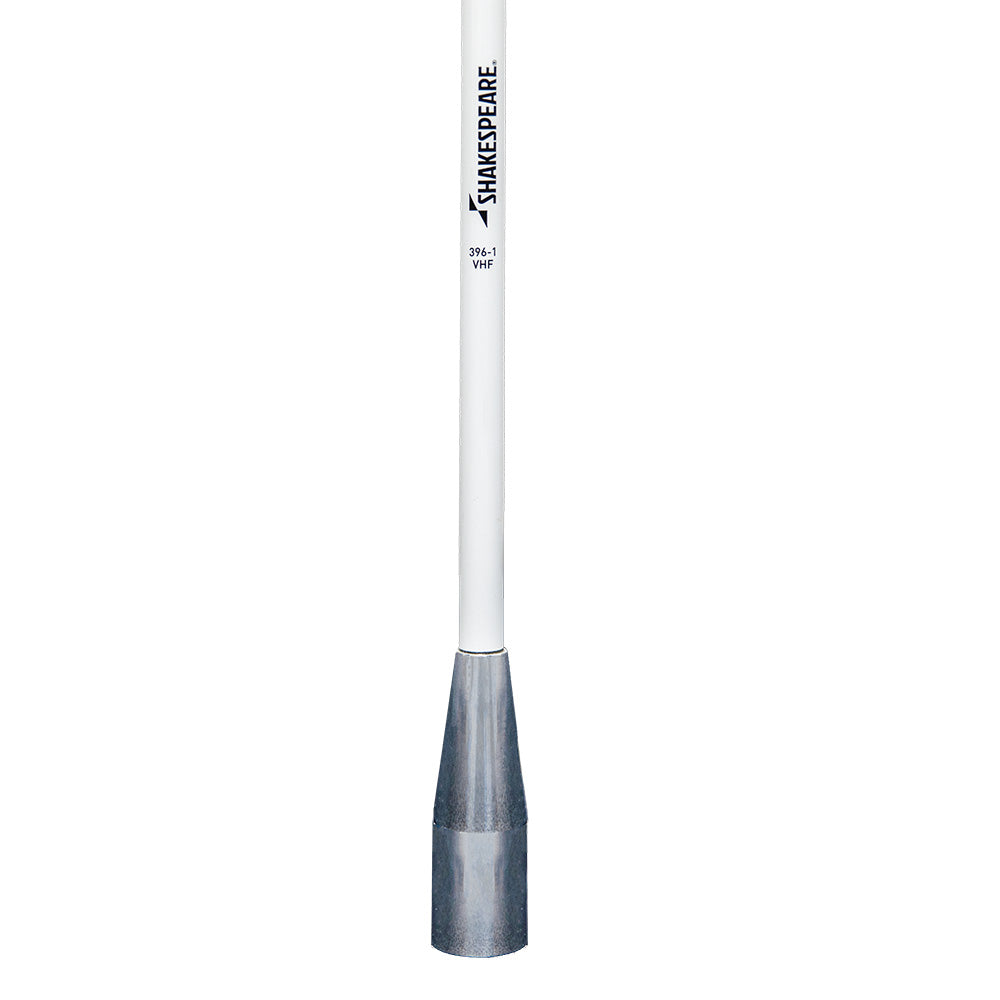

Chrome-plated brass ferrule with standard 1-14 thread
Includes 15' RG-58 cable and a PL-259 connector
Suggested mount: Style 4187 Ratchet Mount
One section

Technical Specifications:

Frequency:	VHF Marine band
Bandwidth:	(within 2.0:1 SWR): 5 MHz
SWR:	1.5:1 at 156.8 MHz
Impedance	(Ohms): 50
Gain:	3 dB
Max Input (Watts):	50
DC Ground:	NO
Termination:	15' RG-58 cable
Height (feet):	5
Polarization:	Vertical
Radiation pattern:	Omni-directional
