Shakespeare 5101 8 Classic VHF Antenna w/15' RG-58 Cable - White [5101]

Name: Shakespeare 5101 8 Classic VHF Antenna w/15' RG-58 Cable - White [5101]
Brand: Shakespeare
SKU: EM-13267
Price: 95.99 USD
Availability: InStock

$95.99 $119.99

Refund & Return Policy

Returns are accepted within 30 days after shipment. To be eligible for a return, items must be unused, uninstalled, and in their original packaging, and proof of purchase is required. Installed or used products, clearance or final-sale items are not eligible for return. Return Merchandise Authorization (RMA) numbers are required for all returns. Learn more.

Shipping Policy

Egret Marine ships marine parts and accessories within the continental United States only. Orders are processed same day if placed before 3pm CST. or within 1 business days if placed after 3pm CST, excluding weekends and holidays. Learn more.

Description

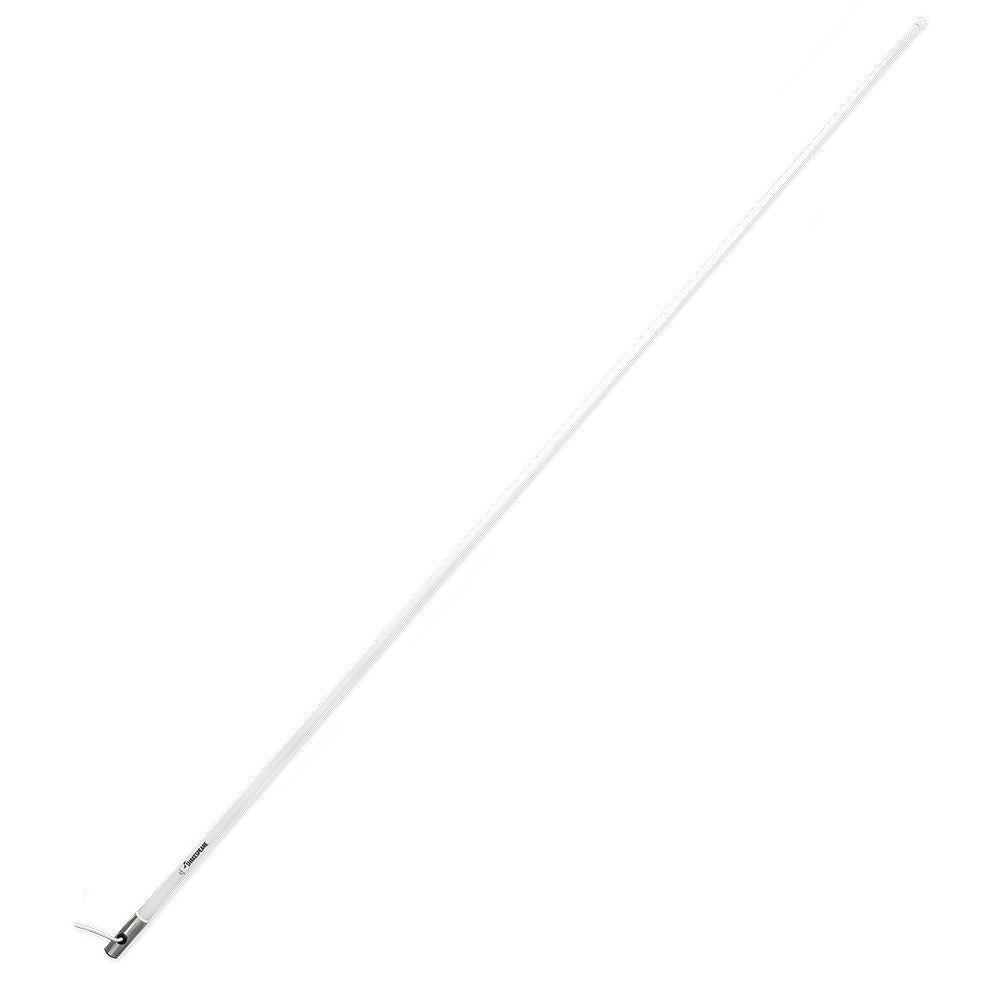

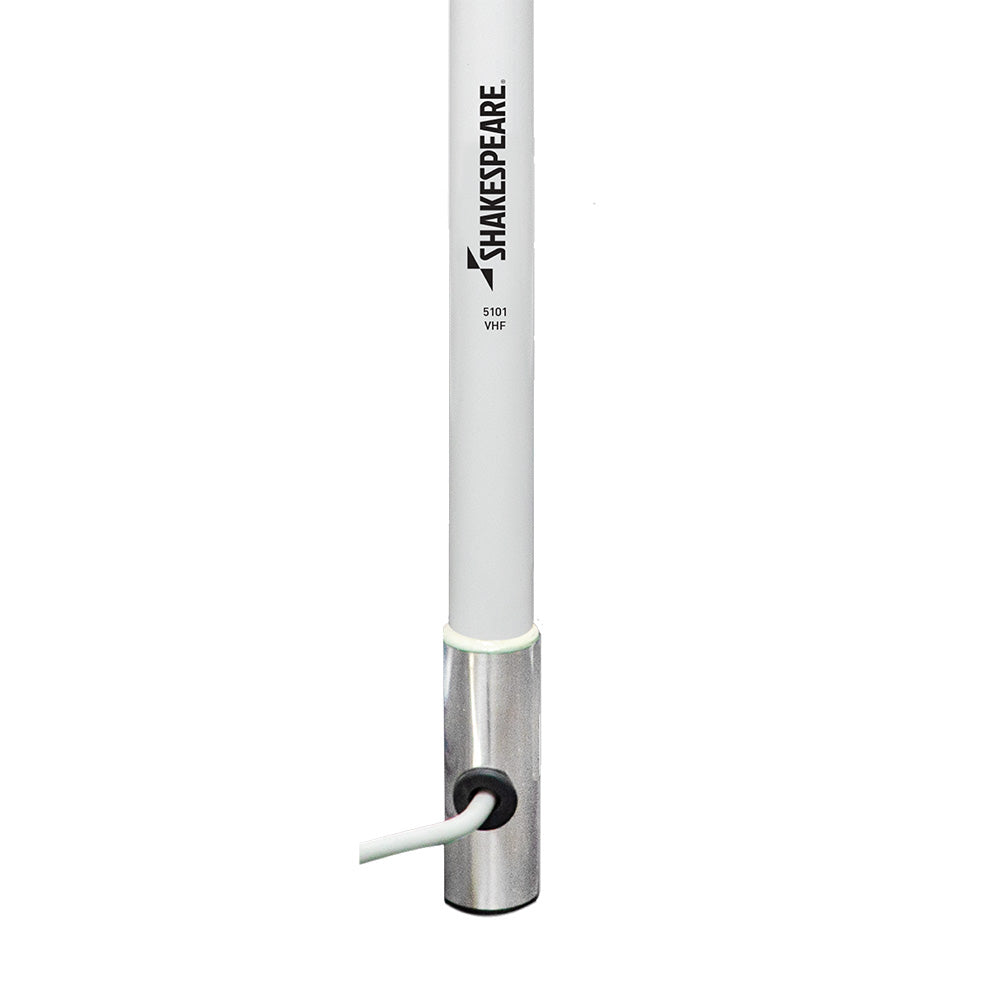

5101 8’ Classic VHF Antenna with 15' RG-58 Cable - White - Reduced Length Version

END-FED WITH MATCHING STUB

A standard of excellence in an economical antenna! Shakespeare brings you the best of the high-end features in an 8' antenna with a brass element and a smooth, high-gloss, polyurethane finish that won't turn yellow in the sun. This antenna delivers not only performance, but superb value.

Features:

Brass and copper elements
Chrome-plated brass ferrule with standard 1"-14 thread
Includes 15' RG-58 cable and a PL-259 connector
Suggested mount: Shakespeare Style 4187 Ratchet Mount, or use a Shakespeare Style 410-R Mounting Kit plus a Style 4008 Extension Mast to form a 16' antenna system
One section
Shakespeare Limited Warranty: 2 years

Technical Specifications:

Frequency: VHF Marine Band
Bandwidth: (within 2.01 SWR): 5 MHz
SWR: 1.5:1 at 156.8 MHz
Impedance: (Ohms): 50
Gain: 6 dB
Max. Input (Watts): 50
DC Ground: YES - however, the antenna will read "open circuit" when tested with an ohmmeter.
Termination: 15' RG-58 cable
Height (feet): 8'
Polarization: Vertical
Radiation pattern: Omni-directional
