Shakespeare  |  SKU: EM-55773  |  Barcode: 719441900960

Shakespeare Cellular/Wi-Fi World Band Galaxy Antenna [5239]

Sale price $186.99 Regular price $244.99

SHIPS SAME DAY BEFORE 3PM CST! Shipping Policy


Refund & Return Policy

Returns are accepted within 30 days after shipment. To be eligible for a return, items must be unused, uninstalled, and in their original packaging, and proof of purchase is required. The following items are not eligible for return: Installed or used products, clearance or final-sale items, trolling motors, programmed AIS units, KVH Starlink products that are registered or opened, special-order products, or products displaying the notice “This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.” in their description. Opened or unsealed DVDs, CDs, or cartography (unless defective) are not eligible for return. Return Merchandise Authorization (RMA) numbers are required for all returns. Learn more.

Shipping Policy

Egret Marine ships marine parts and accessories within the contiguous United States only. Orders are typically processed same day if placed before 3pm CST, excluding weekends and holidays. Learn more.

Product Details

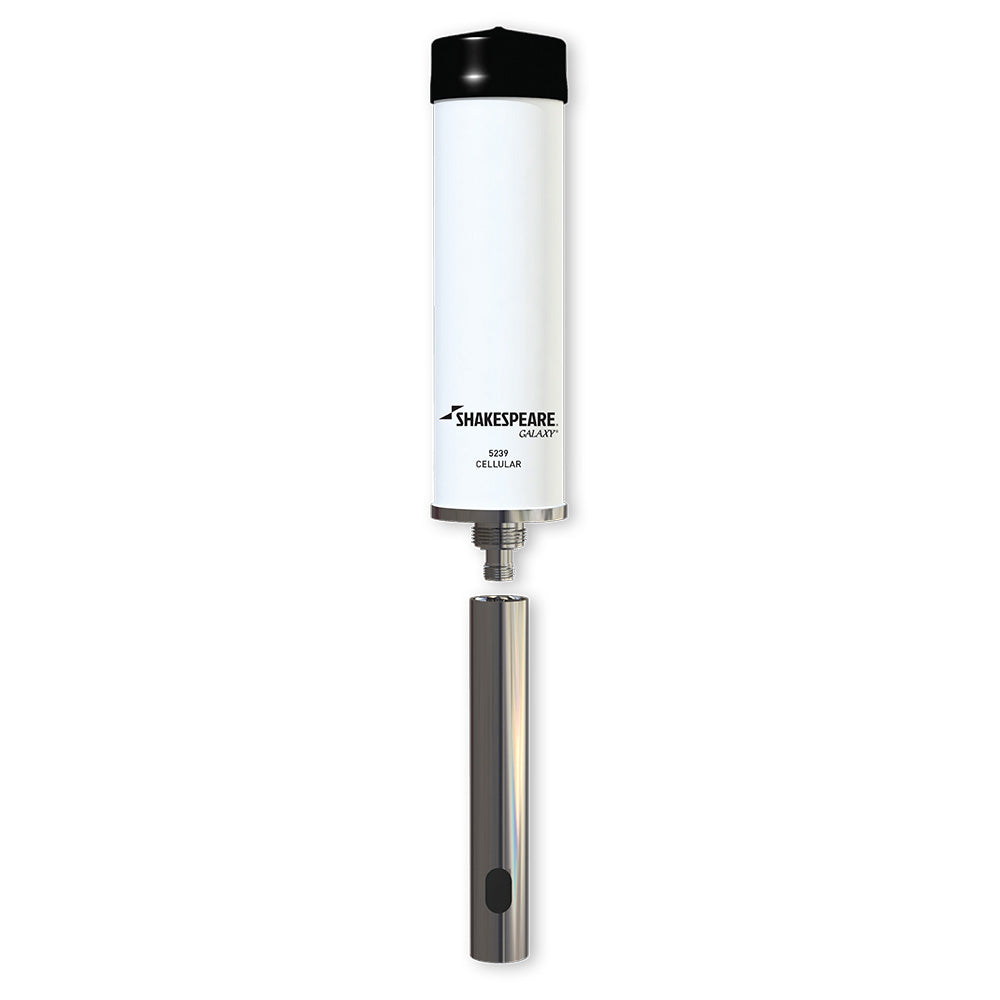

Cellular/Wi-Fi World Band Galaxy Antenna

The Galaxy 5239 antenna is Shakespeare's smallest Galaxy antenna, but don't let the size fool you. This World-band antenna provides coverage for 2G/3G/4G and WLAN systems for Cellular, PCS, AWS and LTE frequencies, as well as 802.11n Wi-Fi. This compact, feature rich antenna is at home on virtually any watercraft, and is fitted with a stainless steel ferrule and N-connector that are compatible with nearly all Shakespeare 1in -14 threaded mounts.

Features:

  • Full Band (698 - 2700 MHz) Broadband
  • 2G/3G/4G and WLAN systems
  • Wi-Fi 802.11n compatible
  • Designed for marine use
  • Omni-directional antenna 3-4 dB Gain.
  • Easy to install
  • Includes FME Cables

Specifications:

  • Frequency: 698-960/1700-2700 MHz
  • Input Impedence: 50 ohm
  • Antenna Gain: 2-3dB @ 698-960/3-4dB @ 1700-2700 MHz
  • VSWR: ≤ 1.8
  • Power Rating (W): 10
  • Polarization Type: Vertical
  • Radiation: Omni-Directional
  • Maximum Power (W): 100
  • Connector Type: N-female
  • Dimension: 9.25" H x 2.625" D
  • Color: White
  • Operating Temperature (F): -22 to +176
  • Mounting: 1" x 14 Thread Mount
  • Ground Plane: Internal
  • Material: Fiberglass

Specifications:

  • Length (Inches): 9.25"
  • Construction: Fiberglass
  • Color: White
  • Box Dimensions: 5"H x 5"W x 11"L WT: 1.8 lbs
  • UPC: 719441900960
