Product Details

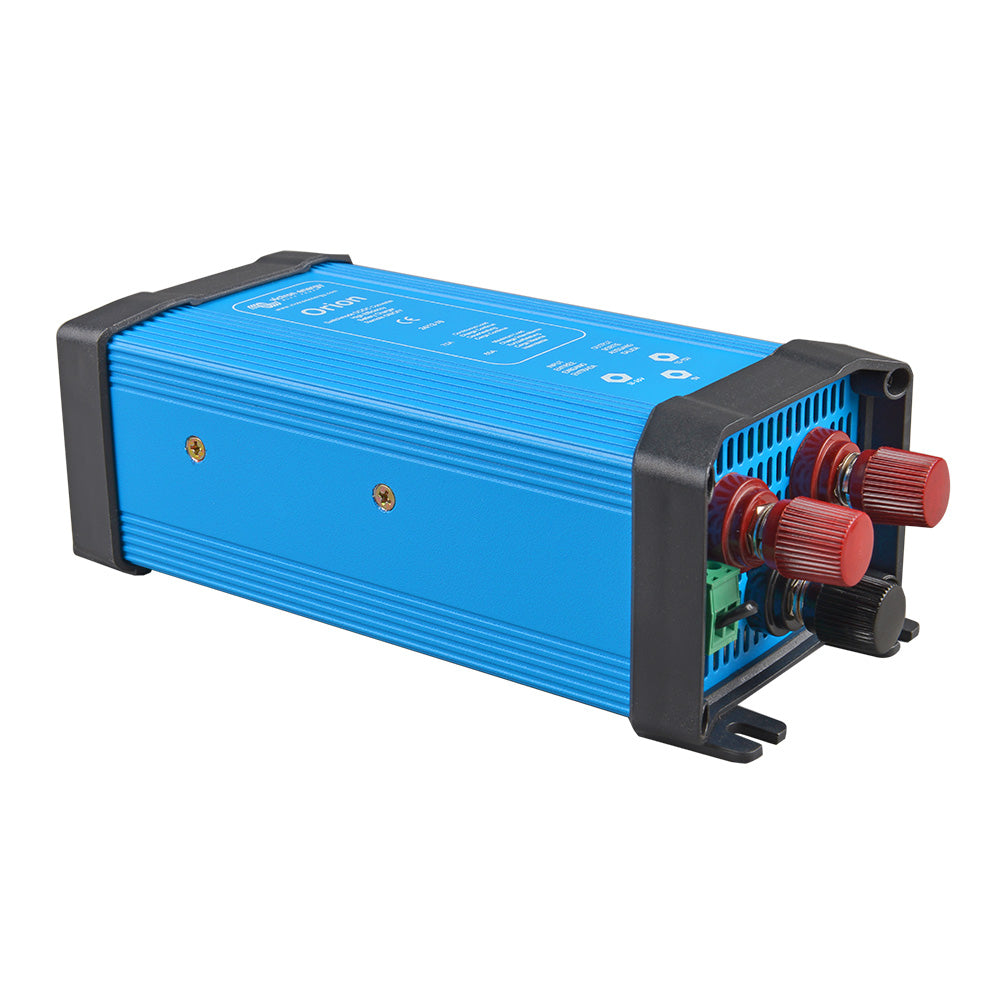

Orion 24/12-70A DC-DC Converter with Binding Posts - IP20

Remote On-Off Connector

The remote on-off eliminates the need for a high-current switch in the input wiring. The remote on-off can be.

operated with a low-power switch or by the engine run/stop switch (see manual).

All Models with Adjustable Output Can Also Be Used as a Battery Charger

For example, charge a 12 Volt starter or accessory battery in an otherwise 24V system.

All Models with Adjustable Output Can Be Paralleled to Increase Output Current

Up to five units can be connected in parallel.

Easy to Install

Delivery includes four Insulated Fastons Female Crimp 6.3mm.

Specifications:

  • Input Voltage Range (V): 18-35
  • Under Voltage Shutdown (V): 14
  • Under Voltage Restart (V): 18
  • Output Voltage Adjustable with Potentiometer: Yes
  • Output Voltage (V): Adjustable, 10–15V, F set 13,2V
  • Efficiency (%): 92
  • Suitable to Buffer-Charge a Battery: Yes
  • Can Be Connected in Parallel: Yes
  • Continuous Output Current (A): 70
  • Max. Output Current (A): 85
  • Fan-Assisted Cooling (Temp. Controlled): Yes
  • Galvanic Isolation: No
  • Off Load Current: < 20mA
  • Remote On-off: Yes
  • Operating Temperature Range (Derate 3% Per °C above 40°C): -20 to +55°C
  • DC Connection: M6 bolts
  • Weight: 0,9 kg / 2.0 lbs
  • Dimensions (H x W x D): (mm) 65 x 88 x 195 / (inch) 2.6” x 3.5” x 7.7”
  •  Safety Standards: EN 60950
  •  Emission Standards: EN 61000-6-3, EN 55014-1
  •  Immunity Standards: EN 61000-6-2, EN 61000-6-1, EN 55014-2
  •  Automotive Directive Standards: ECE R10-4
Please contact your dealer for any returns, repairs or support issues related to this product.
Quick Guide (pdf)
