Transducer Installation: Why It Matters
Your fishfinder or depth sounder is only as good as the transducer feeding it. A poorly placed or incorrectly installed transducer produces noisy, inaccurate, or intermittent sonar readings — regardless of how capable the display unit is. Getting the transducer installation right is the most important step in any sonar system setup.
This guide covers the two most common transducer mounting methods for recreational powerboats — transom mount and thru-hull — with step-by-step installation instructions for each. (For trolling motor mount and in-hull shoot-through installations, consult your transducer manufacturer's specific instructions.)
For bass boat-specific transducer installation, also see our earlier guide: How to Install a Transducer on a Bass Boat.
Choosing Your Mount Style
Transom Mount
The transducer mounts on a bracket attached to the outside of the transom, with the transducer face submerged below the hull bottom. The most common installation method for recreational powerboats.
Advantages:
- No hull penetration required — no through-hull fitting, no risk of sinking if the fitting fails
- Easiest to install — can be done without hauling the boat
- Adjustable — the bracket allows fine-tuning of transducer angle and depth
- Easy to remove for service or replacement
Limitations:
- Exposed to impact from debris, dock lines, and trailer rollers
- Can lose bottom contact at high speeds on some hull designs due to turbulence and aeration
- Not suitable for all hull types — stepped hulls and some deep-V designs create turbulence that degrades transom-mount performance
- Adds drag (minor) and can be damaged by backing into objects
Best for: Most center consoles, bass boats, aluminum fishing boats, and any boat where simplicity and ease of installation are priorities.

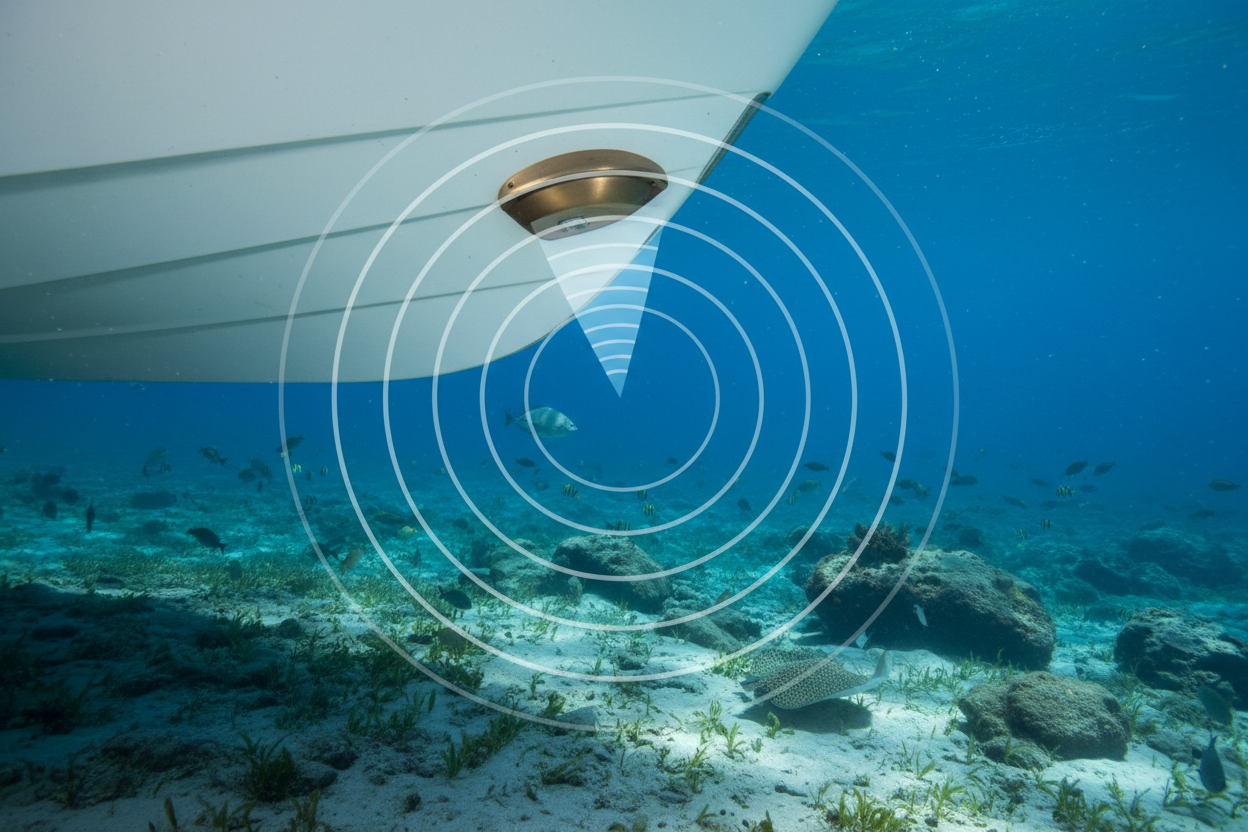

Thru-Hull Mount
The transducer installs through a hole in the hull, with the transducer face flush with or slightly below the hull bottom. Requires a through-hull fitting and, ideally, a seacock.
Advantages:
- Best sonar performance — the transducer is in clean, undisturbed water at all speeds
- Protected from impact — flush with the hull bottom
- No external bracket to snag lines or debris
- Preferred for high-speed boats and serious fishing applications
Limitations:
- Requires drilling a hole in the hull — must be done carefully and sealed properly
- Requires hauling the boat for installation (or working in the water)
- More complex installation; harder to service or replace
- Hull deadrise angle must be accounted for with a fairing block
Best for: Larger powerboats, offshore fishing boats, high-speed applications, and any installation where maximum sonar performance is the priority.
Before You Start: Compatibility Check
Transducers are not universal. Before purchasing, confirm:
- Display compatibility: The transducer must be compatible with your specific fishfinder/chartplotter model. Check the manufacturer's compatibility list — connector types and sonar frequencies vary by brand and model.
- Sonar type: Match the transducer to the sonar capabilities of your display (CHIRP, DownScan, SideScan, etc.)
- Frequency: Appropriate for your typical fishing depth and conditions
- Hull material: Some transducers are not suitable for certain hull materials (e.g., steel or aluminum hulls require special consideration)
Browse our Transducers collection to find compatible options for your display unit.
Transom Mount Installation: Step by Step
Step 1: Choose the Location
Transducer placement on the transom is critical for performance. Follow these rules:
- Mount on the starboard side of the engine (or between the engines on a twin-engine boat), approximately 15–18 inches from the centerline
- Keep away from the engine lower unit — at least 15 inches to avoid turbulence from the prop wash
- Avoid strakes, ribs, and hull features that create turbulence — the transducer needs clean, undisturbed water flow
- The transducer face must be below the hull bottom at rest and at speed — typically 1/8" to 1/4" below the hull's lowest point at the transom
- Test location before drilling: Hold the transducer in the proposed location while a helper runs the boat at various speeds. Check for aeration (bubbles on the transducer face) and signal quality on the display.
Step 2: Mount the Bracket
- Mark the bracket mounting hole locations on the transom
- Drill pilot holes slightly smaller than the mounting screws
- Apply marine sealant (3M 4200) to each hole before inserting the screws — this prevents water intrusion into the transom core
- Secure the bracket with stainless steel screws and backing washers. On cored transoms (fiberglass with foam or balsa core), use backing plates to distribute the load and prevent core compression.
Step 3: Set the Transducer Angle and Depth
- Attach the transducer to the bracket
- Adjust the transducer so its face is parallel to the waterline (not angled up or down) — most brackets have an adjustment screw for this
- Set the depth so the transducer face is 1/8”–1/4" below the hull bottom — deep enough to stay in water at speed, shallow enough to minimize drag and turbulence
- Tighten the bracket adjustment hardware securely — a loose transducer will vibrate and produce noisy readings
Step 4: Route the Cable
- Route the transducer cable up the transom and into the boat through a cable entry fitting or existing cable penetration
- Seal any new hull penetrations with a waterproof cable entry fitting and marine sealant
- Keep the transducer cable away from other wiring — especially power cables and VHF antenna cables — to minimize electrical interference on the sonar display
- Secure the cable with cable ties every 12–18 inches; protect any sections subject to chafe with split loom or conduit
- Leave enough slack at the transducer end to allow for bracket adjustment without straining the cable
Step 5: Connect and Test
- Connect the transducer cable to the display unit per the manufacturer's instructions
- Power on the display and verify the transducer is recognized
- In shallow water, confirm depth readings are accurate
- Run the boat at various speeds and check for signal loss or aeration at speed — if the signal drops out above a certain speed, the transducer may need to be repositioned slightly lower or further from the engine
Thru-Hull Installation: Step by Step
Step 1: Choose the Location
Thru-hull transducer placement requires careful planning:
- Choose a location on the hull bottom with clean water flow — away from strakes, keel, and any hull features that create turbulence
- Avoid areas near through-hull fittings, seacocks, or other hull penetrations
- The location must be accessible from inside the boat for the interior nut and wiring
- On a deep-V hull, the transducer should be mounted on the deadrise (angled) section of the hull, not at the very bottom of the V — this keeps it in clean water at speed
- Measure the hull deadrise angle at the chosen location — you'll need a fairing block to compensate
Step 2: Determine Fairing Block Requirements
On any hull with deadrise (virtually all V-hull powerboats), the transducer face must be parallel to the waterline for accurate readings. A fairing block is a wedge-shaped piece that compensates for the hull's deadrise angle, allowing the transducer to mount flush with the hull while remaining level.
- Measure the hull deadrise angle at the installation location with an angle gauge or digital level
- Purchase or fabricate a fairing block with the matching angle
- Most transducer manufacturers offer fairing blocks for their thru-hull transducers in common deadrise angles (10°, 12°, 14°, etc.)
Step 3: Drill the Hull
This step is irreversible — measure twice, drill once.
- From inside the boat, drill a small pilot hole at the chosen location to confirm the exterior location is correct
- Check the exterior location — confirm it's clear of strakes, keel, and other fittings
- Use the correct hole saw size for your transducer's through-hull fitting (specified in the transducer manual)
- Drill from the outside in for a cleaner cut in fiberglass
- If the hull has a cored construction (foam or balsa between fiberglass layers), the core must be sealed at the hole to prevent water intrusion. Excavate the core around the hole to a depth of 1/2”–1” and fill with thickened epoxy before installing the fitting.
Step 4: Install the Through-Hull Fitting
- Apply a generous bead of marine sealant (3M 5200 for permanent installations; 4200 if you may want to remove it later) to the flange of the through-hull fitting
- Insert the fitting through the hull from outside
- From inside, thread on the backing nut and tighten until the sealant squeezes out evenly around the flange — do not overtighten
- Wipe away excess sealant immediately
- Allow sealant to cure fully before launching (24–48 hours for 4200; 7 days for 5200)
Step 5: Install the Transducer
- Apply sealant to the transducer body where it contacts the through-hull fitting
- Insert the transducer into the fitting and secure per the manufacturer's instructions (typically a locking nut or set screw)
- Confirm the transducer face is parallel to the waterline
Step 6: Route the Cable and Test
Follow the same cable routing guidelines as the transom mount installation. After launching, check for leaks around the through-hull fitting before leaving the dock. Test at various speeds and confirm consistent depth readings.
Common Installation Mistakes
- Mounting in turbulent water: Strakes, ribs, and hull features create aeration that blanks the sonar. Always test location before committing.
- Transducer face not parallel to waterline: An angled transducer produces inaccurate depth readings and poor sonar images. Use a fairing block on angled hulls.
- Cable routed near power wiring: Electrical interference from power cables appears as noise on the sonar display. Keep transducer cable separated from other wiring.
- Unsealed hull penetrations: Any hole through the hull must be properly sealed. Water intrusion into a cored hull causes delamination and structural damage over time.
- Wrong transducer for the display: Always verify compatibility before purchasing. Connector types and sonar protocols vary by manufacturer and model.
