How to Set Up an NMEA 2000 Network on Your Boat

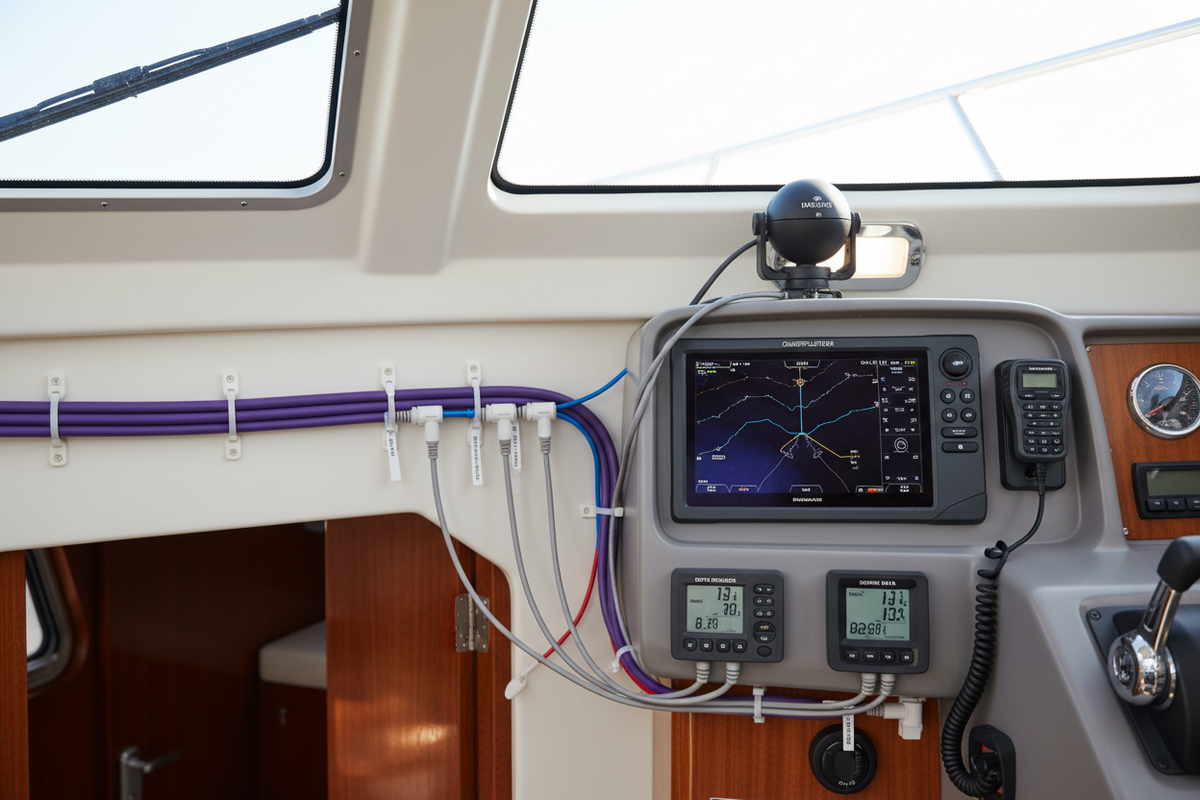

What Is NMEA 2000 and Why Does It Matter?

NMEA 2000 (N2K) is the modern standard for marine electronics networking. It's a plug-and-play communication bus that lets all your compatible devices — chartplotter, fishfinder, VHF radio, engine gauges, GPS antenna, wind instruments, autopilot, and more — share data over a single cable backbone.

Before NMEA 2000, connecting a GPS to a VHF radio for DSC required a dedicated NMEA 0183 serial cable between those two specific devices. Add more devices and you had a spaghetti of point-to-point wires. With NMEA 2000, every device connects to one shared backbone and can send and receive data from every other device on the network simultaneously.

The practical benefits are significant: your chartplotter displays engine data, your VHF radio gets GPS position for DSC distress calls, your autopilot follows a route from the chartplotter, and your fishfinder shares depth data with the network — all from one clean wiring installation.

NMEA 2000 Network Components

Understanding the parts before you buy saves time and money. An NMEA 2000 network consists of:

Backbone Cable

The main trunk cable that runs through the boat. Devices connect to the backbone via drop cables and T-connectors. The backbone must be terminated at both ends. Available in standard (thick) and micro (thin) versions — most recreational boat installations use micro/mid-size cable.

T-Connectors (Tee Connectors)

Each T-connector creates a connection point on the backbone. One port connects to the backbone cable on each side; the third port accepts a drop cable to a device. You need one T-connector per device on the network.

Drop Cables

Short cables that run from a T-connector to an individual device. Drop cables should be kept as short as practical — the NMEA 2000 standard limits total drop cable length per device to 6 meters.

Terminators

Resistor plugs that install at each end of the backbone. Every NMEA 2000 network must have exactly two terminators — one at each end of the backbone. Without terminators, the network will not function correctly. This is the most common installation mistake.

Power Tap

The NMEA 2000 backbone requires 12V power. A power tap connects to the backbone (typically near the middle) and provides power to the entire network. Connect the power tap to a fused 12V circuit — typically 3–5A is sufficient for most networks.

Device Connectors

Each NMEA 2000-compatible device comes with a connector that plugs into a drop cable. Connector styles vary by manufacturer (Garmin, Lowrance/Simrad, Humminbird, and generic all use slightly different connectors) but are electrically compatible — you may need adapter cables when mixing brands.

Browse our NMEA Cables & Sensors collection for backbone cable, T-connectors, terminators, power taps, and drop cables.

Step 1: Plan Your Network

Before buying any components, sketch your network layout:

List every NMEA 2000 device you plan to connect (chartplotter, VHF, engine gateway, GPS antenna, depth sensor, wind instruments, autopilot, etc.)
Determine the backbone route — where will the main cable run through the boat? Aim for a central route that minimizes drop cable lengths to each device.
Measure drop cable distances from the backbone route to each device location
Count T-connectors needed: One per device, plus one for the power tap
Calculate backbone length: Measure the backbone route and add 20% for routing around obstacles

NMEA 2000 network limits (per standard):

Maximum backbone length: 100 meters (328 feet) — far more than any recreational boat needs
Maximum drop cable length per device: 6 meters (20 feet)
Maximum devices on one network: 50

Step 2: Purchase Components

Based on your plan, purchase:

Backbone cable (measured length + 20%)
T-connectors (one per device + one for power tap)
Drop cables (one per device, in appropriate lengths)
2x terminators (always exactly two)
1x power tap
Any brand-specific adapter cables needed

Tip: Many manufacturers sell starter kits that include backbone cable, T-connectors, terminators, and a power tap — a convenient starting point for a new installation.

Step 3: Run the Backbone Cable

Route the backbone cable through the boat along your planned path, securing with cable ties every 18 inches
Protect runs through bulkheads with grommets or conduit
Leave enough slack at each T-connector location to make connections without strain
Do not cut the backbone cable — T-connectors insert inline without cutting. If you need to extend the backbone, use a backbone extension cable with proper connectors.

Step 4: Install T-Connectors

At each device location along the backbone:

Insert the T-connector inline with the backbone cable — the backbone connects to the two inline ports, and the device drop cable connects to the branch port
Hand-tighten all connections firmly — NMEA 2000 connectors are threaded and should be snug but not over-torqued
Label each T-connector with the device it serves (a small cable label or piece of tape works fine)

Step 5: Install Terminators

Install one terminator at each end of the backbone — the open port at the very beginning and the very end of the backbone cable. Terminators look like short plugs and simply thread onto the open backbone connector.

Double-check: You should have exactly two terminators installed, one at each end. No more, no less.

Step 6: Connect the Power Tap

Install the power tap T-connector at a convenient point on the backbone, ideally near the middle of the run
Run two-conductor wire from the power tap to your fuse block
Connect the positive wire to a fused circuit (3–5A fuse is typically sufficient)
Connect the negative wire to your negative bus bar

Step 7: Connect Devices

For each device:

Connect the drop cable from the T-connector to the device's NMEA 2000 port
If the device uses a different connector style than your drop cable, use the appropriate adapter
Secure the drop cable so it won't be pulled or chafed

Step 8: Power On and Verify

Power on the network by turning on the fused circuit to the power tap
Power on each device
On your chartplotter or MFD, navigate to the NMEA 2000 device list (location varies by brand — check your manual). You should see all connected devices listed.
Verify data sharing: confirm your chartplotter shows GPS position, engine data appears if you have an engine gateway, and your VHF radio shows GPS position for DSC

Troubleshooting Common Issues

Devices not appearing on the network

Check that the power tap is receiving 12V and the fuse is intact
Verify both terminators are installed at the backbone ends
Check all T-connector and drop cable connections are fully seated and hand-tight
Confirm the device is NMEA 2000 certified (not just NMEA 0183)

Intermittent data or dropouts

Check for loose connections — work through each T-connector and drop cable
Verify drop cable lengths are within the 6-meter limit
Check for damaged cable (pinched, kinked, or chafed sections)

Device address conflicts

NMEA 2000 devices self-assign addresses on the network. Conflicts are rare but can occur when adding devices. Power cycling the affected device usually resolves the conflict.

NMEA 2000 vs. NMEA 0183: When to Use Each

Feature	NMEA 2000	NMEA 0183
Wiring	Single backbone, all devices share	Point-to-point between each pair of devices
Speed	Fast (250 kbps)	Slow (4.8–38.4 kbps)
Plug-and-play	Yes	No — requires manual wiring and configuration
Device limit	50 devices	Effectively 2 per connection
Best for	New installations, multiple devices	Legacy devices, simple two-device connections

If you're building a new electronics suite, use NMEA 2000 throughout. Use NMEA 0183 only for legacy devices that don't support N2K, or for simple two-device connections (e.g., an older VHF radio that only has NMEA 0183 input).
