Boat Electrical System 101: Understanding Your 12V DC System

Why Understanding Your Boat's Electrical System Matters

Most boat problems that aren't mechanical are electrical. A dead battery, a blown fuse, a corroded connection, or an improperly wired accessory can ruin a day on the water — or create a genuine safety hazard. Yet many boaters treat their electrical system as a black box, calling a marine electrician for problems they could diagnose and fix themselves with a basic understanding of how the system works.

This guide gives you that foundation. It covers the key components of a typical recreational boat's 12V DC electrical system, how they work together, and the standards that govern safe marine wiring. Think of it as the map you need before diving into any of our more specific installation guides.

DC vs. AC: Two Separate Systems

Most recreational boats have two distinct electrical systems:

12V DC (Direct Current): Powered by the boat's batteries. Runs all onboard electronics, lights, pumps, and accessories when the boat is away from shore power. This is the system this guide covers.
120V AC (Alternating Current): Shore power, connected via a shore power cord and inlet when at the dock. Powers AC appliances (microwave, air conditioning, battery charger). AC systems require additional safety considerations (galvanic corrosion, shock hazard) and are beyond the scope of this guide.

The two systems are connected only through the battery charger, which converts AC shore power to DC to charge the batteries. They should never be directly connected.

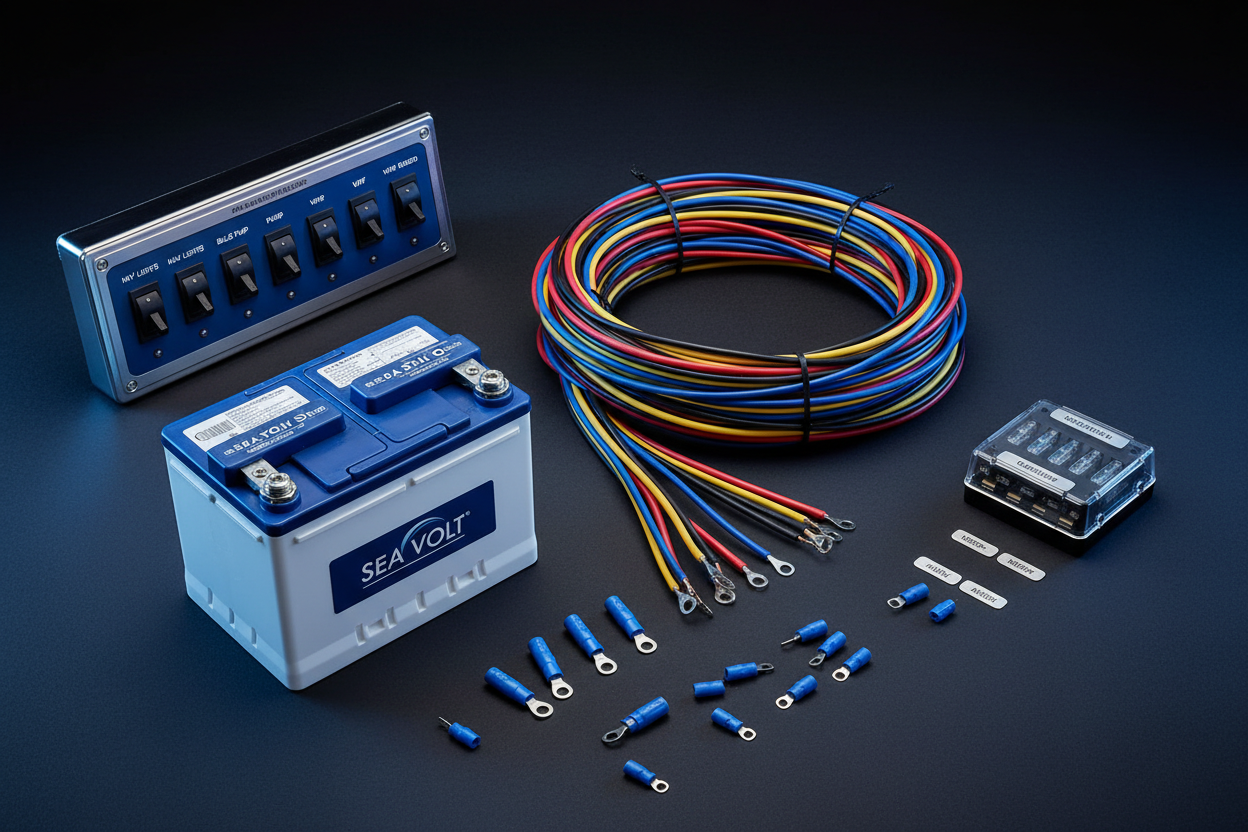

The Core Components of a 12V DC System

1. Batteries

The battery bank is the heart of the DC system — the energy storage that powers everything when the engine isn't running and the source of starting current for the engine.

Battery types by function:

Starting (cranking) battery: Designed to deliver a large burst of current for a short time to start the engine. Not designed for deep discharge — repeatedly draining a starting battery below 50% will damage it quickly.
Deep-cycle battery: Designed to be discharged and recharged repeatedly. Powers house loads (electronics, lights, pumps) over extended periods. Can be discharged to 50% (lead-acid) or lower (lithium) without damage.
Dual-purpose battery: A compromise between starting and deep-cycle capability. Adequate for smaller boats with modest loads; not ideal for either function on larger boats.

Battery chemistry:

Flooded lead-acid (FLA): The traditional, least expensive option. Requires periodic water top-up and venting. Still widely used.
AGM (Absorbed Glass Mat): Sealed, maintenance-free, spill-proof. Better vibration resistance than FLA. The most common choice for modern recreational boats.
Lithium (LiFePO4): Lightest weight, longest cycle life, can be discharged deeper than lead-acid. Significantly more expensive upfront but lower lifetime cost. Requires a lithium-compatible charger and battery management system (BMS).

For more on monitoring your battery bank, see our battery monitor setup guide. For charging, see our battery charger buying guide.

2. Battery Switch

The battery switch (or battery selector switch) controls which battery or battery bank is connected to the electrical system. Common configurations:

Single battery switch: Simple on/off. Used when there's only one battery bank.
1-2-Both-Off selector switch: Selects Battery 1, Battery 2, Both, or Off. Allows you to isolate banks or combine them. The "Both" position connects both banks in parallel — useful for starting if one bank is low, but should not be left in "Both" during normal operation as it allows one bank to drain the other.
Automatic Charging Relay (ACR) / Battery Combiner: Automatically connects battery banks in parallel when the alternator is charging (to charge both banks) and isolates them when charging stops (to prevent the house bank from draining the starting battery). The modern preferred approach for two-bank systems.

3. Charging Sources

Batteries are recharged by one or more charging sources:

Alternator: Driven by the engine, the alternator is the primary charging source while underway. Most marine engines have a 50–100A alternator. The alternator charges the battery bank connected through the battery switch.
Shore power charger: Converts 120V AC shore power to 12V DC to charge the batteries at the dock. See our battery charger guide for sizing and selection.
Solar panels: Generate DC power from sunlight. Excellent for maintaining batteries on boats that sit at a mooring or anchor for extended periods. Requires a solar charge controller to regulate voltage.
Wind generator: Generates DC power from wind. Common on cruising sailboats at anchor.

4. Main Fuse or Circuit Breaker

Every positive wire leaving the battery must be protected by a fuse or circuit breaker as close to the battery as possible — within 7 inches per ABYC E-11. This main fuse protects the feed wire from the battery to the distribution system. Without it, a short circuit in the feed wire can cause a fire before any downstream fuse can blow.

5. Positive Bus Bar / Fuse Block

The positive bus bar or fuse block is the distribution point for all DC circuits. The main feed wire from the battery connects here, and individual circuit wires branch out to each accessory. Each branch circuit has its own fuse sized to protect that circuit's wire.

For a detailed guide to wiring a fuse block, see our fuse block wiring guide.

6. Negative Bus Bar

The negative bus bar is the return point for all DC circuits. Every accessory's negative wire connects here, and a single heavy cable runs from the bus bar back to the battery negative terminal. This "common negative" approach is the ABYC-recommended method — it's safer, easier to troubleshoot, and avoids the voltage drop problems of daisy-chained grounds.

7. Switch Panel

The helm switch panel controls individual circuits from a central location. Each switch connects one circuit's positive wire to the fuse block feed. For a complete guide, see our switch panel buying guide.

8. Loads (Accessories)

Everything powered by the DC system: electronics, lights, pumps, motors, and safety equipment. Each load connects between the positive bus (through its switch and fuse) and the negative bus.

How Current Flows: The Complete Circuit

Understanding current flow is the key to understanding — and troubleshooting — any electrical system. Current flows in a complete loop:

Battery positive → Main fuse → Positive bus bar → Circuit fuse → Switch → Accessory → Negative bus bar → Battery negative

If any part of this loop is broken — blown fuse, open switch, corroded connection, broken wire — the circuit stops working. Troubleshooting is simply finding where the loop is broken.

Wire Sizing: Why It Matters

Wire must be sized to carry the circuit's current without excessive voltage drop or heat. Undersized wire is a fire hazard. Marine wiring uses AWG (American Wire Gauge) — lower numbers are heavier wire.

Key sizing factors:

Current (amps): Higher current requires heavier wire
Length of run: Longer runs require heavier wire to limit voltage drop (voltage drop = current × resistance; longer wire = more resistance)
Acceptable voltage drop: ABYC recommends no more than 3% voltage drop for critical circuits (navigation lights, bilge pump) and 10% for non-critical circuits

Quick reference (for 3% voltage drop, 12V system):

Current (A)	10-foot run	20-foot run	30-foot run
5A	16 AWG	14 AWG	12 AWG
10A	14 AWG	12 AWG	10 AWG
15A	12 AWG	10 AWG	8 AWG
20A	10 AWG	8 AWG	8 AWG
30A	8 AWG	6 AWG	6 AWG

Always use marine-grade tinned copper wire — not automotive wire. Marine wire is tinned (coated with tin) to resist corrosion in the damp marine environment. Automotive wire will corrode from the inside out and fail prematurely.

Fuse Sizing: Protecting the Wire, Not the Device

A common misconception: fuses protect the device. They don't — fuses protect the wire. A fuse is sized to blow before the wire overheats and causes a fire. The fuse rating should be the smallest value that won't nuisance-trip under normal operation, but never larger than the wire's ampacity.

Example: A 14 AWG wire is rated for approximately 15A. The fuse protecting it should be 15A or less — never 20A or 30A, even if the device could theoretically draw that much.

ABYC Standards: The Marine Electrical Bible

The American Boat and Yacht Council (ABYC) publishes the standards that govern safe marine electrical installations. The key standard for DC systems is ABYC E-11. Key requirements include:

All positive conductors must be fused within 7 inches of the battery or power source
Use tinned copper wire throughout
All connections must be made with proper marine connectors — no wire nuts
Wiring must be supported every 18 inches and protected at bulkhead penetrations
Bilge pump automatic circuit must be always-on (not switched through the main panel)
Ignition-protected components required in engine compartments

ABYC standards are not legally required for recreational boats in the US (unlike commercial vessels), but they represent best practice and are the basis for most marine insurance requirements. Following ABYC standards is the right way to wire a boat.

Common Electrical Problems and Their Causes

Symptom	Likely Cause	Where to Look
Circuit doesn't work	Blown fuse, open switch, broken wire, corroded connection	Check fuse first, then connections
Fuse blows repeatedly	Overloaded circuit, short circuit in wiring or device	Check device current draw; inspect wiring for chafe
Dim lights / slow electronics	Voltage drop from undersized wire or corroded connections	Check voltage at the device vs. at the battery
Battery drains overnight	Parasitic draw from a device left on, or a faulty bilge pump float switch	Use a multimeter to measure current draw with everything off
Corrosion at connections	Non-tinned wire, unsealed connections, or stray current	Replace with tinned wire and sealed marine connectors

Essential Tools for Marine Electrical Work

Multimeter: Measures voltage, current, and resistance. The single most useful tool for electrical troubleshooting.
Ratcheting crimping tool: For making reliable, consistent crimps on marine connectors. Do not use pliers.
Heat gun: For shrinking heat-shrink connectors and tubing.
Wire stripper: Sized for the wire gauges you're working with.
Voltage drop tester or multimeter: For measuring voltage drop across connections and wire runs.
