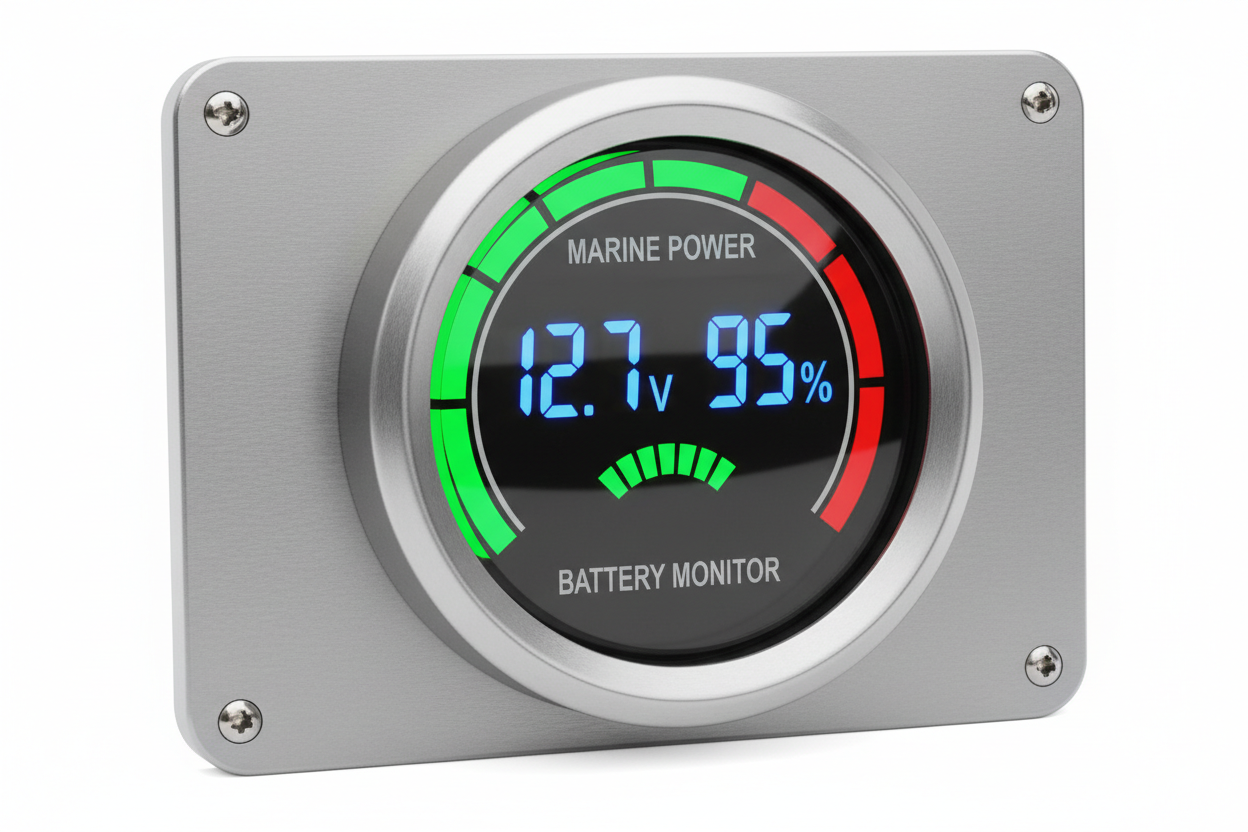

Marine Battery Monitor Setup Guide: What It Is and Why You Need One

Why You Need a Battery Monitor on Your Boat

A voltmeter tells you what your battery voltage is right now. A battery monitor tells you how much usable energy is actually left — and that's a completely different (and far more useful) number.

Without a battery monitor, most boaters rely on a simple voltage gauge and guesswork. The result: unexpected dead batteries, stranded boats, and damaged battery banks from chronic undercharging or over-discharge. A battery monitor eliminates the guesswork and gives you real-time data on state of charge (SOC), current draw, and time remaining at your current consumption rate.

If you run electronics, a trolling motor, a live well pump, or any significant 12V load, a battery monitor is one of the highest-value upgrades you can make to your boat's electrical system.

How a Battery Monitor Works

A battery monitor measures every amp that flows in and out of your battery bank using a precision resistor called a shunt, installed in the negative cable between the battery and the rest of the system. The monitor head (display unit) connects to the shunt and calculates:

State of Charge (SOC): Percentage of usable capacity remaining (like a fuel gauge)
Amps in/out: Current draw from loads and current input from charging sources
Voltage: Real-time battery voltage
Time remaining: Estimated runtime at current consumption rate
Amp-hours consumed: Total energy drawn since last full charge

The shunt is the key component — it must be sized correctly for your system (typically 100A, 200A, or 500A shunts are common for marine use).

What You'll Need

Battery monitor kit (monitor head + shunt + wiring harness)
Wire strippers and crimping tool
Marine-grade ring terminals (sized for your shunt bolts)
Heat shrink tubing
Drill and hole saw (for panel mounting the display)
Multimeter (for verification)
Inline fuse holder and fuse (typically 1–3A for the monitor's sense wire)

Browse our Electrical - Battery Management collection for battery monitors, shunts, and accessories.

Step-by-Step Installation

Step 1: Disconnect the Battery

Before doing any wiring, disconnect the negative terminal of your battery (or battery bank). Work safely — even a 12V system can deliver dangerous current through a short circuit.

Step 2: Locate the Shunt Installation Point

The shunt must be installed in the main negative cable between the battery negative terminal and the common negative bus bar or ground point for the rest of the boat. This ensures all current flows through the shunt for accurate measurement.

Important: The only connection on the battery side of the shunt should be the battery negative cable. All other negative connections (loads, chargers, alternator) must connect on the other side of the shunt (the "system" side).

Step 3: Install the Shunt

Cut the main negative cable at the chosen location, leaving enough length on both ends to reach the shunt terminals
Crimp marine-grade ring terminals onto both cable ends
Attach the battery-side cable to one shunt terminal and the system-side cable to the other
Torque the shunt bolts to the manufacturer's specification — a loose connection causes measurement errors
Mount the shunt in a dry, accessible location (bilge-adjacent is fine if it stays dry; avoid direct water exposure)

Step 4: Run the Sense Wires

Your battery monitor kit will include a small-gauge sense wire harness that connects the shunt to the monitor display head. This harness typically includes:

A shunt sense wire (connects across the shunt terminals to measure voltage drop)
A battery positive sense wire (connects directly to battery positive, through a small inline fuse)
A ground wire

Run these wires neatly alongside existing wiring runs, securing with cable ties every 12–18 inches. Keep sense wires away from high-current cables to minimize interference.

Step 5: Mount and Connect the Display Head

Choose a location at the helm that's visible from the helm seat — near your other gauges is ideal
Cut the mounting hole per the manufacturer's template (most monitors use a standard gauge hole, typically 2" or 52mm)
Connect the sense wire harness to the back of the display head
Secure the display in the panel

Step 6: Configure the Monitor

Before the monitor reads accurately, you must program it with your battery bank's specifications:

Battery capacity (Ah): Enter the total amp-hour rating of your bank (e.g., 100Ah for a single Group 27 AGM)
Battery type: Select flooded, AGM, gel, or lithium — each has a different discharge curve
Peukert exponent: A correction factor for how batteries lose capacity under high loads (your battery spec sheet or monitor manual will have this)
Charge efficiency factor: Typically 95% for AGM, 99% for lithium
Shunt size: Enter the shunt rating (e.g., 500A/50mV)

Step 7: Synchronize (Full Charge)

After configuration, fully charge your battery bank until the charger goes to float mode. Then tell the monitor this is "100% full" — this synchronizes the SOC reading. From this point, the monitor tracks every amp in and out to maintain an accurate SOC reading.

Re-synchronize whenever you complete a full charge cycle.

Reading Your Battery Monitor

Once installed and configured, here's how to interpret the key readings:

SOC above 50%: You're in good shape — most lead-acid batteries should not be discharged below 50% for long battery life
SOC 50–20%: Time to head in or start charging
SOC below 20%: Risk of permanent battery damage — charge immediately
Negative amps reading: Your loads are drawing more than your charging sources are putting in (net discharge)
Positive amps reading: Your charging sources (alternator, solar, shore power charger) are putting more in than loads are drawing (net charge)

Pro Tips

Lithium batteries: If you upgrade to lithium (LiFePO4), re-configure the monitor for lithium chemistry — the discharge curve is very different from lead-acid
Multiple banks: You'll need one monitor per battery bank you want to track independently
Alternator charging: Make sure your alternator's negative return also routes through the system side of the shunt, not directly to the battery negative
Solar and shore power: Same rule — all charging sources must connect on the system side of the shunt
