Why Your Switch Panel Matters

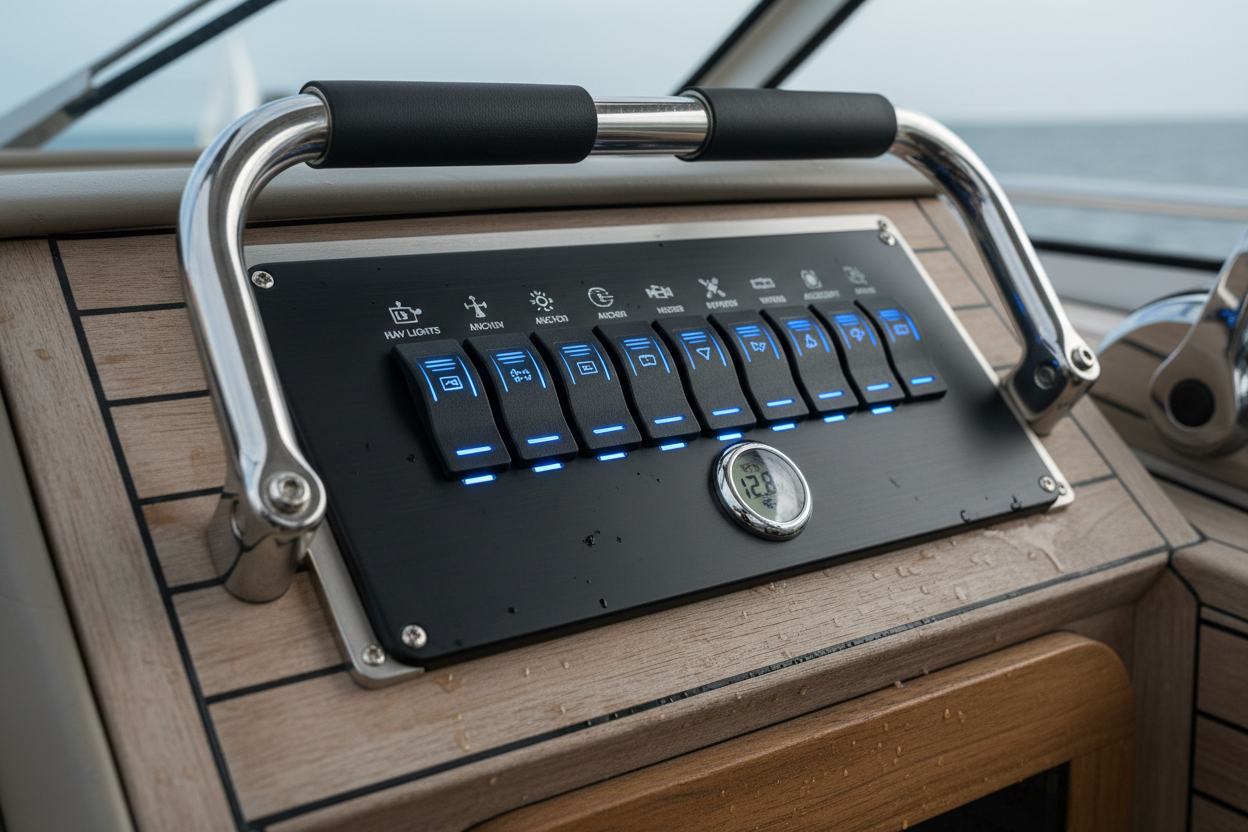

The helm switch panel is the command center of your boat's 12V electrical system. Every accessory — nav lights, bilge pump, livewell, fishfinder, VHF radio, anchor light, and more — is controlled from here. A well-designed panel is organized, clearly labeled, properly fused, and built to handle the marine environment. A poorly designed one is a source of electrical gremlins, blown fuses, and frustration.
Whether you're replacing a worn-out panel or building a new electrical system from scratch, this guide covers everything you need to choose and wire the right switch panel for your boat.
Types of Marine Switch Panels
Individual Toggle or Rocker Switches
The simplest approach: individual switches mounted directly in the dash, each controlling one circuit. Common on smaller boats and custom builds. Flexible but requires more planning for layout and labeling. Each switch needs its own wiring run to the fuse block.
Pre-Wired Switch Panels
A self-contained panel with multiple switches, built-in bus bars, and often integrated fuse protection. The most popular choice for most recreational boats. Available in 4, 6, 8, 10, and 12-switch configurations. Key advantages:
- Switches are pre-labeled (or blank for custom labeling)
- Internal bus bar consolidates wiring — one positive feed and one negative feed to the panel, then individual output wires to each accessory
- Backlit switches for night visibility
- Compact, professional appearance
- Easier to install than individual switches
Circuit Breaker Panels
Replaces fuses with resettable circuit breakers. Each circuit has its own breaker that trips on overload and can be reset with a button push — no fuse replacement needed. More expensive than fuse-based panels but convenient for frequently-used circuits. Common on larger cruising boats and commercial vessels.
Digital Switching Systems
Advanced systems (e.g., Garmin OneHelm, Victron, Blue Sea Systems 360 Panel) that control circuits via software, touchscreen, or network commands. Offer load monitoring, circuit protection, and integration with NMEA 2000 networks. Premium price; best suited for larger vessels with complex electrical systems.
Step 1: Count Your Circuits
Before choosing a panel, list every circuit you need to control from the helm. Common circuits on a typical fishing or day boat:
| Circuit | Notes |
|---|---|
| Navigation lights | Required; often combined (running lights) |
| Anchor light | Separate from nav lights |
| Bilge pump (Manual) | Auto circuit is always-on; manual switch at helm |
| Fishfinder / Chartplotter | May need 2 circuits for dual displays |
| VHF Radio | Fixed-mount radio |
| Livewell pump | Fishing boats |
| Aerator / recirculation pump | Fishing boats |
| Cabin / courtesy lights | Interior lighting |
| Spreader / deck lights | Night operations |
| Searchlight | If installed |
| Horn | Required safety equipment |
| Accessory / spare | Always add 2–3 spare circuits |
Add 2–3 spare circuits to your count for future accessories. It's far easier to wire spare circuits now than to add them later.
Step 2: Choose Panel Features
Backlit Switches
Backlit rocker switches illuminate when the circuit is on, giving you instant visual confirmation of what's running. Essential for night operation. Most quality marine panels include backlit switches as standard. Look for panels where the backlight color is consistent and the labels are legible in both daylight and darkness.
Integrated Fuse Protection
Some panels include a fuse for each circuit built into the panel. Others rely on an external fuse block. Both approaches work — integrated fuses are more compact; external fuse blocks are easier to access for fuse replacement and allow more flexibility in fuse sizing per circuit.
Voltmeter / Ammeter
Many panels include a built-in voltmeter to display battery voltage. Useful for a quick battery health check at the helm. A dedicated battery monitor provides more detailed information, but a panel voltmeter is a convenient supplement.
Waterproofing
The switch panel face will be exposed to spray, rain, and humidity. Look for panels rated IP66 or better for the face. The back of the panel (where the wiring connects) is typically in a protected space but should still use waterproof connectors.
Panel Material
- ABS plastic: Lightweight, UV-resistant, most common on recreational boat panels
- Aluminum: More durable, professional appearance, common on commercial and high-end recreational installations
- Stainless steel: Maximum durability and corrosion resistance; premium cost
Step 3: Plan the Wiring Layout
A pre-wired switch panel simplifies installation significantly. The basic wiring architecture:
- One positive feed wire from the fuse block (or battery bus) to the panel's positive bus bar input. This wire must be fused close to the power source — size the fuse for the total combined load of all circuits.
- One negative feed wire from the panel's negative bus bar to the main negative bus bar.
- Individual output wires from each switch terminal to the corresponding accessory (positive wire only — the negative returns directly from the accessory to the negative bus bar).
This "star" wiring topology — where every circuit runs back to a central bus — is the ABYC-recommended approach and makes troubleshooting straightforward.
Step 4: Size the Feed Wire
The feed wire to the panel must carry the total combined load of all circuits that could run simultaneously. Add up the maximum current draw of all circuits and size the wire accordingly:
| Total Combined Load | Feed Wire Gauge | Fuse Size |
|---|---|---|
| Up to 20A | 12 AWG | 20A |
| Up to 30A | 10 AWG | 30A |
| Up to 50A | 8 AWG | 50A |
| Up to 70A | 6 AWG | 70A |
In practice, not all circuits run simultaneously — but size for the realistic worst case (nav lights + fishfinder + VHF + livewell + bilge pump all running at once).
Step 5: Install the Panel
- Choose a helm location that's visible and accessible from the helm seat, protected from direct spray where possible
- Use the panel's mounting template to mark the cutout dimensions
- Cut the mounting hole with a jigsaw — apply masking tape first to protect the dash surface
- Test-fit the panel before wiring
- Run the positive feed wire from the fuse block to the panel's positive bus input, with a fuse within 7 inches of the power source
- Run the negative feed wire from the panel's negative bus to the main negative bus bar
- Run individual output wires from each switch terminal to the corresponding accessory
- Run individual negative wires from each accessory back to the main negative bus bar (not to the panel's negative bus — the panel negative bus is for the panel's internal loads only)
- Secure the panel in the cutout with the provided hardware
Step 6: Label Every Switch
Clear, permanent labeling is essential. Options:
- Engraved labels: Most durable; common on aluminum panels
- Printed label inserts: Many plastic panels include blank label windows — print labels on a laser printer and insert them
- Dymo/label maker tape: Quick and easy; less durable in UV and moisture
- Engraving pen: For custom labeling on blank switch faces
Use consistent abbreviations and keep labels short —Nav Lights, Anchor, Bilge, FF/Chart, VHF, Livewell, Aerator, Cabin, Deck, Search, Horn, Spare 1, Spare 2.
Step 7: Test Every Circuit
- With all wiring complete, connect to the battery and power on the panel
- Switch each circuit on individually and verify the corresponding accessory operates
- Verify the switch indicator light illuminates when the circuit is on
- Check for any warm wires or connectors after 5 minutes of operation
- Test the bilge pump manual switch — confirm the pump runs
- Test nav lights — walk around the boat and confirm all lights illuminate correctly
Common Mistakes to Avoid
- Undersized feed wire: The feed wire must handle the total panel load. Undersizing causes voltage drop and heat.
- No fuse on the feed wire: The feed wire from the battery to the panel must be fused close to the battery. Without it, a short in the feed wire can cause a fire.
- Routing accessory negatives through the panel: Accessory negatives should return directly to the main negative bus bar, not through the panel. Running all negatives through the panel overloads the panel's negative bus and creates voltage drop.
- Using automotive wire: Always use marine-grade tinned copper wire in a boat.
- Unlabeled switches: An unlabeled panel is a safety hazard in an emergency. Label every switch before the boat leaves the dock.
