Airmar  |  SKU: EM-73082  |  Barcode: 801769000177

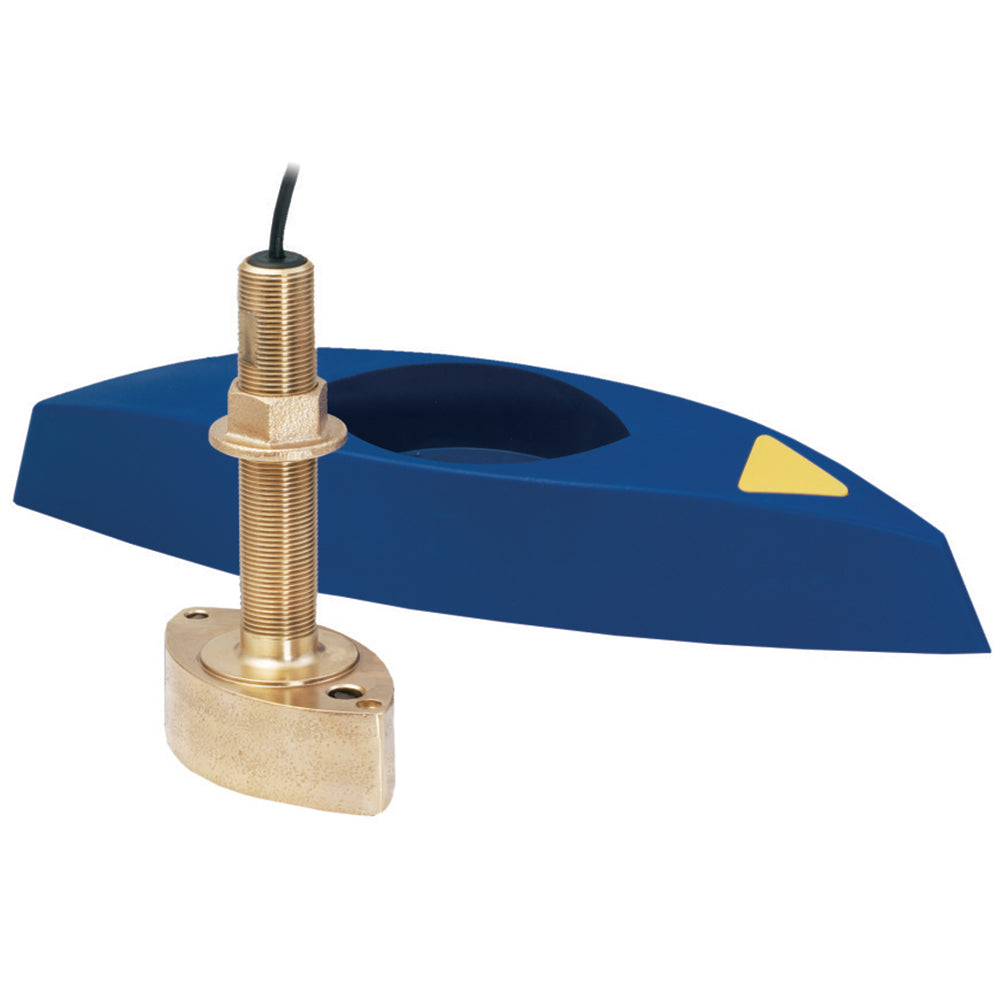

Airmar B45-DT-HB 600W Thru-Hull Transducer w/Fairing Block Humminbird #9 Connector [B45-DT-HB]

$441.45 $489.99

Refund & Return Policy

Returns are accepted within 30 days after shipment. To be eligible for a return, items must be unused, uninstalled, and in their original packaging, and proof of purchase is required. Installed or used products, clearance or final-sale items are not eligible for return. Return Merchandise Authorization (RMA) numbers are required for all returns. Learn more.

Shipping Policy

Egret Marine ships marine parts and accessories within the continental United States only. Orders are processed same day if placed before 3pm CST. or within 1 business days if placed after 3pm CST, excluding weekends and holidays. Learn more.

Description

B45-DT-HB 600W Thru-Hull Transducer w/Fairing Block & Humminbird #9 Connector

The B45 is our smallest and most economical, dual-frequency, bronze, stem transducer. Its streamlined shape and High Performance fairing block deflects aerated water from the transducer's face for strong return echoes and clear display images.

Features:

  • Bronze housing
  • Depth and Temperature
  • Recommended for planing-hull powerboats and cruising sailboats up to 9 m (30’)
  • Good sensitivity in a compact housing
  • Fast-response water-temperature sensor provides ±0.2°C (±0.1°F)
  • High-Performance Fairing included
  • Usable Shaft Length: 92 mm (3.62”)
  • Standard fairing block
  • Frequency: 50/200 kHz
  • Maximum Depth Range:
  • 50 kHz—235 m to 353 m (800’ to 1,200’)
  • 200 kHz—118 m to 206 m (400’ to 700’)
  • Cone: 50 kHz—45°, 200 kHz—12°
  • RMS Power: 600 W
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

  • Mounting Style: Thru-Hull
  • Box Dimensions: 4"H x 12"W x 16"L WT: 4.6 lbs
  • UPC: 801769000177

Brochure (pdf)
