Blue Sea 5045 ST Blade Compact Fuse Blocks - 4 Circuits w/Cover [5045]

Name: Blue Sea 5045 ST Blade Compact Fuse Blocks - 4 Circuits w/Cover [5045]
Brand: Blue Sea Systems
SKU: EM-58585
Price: 27.99 USD
Availability: InStock

$27.99 $42.99

Refund & Return Policy

Returns are accepted within 30 days after shipment. To be eligible for a return, items must be unused, uninstalled, and in their original packaging, and proof of purchase is required. Installed or used products, clearance or final-sale items are not eligible for return. Return Merchandise Authorization (RMA) numbers are required for all returns. Learn more.

Shipping Policy

Egret Marine ships marine parts and accessories within the continental United States only. Orders are processed same day if placed before 3pm CST. or within 1 business days if placed after 3pm CST, excluding weekends and holidays. Learn more.

Description

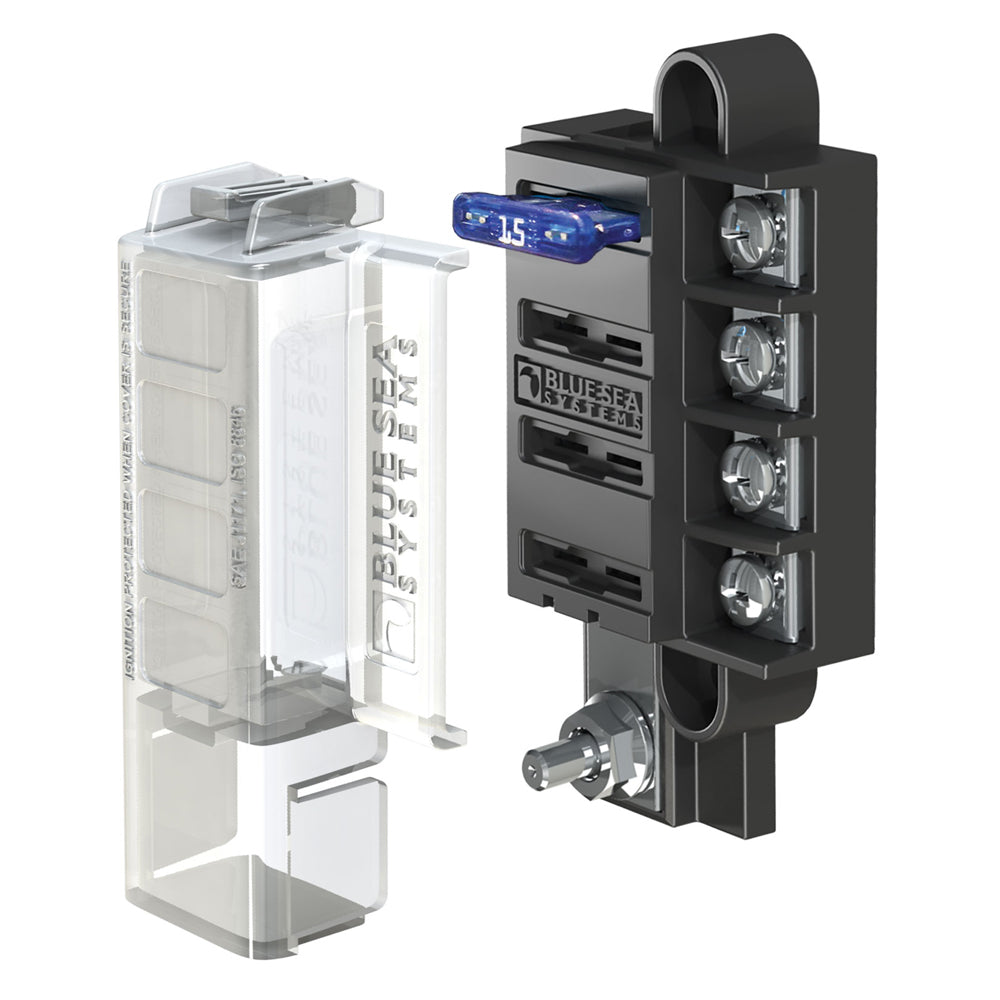

ST Blade Compact Fuse Blocks - 4 Circuits w/Cover

Provides surface mount circuit protection for ATO®/ATC® Fuses in a compact footprint. The single side design allows wire entry from one side to maximize space.

Compact common source fuse block
Accepts ATO® and ATC® fast acting blade fuses
Single side entry wiring
Ignition Protected-meets ISO 8846 and SAE J1171 for use in a gasoline engine compartment
Insulating cover meets ABYC/USCG insulation requirements
Tin-plated copper buses and fuse clips
Accepts ring or snap fork type terminals
Small format standard and custom labels available

Specifications

Circuits:4
Maximum Amperage: 100A per block / 30A per circuit
Maximum Voltage:32V DC
Mounting: #8 Screw (M4)
Screw Terminal Torque:#8-32 Screws with captive star lock washer in-lb (0 Nm)
