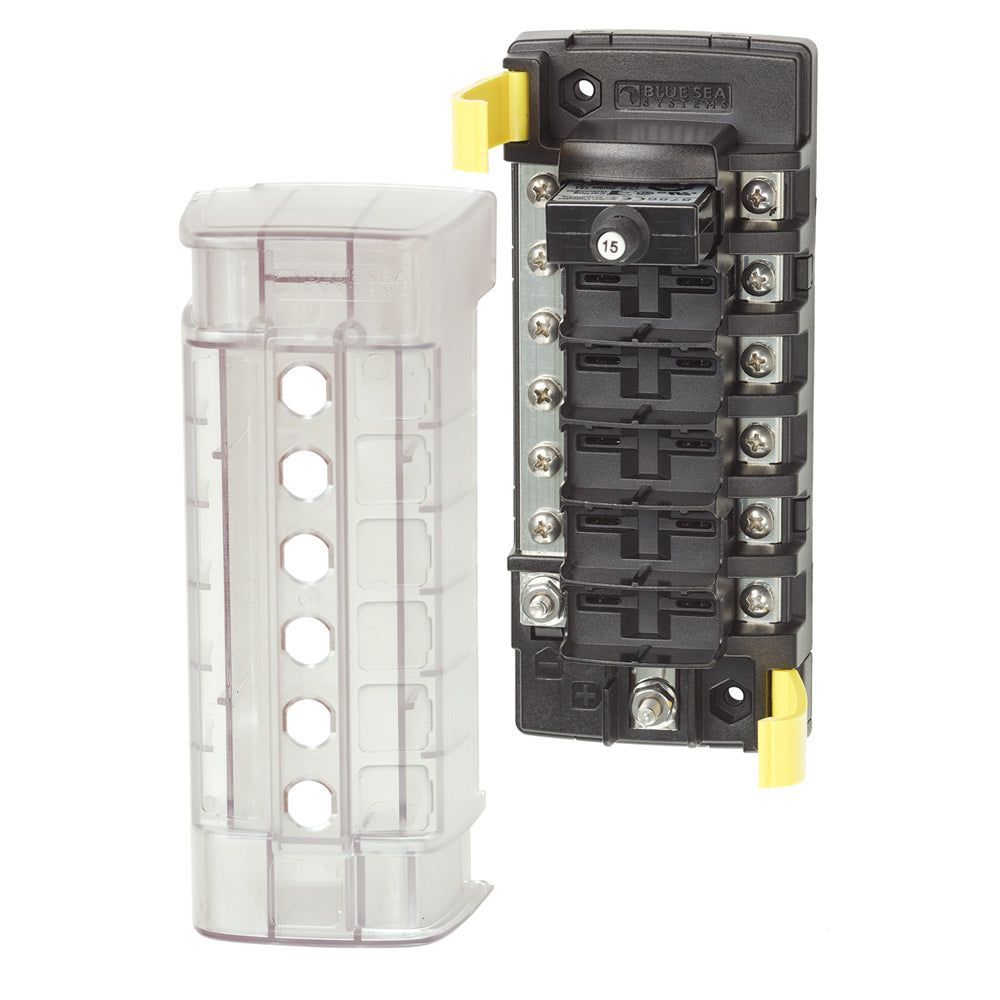

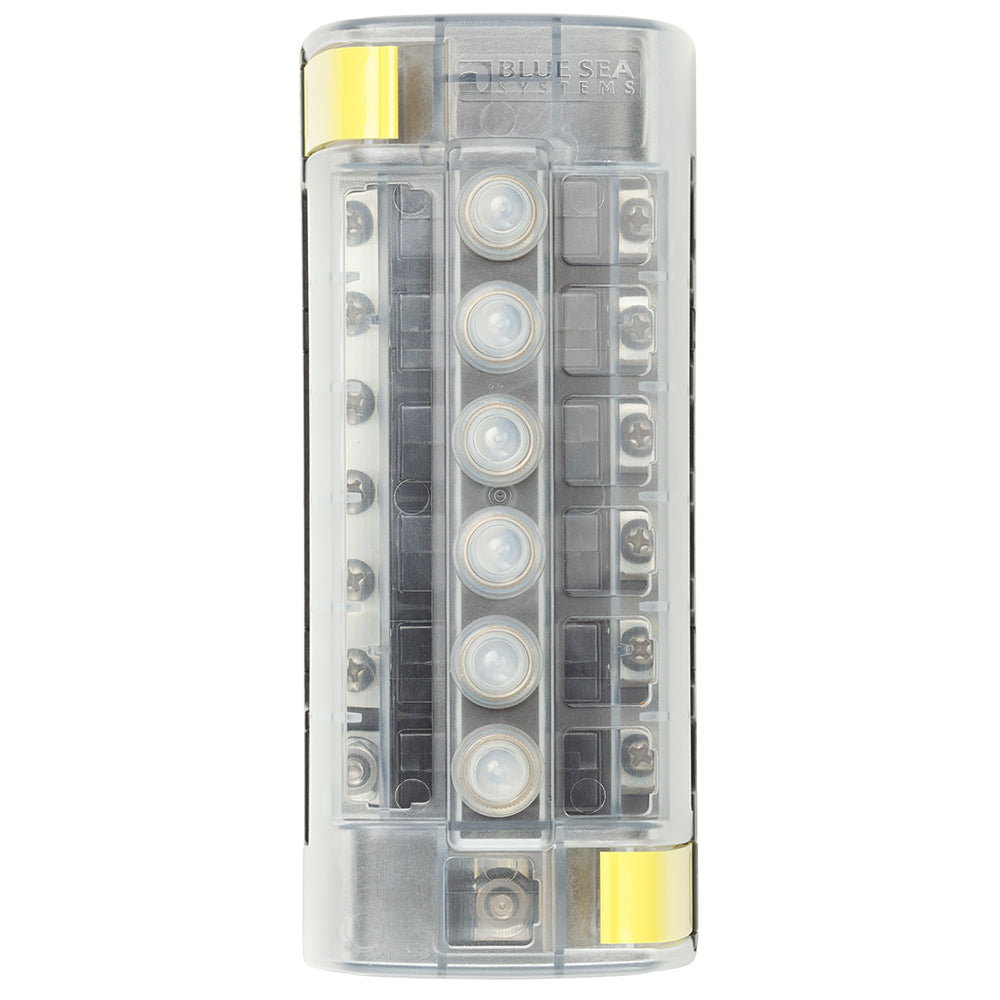

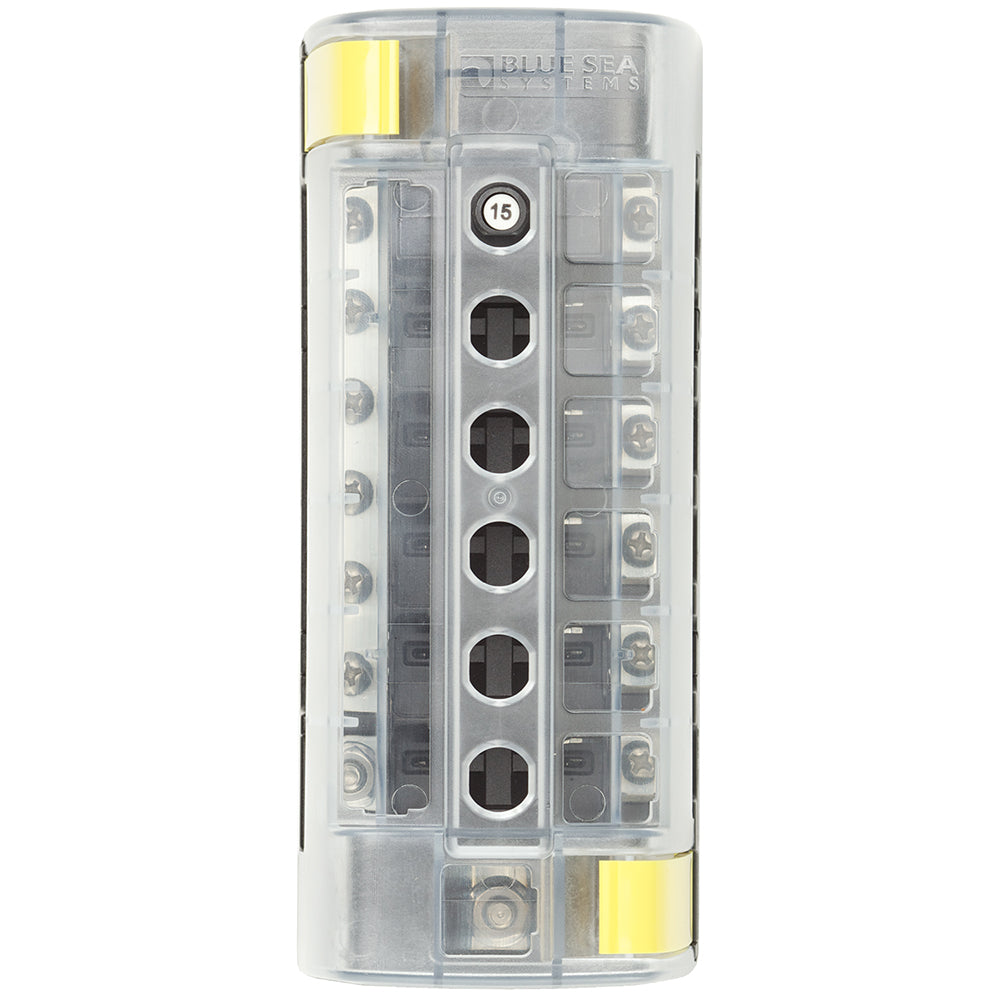

Blue Sea 5052 ST CLB Circuit Breaker Block - 6 Position w/Negative Bus [5052]

Name: Blue Sea 5052 ST CLB Circuit Breaker Block - 6 Position w/Negative Bus [5052]
Brand: Blue Sea Systems
SKU: EM-51811
Price: 70.99 USD
Availability: InStock

$70.99 $105.99

Refund & Return Policy

Returns are accepted within 30 days after shipment. To be eligible for a return, items must be unused, uninstalled, and in their original packaging, and proof of purchase is required. Installed or used products, clearance or final-sale items are not eligible for return. Return Merchandise Authorization (RMA) numbers are required for all returns. Learn more.

Shipping Policy

Egret Marine ships marine parts and accessories within the continental United States only. Orders are processed same day if placed before 3pm CST. or within 1 business days if placed after 3pm CST, excluding weekends and holidays. Learn more.

Description

ST CLB Circuit Breaker Block - 6 Position w/Negative Bus

Features

Quick connect clips allow circuit breakers to snap easily into place
Tin-plated copper busses and screw terminals
Clear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirements
Easy to open clip on cover
Breakouts allow wire access in two directions
Accepts ring terminals
Optional push button waterproof boots or dress nuts can be installed over cover

Specifications:
Circuits: 6
Maximum Amperage: 100A (per block) 32A (per circuit)
Maximum Voltage: 32V DC
Mounting: #8 Screw (M4) or #8 Nut
Negative Bus: Yes
Source: Common SourceMinimum Operating Temperature: -10° C
Maximum Operating Temperature: 60° C
Mounting Centers: 5.63"(143 mm)
Screw Terminal Type: #8-32 Screws with Captive Star Lock Washer
Height: 6.69"(169.93 mm)
Weight: 0.75lb (0.34 kg)
