Johnson Pump  |  SKU: EM-38955  |  Barcode: 729321160049

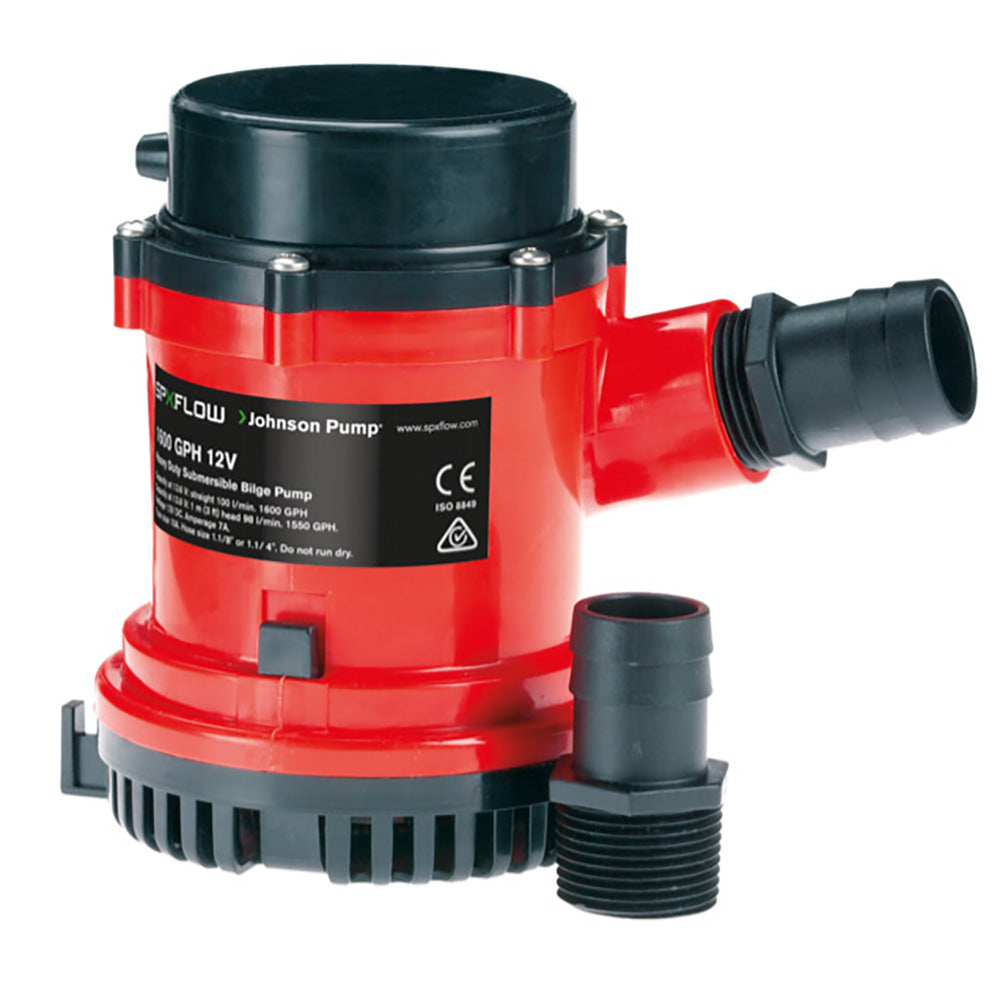

Johnson Pump 1600 GPH Bilge Pump 1-1/8" Hose 12V [16004-00]

Sale price $125.99 Regular price $181.49

SHIPS SAME DAY BEFORE 3PM CST! Shipping Policy


Refund & Return Policy

Returns are accepted within 30 days after shipment. To be eligible for a return, items must be unused, uninstalled, and in their original packaging, and proof of purchase is required. The following items are not eligible for return: Installed or used products, clearance or final-sale items, trolling motors, programmed AIS units, KVH Starlink products that are registered or opened, special-order products, or products displaying the notice “This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.” in their description. Opened or unsealed DVDs, CDs, or cartography (unless defective) are not eligible for return. Return Merchandise Authorization (RMA) numbers are required for all returns. Learn more.

Shipping Policy

Egret Marine ships marine parts and accessories within the contiguous United States only. Orders are typically processed same day if placed before 3pm CST, excluding weekends and holidays. Learn more.

Product Details

Heavy Duty Bilge Pump 1600 series 12v:
The best choice when you are looking for high performance, heavy duty pumps
designed to meet and exceed the tough demands of commercial and recreational duty. This pump has a liquid cooled, 12-pole motor with double ball bearings for extended service life. The 2200 motor is sealed off by a mechanical seal design, while the 1600 model has lipseal. The impeller is carefully designed and tested to maximize head and flow. The 4000 features a robust motor design, mechanical shaft seal, high impact ABS plastic and unique threaded port design. Universal base plate and a choice of 1-1/2" or 2" ports makes for a simple installation. Removable check valve included.
CE-Approved

Features:

  • Heavy duty, 12-pole double ball bearing motor
  • Liquid cooled for extended motor life
  • Quality engineered mechanical/lip seal
  • ISO 8849 Marine and CE standards
  • Easily interchangeable with most similar bilge pumps
  • Pump body: Thermoplastic
  • Shaft seal: Mechanical seal
  • Shaft: Stainless steel (SS2343)
  • Voltage: 12 V
  • Capacity 1.0 m head (13.6 V/27 V): 98 l/min - 1550 GPH
  • Capacity straight (13.6 V/27 V): 100 l/min - 1600 GPH
  • Amperage: 7 A
  • Fuse Size: 10 A
  • Connection: 1-1/8" and 1-1/4"
  • Shaft: SS2343
  • Wire size: 1.3 mm2 - 16 GA
  • Max height 149 mm - 5.86"
  • Weight 1.3 kg - 2.75 lbs

Specifications:

  • Gallons Per Hour: 1600 GPH
  • Operation: Non-Automatic
  • Outlet Size: 1-1/8"
  • Volts: 12v
  • Type: Electric
  • Box Dimensions: 5"H x 6"W x 6"L WT: 3.4 lbs
  • UPC: 729321160049
