Maretron  |  SKU: EM-47023  |  Barcode: 873804003030

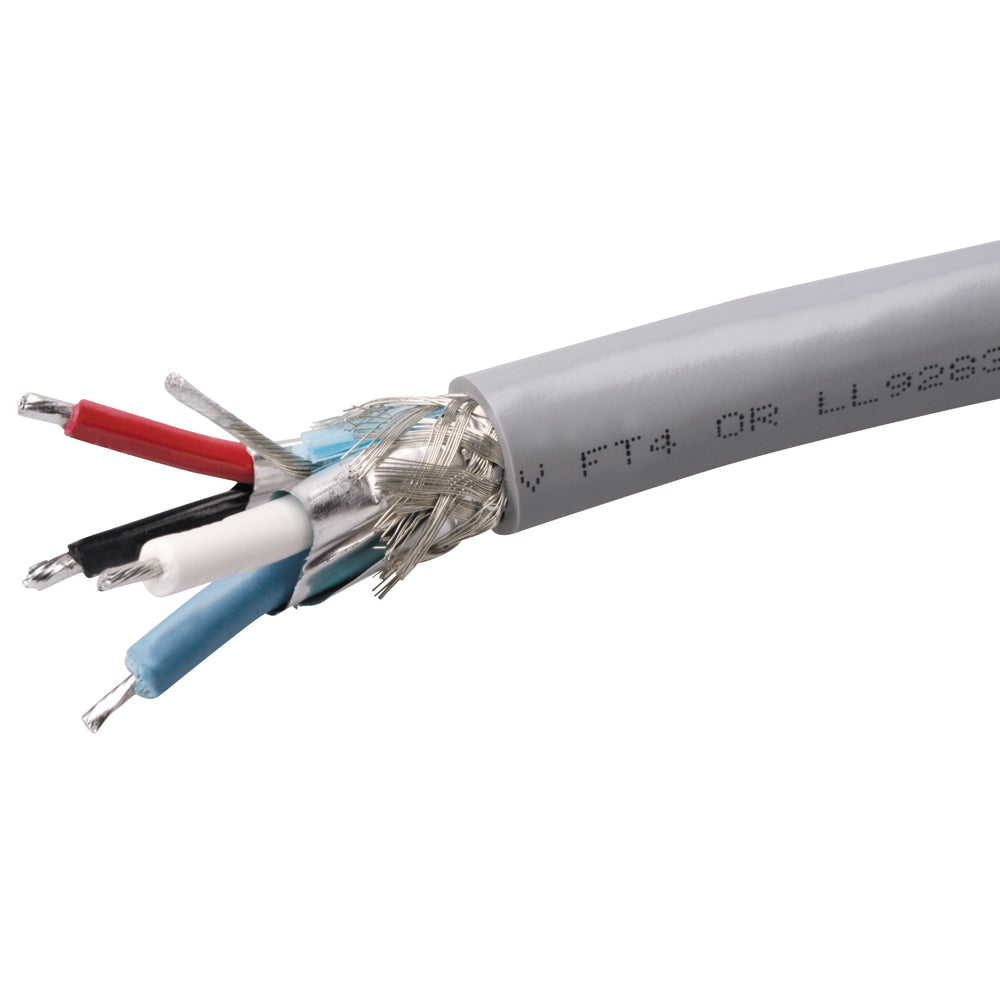

Maretron Mid Bulk Cable - 100 Meter - Gray [DG1-100C]

$501.99 $545.00

Refund & Return Policy

Returns are accepted within 30 days after shipment. To be eligible for a return, items must be unused, uninstalled, and in their original packaging, and proof of purchase is required. Installed or used products, clearance or final-sale items are not eligible for return. Return Merchandise Authorization (RMA) numbers are required for all returns. Learn more.

Shipping Policy

Egret Marine ships marine parts and accessories within the continental United States only. Orders are processed same day if placed before 3pm CST. or within 1 business days if placed after 3pm CST, excluding weekends and holidays. Learn more.

Description

Specifications

Overall

  • Outer Jacket Mat/Color: PVC/Gray - DG1 PVC/Blue - DB1
  • Insulation Material: PE (data wires), PVC (power wires)
  • Construction: 2x16 (1.29mm) AWG, 2x20 (0.81mm) AWG, 20 (0.81mm) AWG Drain Wire
  • Shielding (3 levels): Foil (overall), Foil (power pair), Foil (data pair)

    Power Pair
  • Wire: 2x16 (1.29mm) AWG
  • Resistance/Conductor: 4.1 Ohms/1000 ft max
  • Max Amperage: 14 Amps
  • Color Code: Red/Black

    Data Pair
  • Wire: 2x20 (0.81mm) (AWG)
  • Characteristic Impedance: 120 Ohms +/- 10%
  • Capacitance: 10.75 pF/ft
  • Color Code: White/Blue

    Approvals
  • UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V
  • CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80 deg C 300V FT4
  • NMEA: NMEA 2000 Approved
  • IEC: IEC-61162-3

    Specifications:

    • Data Interface: NMEA 2000
    • Cable Length (Meters): 100m
    • Box Dimensions: 11"H x 12"W x 12"L WT: 25 lbs
    • UPC: 873804003030
