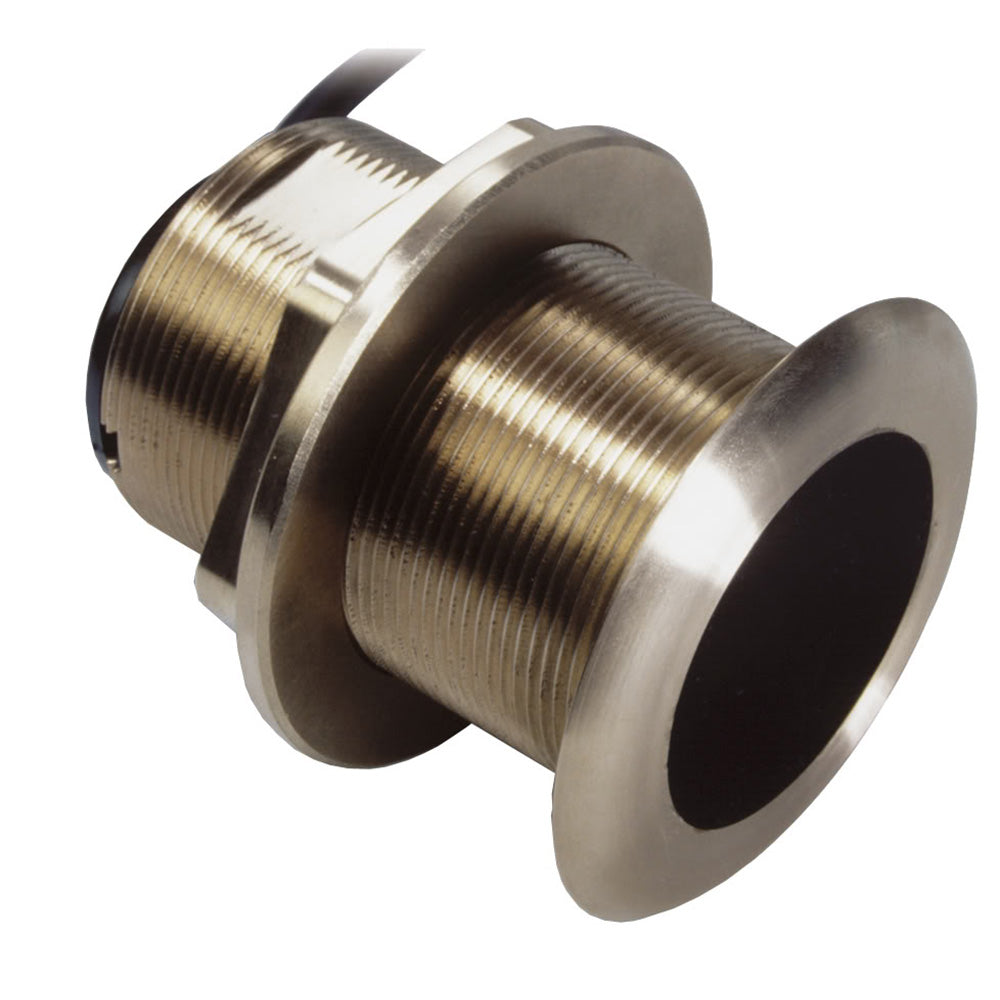

Navico B60 Thru Hull Transducer 12 Tilt, 9-Pin Xsonic Connector, Depth Temperature [B60-12-9N]

Name: Navico B60 Thru Hull Transducer 12 Tilt, 9-Pin Xsonic Connector, Depth Temperature [B60-12-9N]
Brand: Airmar
SKU: EM-94347
Price: 389.00 USD
Availability: InStock

$389.00 $429.99

Refund & Return Policy

Returns are accepted within 30 days after shipment. To be eligible for a return, items must be unused, uninstalled, and in their original packaging, and proof of purchase is required. Installed or used products, clearance or final-sale items are not eligible for return. Return Merchandise Authorization (RMA) numbers are required for all returns. Learn more.

Shipping Policy

Egret Marine ships marine parts and accessories within the continental United States only. Orders are typically processed same day if placed before 3pm CST. or within 1 business days if placed after 3pm CST, excluding weekends and holidays. Learn more.

Description

B60 Thru Hull Transducer 12° Tilt, 9-Pin Xsonic Connector, Depth & Temperature

The B60 is a 600 W, 50/200 kHz transducer that integrates Airmar’s popular, Tilted Element™ feature. This Tilted Element transducer has the ceramic element fixed at either a 12° angle within the housing. When the transducer is installed almost flush with the hull, the tilt of the element corrects for the hull deadrise angle. By orienting the beam directly down, it ensures maximum echo returns to the transducer for more-accurate depth

Features:

The depth and fast-response water temperature sensing
600 W of power
Dual-frequency element: 50 kHz with a wide 45° beamwidth for depth performance to 353 m (1200') and 200 kHz with a 12° beamwidth for depth performance to 206 m (700')
Perfect for center-console or trailered boats
Low-profile bronze housing extends only 5 mm (3/16") outside the hull
No effect on your boat’s running performance
Bronze housing for fiberglass or wood hull
Fixed 12° tilted version for 8 to 15° hull deadrise angles
Cable-Length: 10 m (33')
Hole Size: 60 mm (2-3/8")
Usable Shaft Length: 68.5 mm (2.70")
Connector: Simrad 9-Pin, Lowrance 9-Pin, Navico 9-Pin
