Octopus Autopilot Drives  |  SKU: EM-58841  |  Barcode: 628309201616

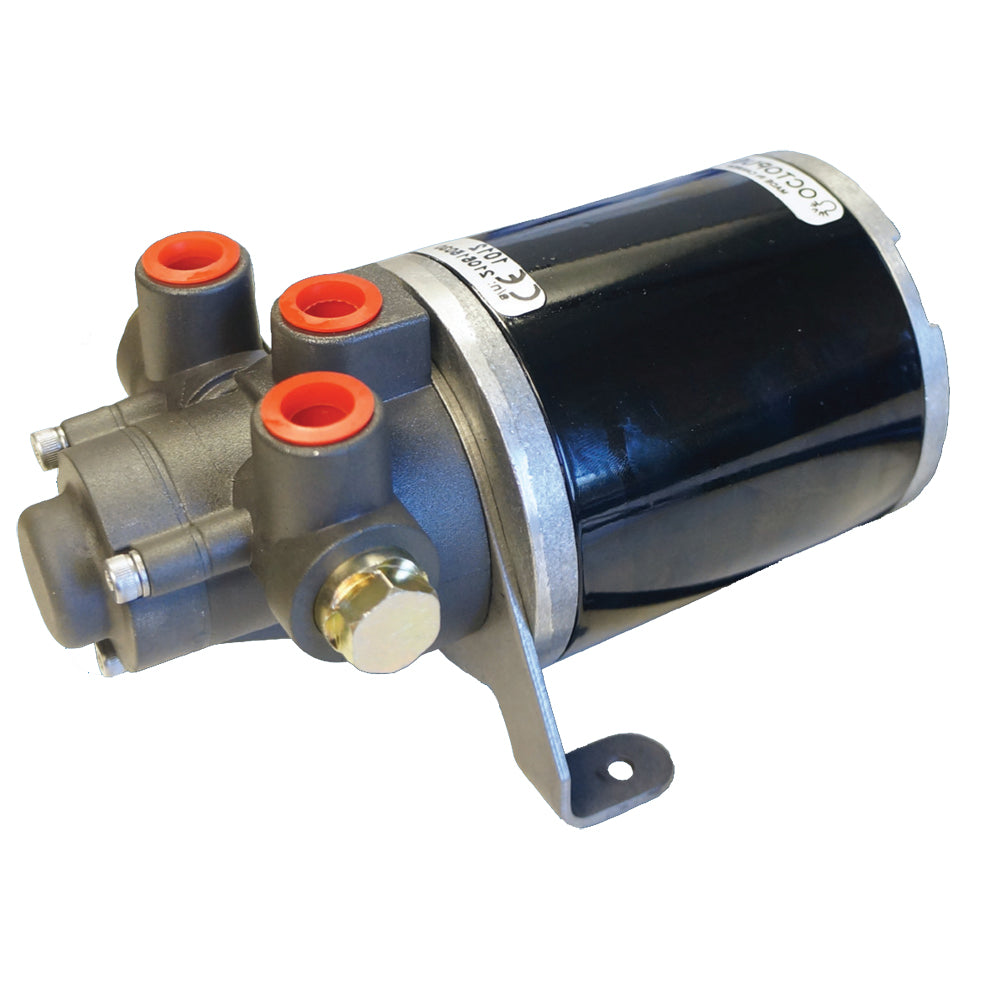

Octopus Hydraulic Gear Pump 12V 16-24CI Cylinder [OCTAFG1612]

Sale price $709.99 Regular price $891.78

SHIPS SAME DAY BEFORE 3PM CST! Shipping Policy


Refund & Return Policy

Returns are accepted within 30 days after shipment. To be eligible for a return, items must be unused, uninstalled, and in their original packaging, and proof of purchase is required. The following items are not eligible for return: Installed or used products, clearance or final-sale items, trolling motors, programmed AIS units, KVH Starlink products that are registered or opened, special-order products, or products displaying the notice “This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.” in their description. Opened or unsealed DVDs, CDs, or cartography (unless defective) are not eligible for return. Return Merchandise Authorization (RMA) numbers are required for all returns. Learn more.

Shipping Policy

Egret Marine ships marine parts and accessories within the contiguous United States only. Orders are typically processed same day if placed before 3pm CST, excluding weekends and holidays. Learn more.

Product Details

Hydraulic Gear Pump 12V 16-24CI Cylinder

From the design team that brought you the legendary Octopus hydraulic
drives, our new gear pump offers industry leading reliability and
performance in a smaller, lighter, quieter package.

Features:

  • Industry leading efficiency - lower power consumption, particularly
    under demanding conditions requiring higher flow rates equates to a major
    advantage over competing units.
  • Cost saving - the increased efficiency and performance means the pumps
    can be used with smaller autopilot course computers than equivalent drive
    units.
  • The smaller footprint of the compact gear pump increases installation
    flexibility.
  • Lower noise and vibration make the gear pump particularly suitable for
    sailboat installations.
  • Suitable for balanced or unbalanced cylinders.
  • All models available for both 12v and 24v systems.


Specifications:
  • Flow Rate: 1600CC/min
  • Voltage: 12 Volt
  • Cylinder Range: 16-24ci CYLINDER
  • Average Current Draw: 6.6A
  • Operating Temperature: -15 to +75'C (5 - 167'F)
  • Waterproofing: IP55
  • Ignition Protection: ISO 8846 & SAEJ1171
  • EMC Compliance: EN60945-9-2002

Specifications:

  • Type: Pumps/Drives
  • Box Dimensions: 4"H x 4"W x 10"L WT: 5.1 lbs
  • UPC: 628309201616

Quick Guide (pdf)
