Quick Prince DP2E Windlass - 500W, 12V 7MM Chain to 9/16" Rope [FSDP2E060007A00]

$1,621.99 $1,768.96

SHIPS SAME DAY BEFORE 3PM CST! Shipping Policy

Refund & Return Policy

Returns are accepted within 30 days after shipment. To be eligible for a return, items must be unused, uninstalled, and in their original packaging, and proof of purchase is required. The following items are not eligible for return: Installed or used products, clearance or final-sale items, trolling motors, programmed AIS units, KVH Starlink products that are registered or opened, special-order products, or products displaying the notice “This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.” in their description. Opened or unsealed DVDs, CDs, or cartography (unless defective) are not eligible for return. Return Merchandise Authorization (RMA) numbers are required for all returns. Learn more.

Shipping Policy

Egret Marine ships marine parts and accessories within the contiguous United States only. Orders are typically processed same day if placed before 3pm CST, excluding weekends and holidays. Learn more.
36
13

Product Details

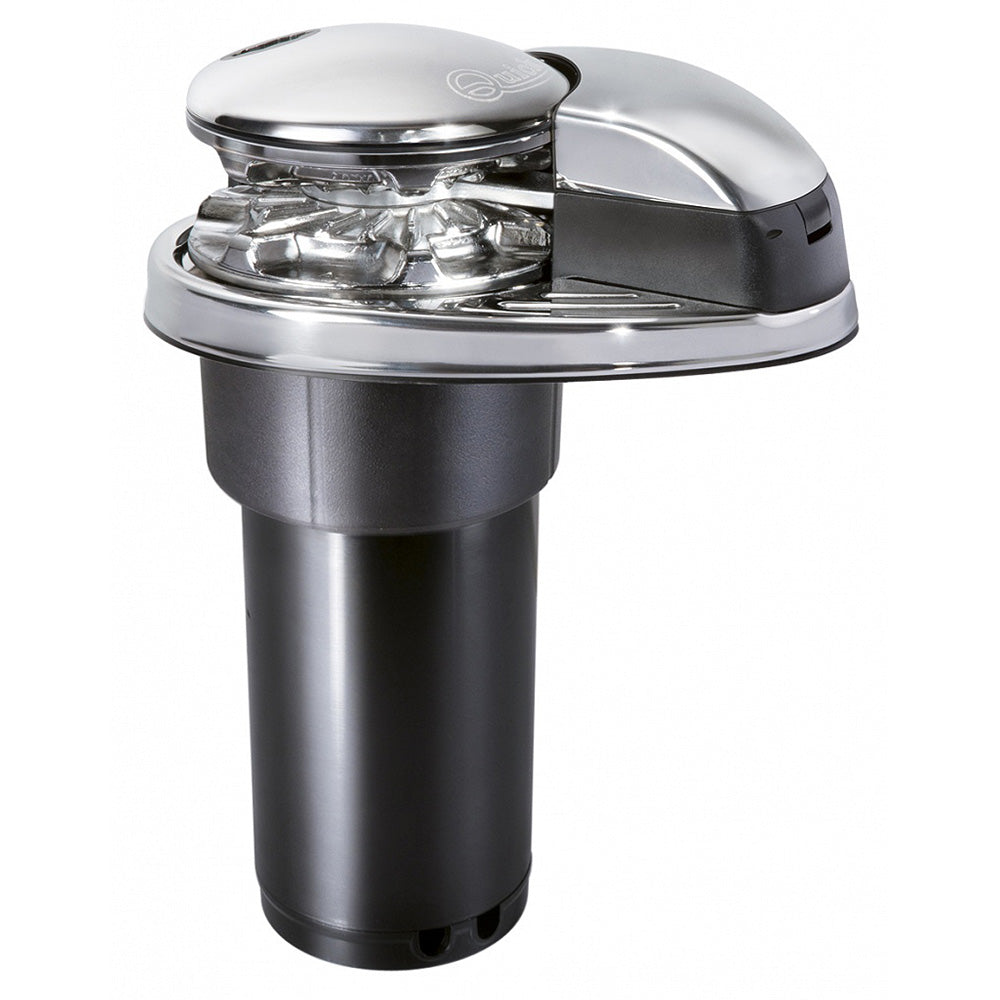

Prince DP2E Windlass - 500W, 12V 7MM Chain to 9/16" Rope

The DP2E is a vertical application windlass perfect for boats with limited deck space. This unit is composed of AISI 316 stainless steel, which is a durable element when dealing with harsh marine environments. Features include an IP67 watertight motor, epicyclical gearbox, inspection lid, and easy drop-in installation. The unit is sold complete with the windlass, solenoid unit, clutch handle, and mounting hardware.

Features:

  • Vertical windlass
  • Includes T6415-12 Solenoid
  • 7mm - 1/4" Gypsy
  • Boats 20- 33 ft
  • Requires 9/16" three-stranded polyester rope
  • Stainless steel AISI 316 base and anodized aluminum in hard oxide.
  • Rope and chain on a single gypsy
  • Integrated sensor and magnet for chain counter
  • Manual Free-Fall system
  • Supplied with pressure lever
  • Inspection lid
  • Motor watertight to IP66
  • Anodized aluminum gearbox

Specifications:

  • Motor power - 500 W
  • Motor supply voltage - 12 V
  • Maximum pull - 620 Kg / 1367 lb
  • Maximum working load - 200 Kg / 441 lb
  • Working load - 65 Kg / 143 lb
  • Current absorption @ working load - 60 A
  • Maximum chain speed - 22,9 m/min / 75.1 ft/min
  • Maximum chain speed @ working load - 18.6 m/min / 61.0 ft/min
  • Weight - 8,3 Kg / 20.9 lb
